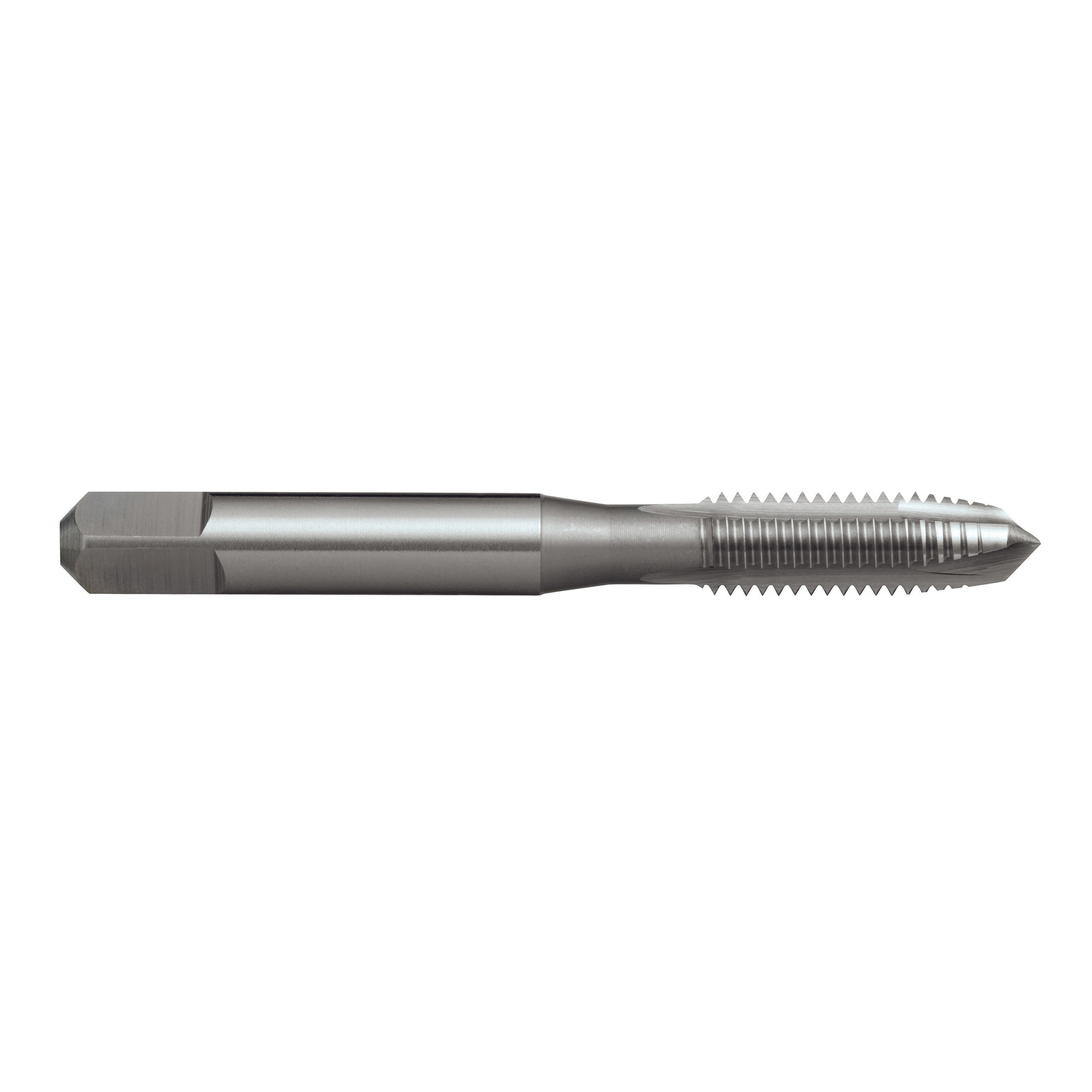

Sutton T3931400 M14 x 2 Spiral Point (Gun) Tap Intermediate - Bright

Description

Features

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

AIMS SKU A0014906

Brand Sutton Tools

Model Number T3931400

Barcode Number 9311963075174

Size (metric) M14 x 2

L1 (mm) 95

Pitch (mm) 2

L2 (mm) 30

z 3

L4 (mm) 12

Sq 9

d1 M14

Drill Diameter 12

D2 11.2

Group Code T393
Type Spiral Point (Gun) Tap
Designation N
System of Measurement Metric
Thread Form M
Material HSSE V3
Finish Bright
Lead Form B / 4.5 x P
Shank Form A
Max Cut Depth 3 x D
Tap Type Spiral Point (Gun)
Chamfer Intermediate
