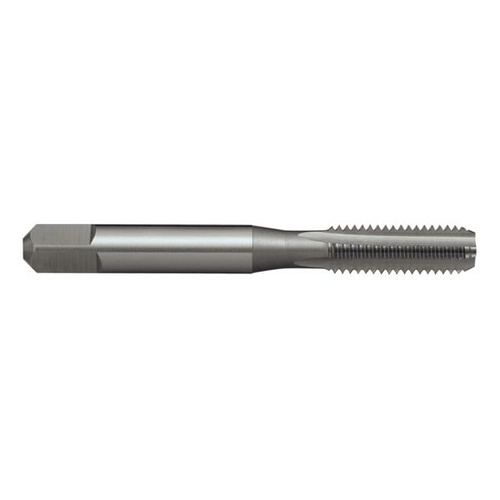

Specifications

AIMS SKU A0014868
Brand Sutton Tools
Model Number T3891800
Barcode Number 9311963433912
Pitch 2.5
d1 M18
l1 112
l2 37
d2 14
sq 11.2
l4 14
z 4
drill ø 15.5
• Group Code T389
• Designation N
• System of Measurement ISO529
• Thread Form ISO Metric Coarse (M)
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Taper
• Application N (for normal general purpose type materials)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance ISO 2 / 6H LH
