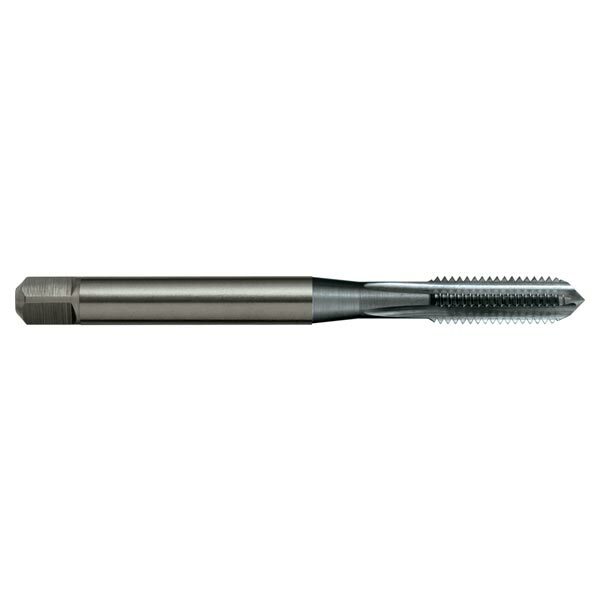

Sutton T3451207 Metric Fine MF12 x 1.5 Straight Flute Tap - Carbide TiCN - Sutton Tools

Description

Features

Use in hardened steels 50-60 HRc
Through & blind holes
Suitable for machine operations
Depths up to approx. 1.5 x d1

Specifications

Designation: VH (for very hard materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN371 / DIN376
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Hardened steel: Hardened & Tempered
Cast Iron: Hardened & Tempered

Specifications

AIMS SKU A0014575

Brand Sutton Tools

Model Number T3451207

Barcode Number 9311963541594

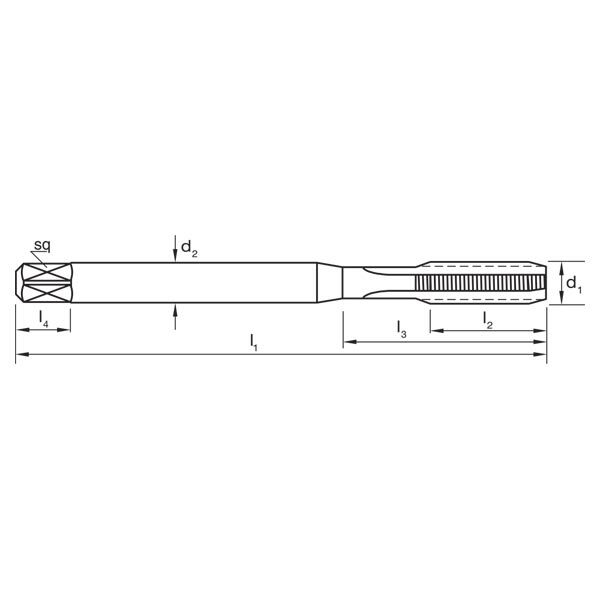

Shank (mm) 9

L1 (mm) 110

L2 (mm) 28

L3 (mm) n/a

z 4

Diameter (metric) MF12

Drill Size (mm) 10.5

L4 (mm) 10

Square Size (mm) 7

Group Code T345
System of Measurement DIN371 / DIN376
Thread Form ISO Metric Fine (MF)
Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Application VH (for very hard materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 1.5xD
Tap Type Straight Flute
Nut Tolerance 6HX
