Specifications
- AIMS SKU A0013207
- Brand Sutton Tools
- Model Number T1582007
- Barcode Number 9311963428437

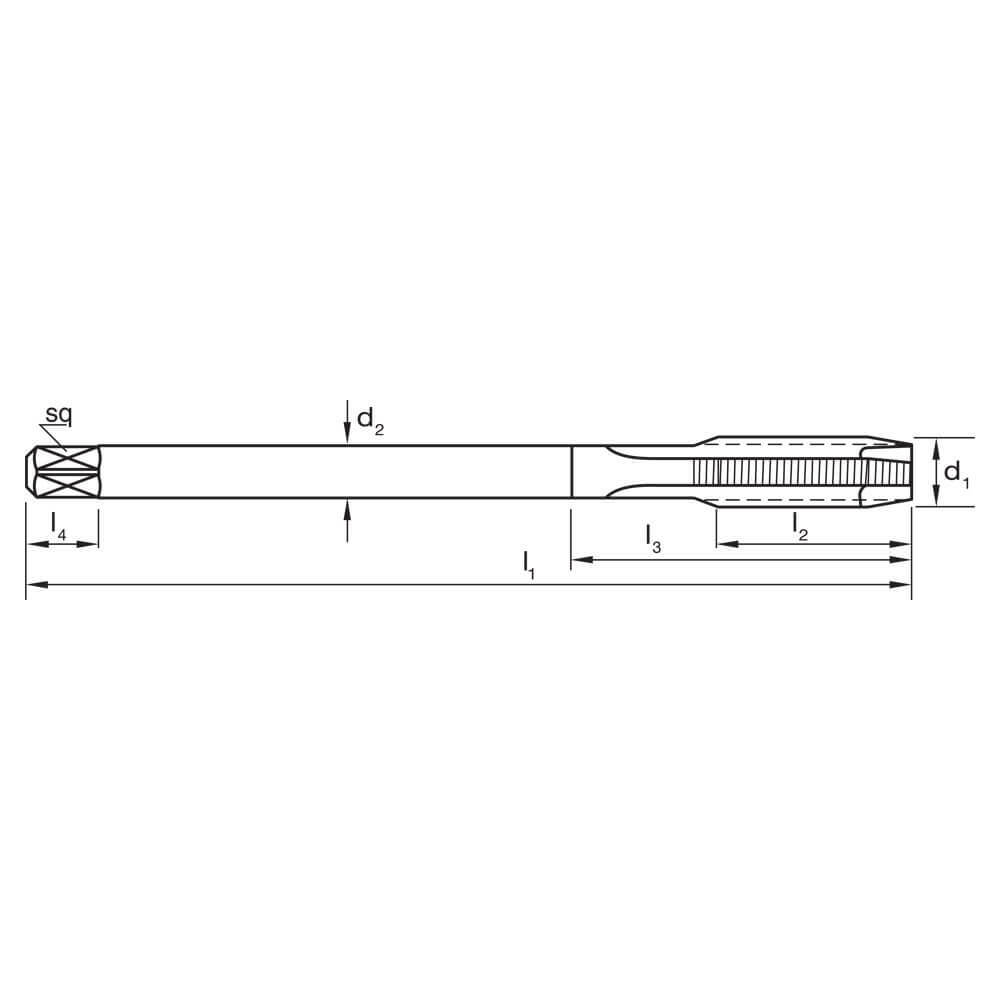

- Shank (mm) 16
- L1 (mm) 125
- Pitch (mm) 1.5
- L2 (mm) 25
- z 4
- Diameter (metric) MF20
- Drill Size (mm) 18.5
- L4 (mm) 15
- Square Size (mm) 12
- Group Code T158
- System of Measurement DIN374
- Thread Form ISO Metric Fine (MF)
- Material Premium Grade High Speed Steel (HSSE-V3)
- Finish Steam Oxide (Blue)
- Lead Form B / 4.5 x P
- Application VA (for stainless and tough steels)
- Shank Form Reduced Shank (with square drive)
- Max Cut Depth 3xD
- Tap Type Spiral Point (Gun)
- Nut Tolerance ISO 2 / 6H
SKU: A0013207

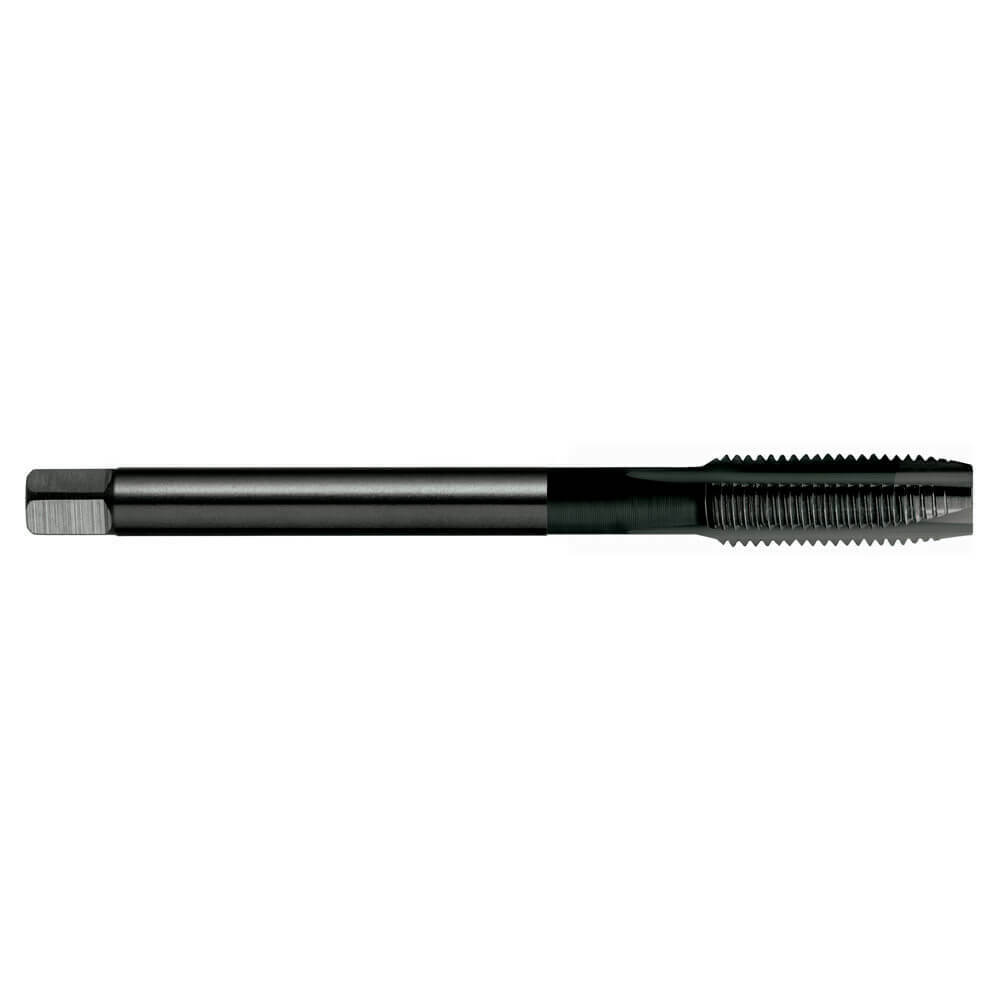

Sutton T1582007 Metric MF20 x 1.5 Spiral Point Tap - HSSE V3 Blue
Suttons Spiral Point (Gun) Taps - VA
$296.87
SAVE $11.88 (4%)
