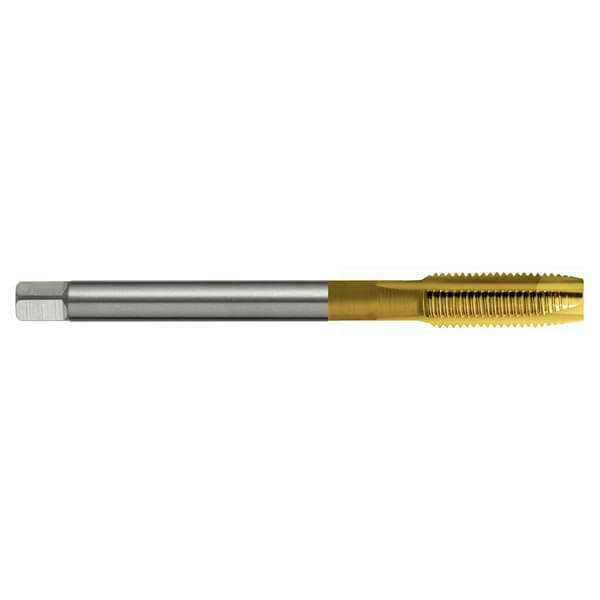

Sutton T1570805 Metric Fine MF8 x 1 Spiral Point Tap - HSSE V3 TiN - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to 3 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Lead: ISO 2 / 6H Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

AIMS SKU A0013179

Brand Sutton Tools

Model Number T1570805

Barcode Number 9311963516301

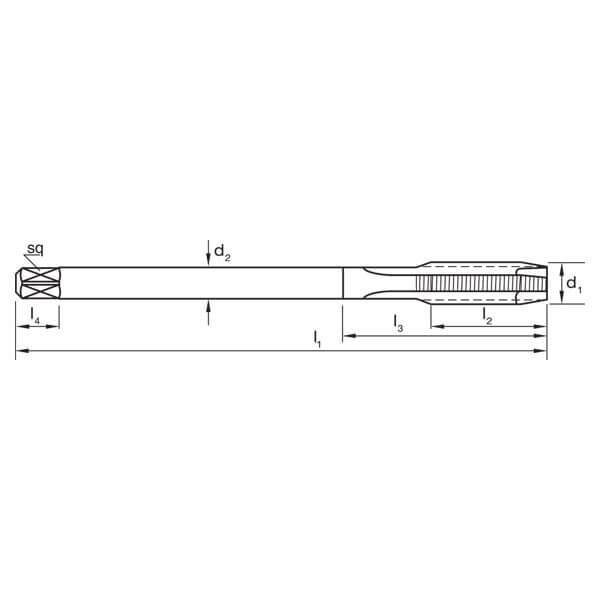

Shank (mm) 6

L1 (mm) 90

Pitch (mm) 1

L2 (mm) 22

z 3

Diameter (metric) MF8-T1570805

Drill Size (mm) 7

L4 (mm) 8

Square Size (mm) 4.9

Group Code T157
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Titanium Nitride (TiN)
Lead ISO 2 / 6H Form B / 4.5 x P
Application N (for normal and general purpose type materials)
Shank Form Reduced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
