Specifications

AIMS SKU A0012805
Brand Sutton Tools
Model Number T1000800
Barcode Number 9311963383682

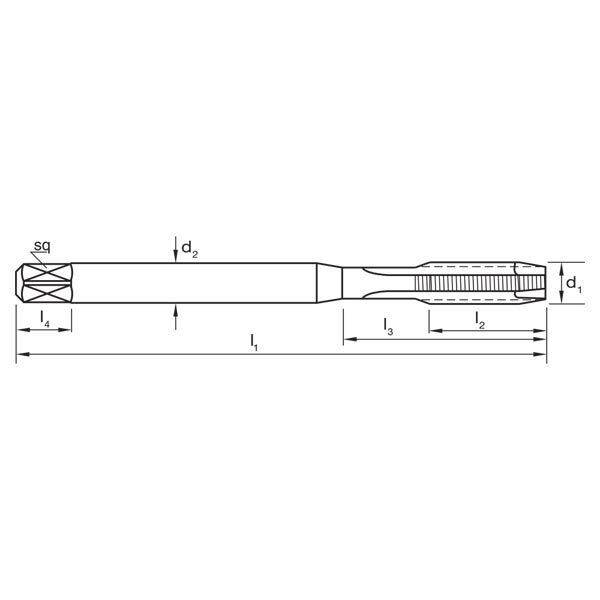

Shank (mm) 8
L1 (mm) 90
L2 (mm) 22
L3 (mm) 35
z 3
Diameter (metric) M8
Drill Size (mm) 6.8
L4 (mm) 9
Sq 6.2
• Group Code T100
• System of Measurement DIN371
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Bright
• Lead Form B / 4.5 x P
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 3xD
• Tap Type Spiral Point (Gun)
• Nut Tolerance ISO 2 / 6H
