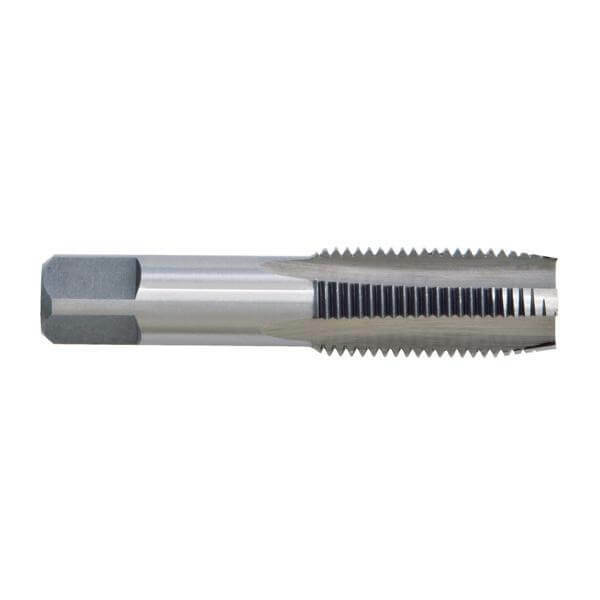

Descriptions

• Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.

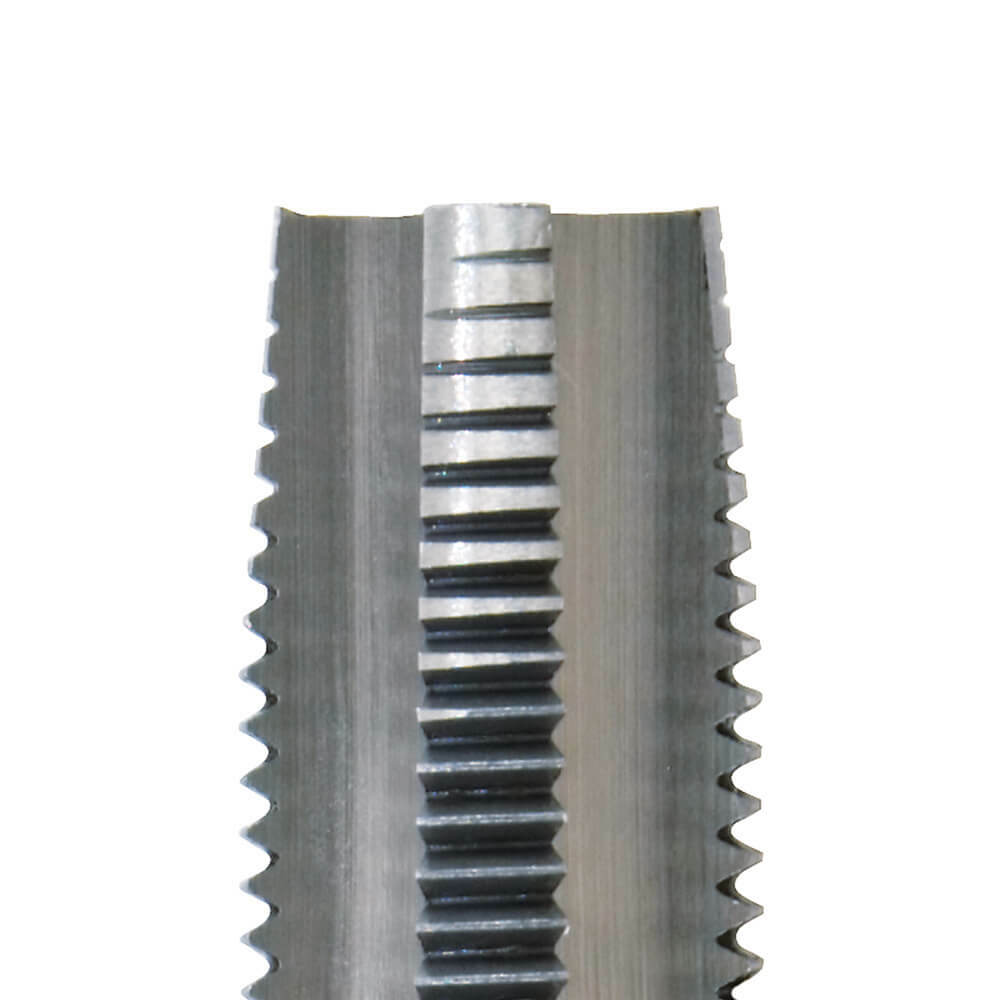

• Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
• Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

• Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
• Intermediate lead: used after a taper lead tap and are suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
• Square shank for use with a suitable tap wrench to drive the tap
• Made from tungsten chrome alloy
• Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Tungsten Chrome Alloy (TCA)
• Finish: Bright
• Max Cut Depth: 1.5xD
• Shank Form: Square Shank
• X: als
• Type: Straight Flute
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Lead: Taper
