Description

Descriptions

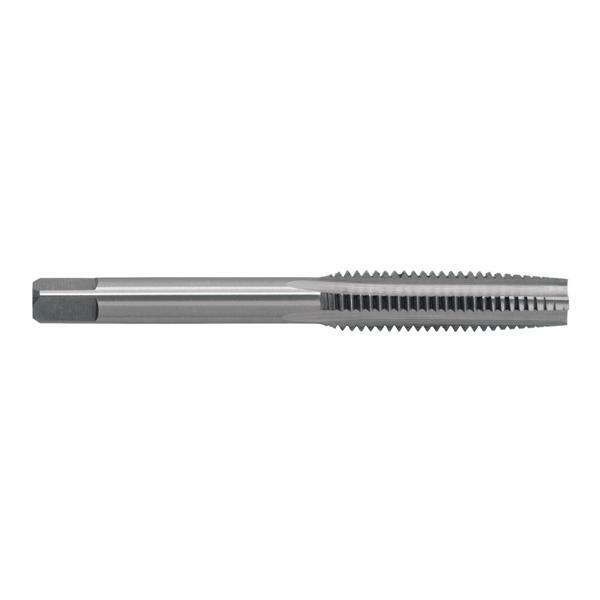

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter

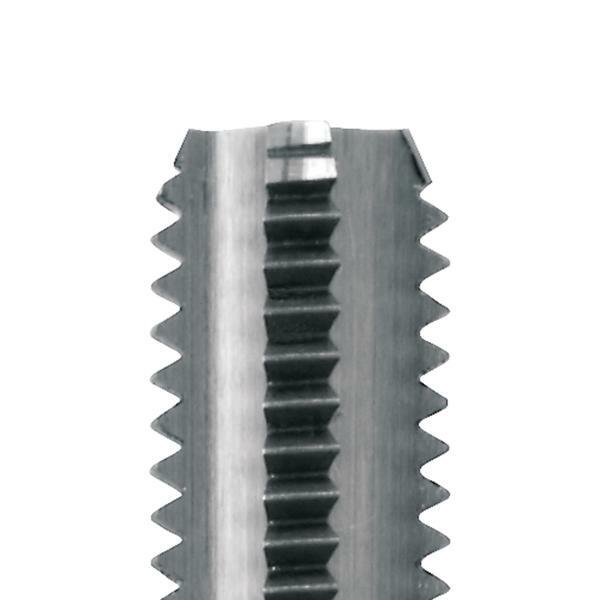

Taper lead: for starting a thread prior to using an intermediate or bottoming lead tap
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: UNF
Lead: Taper

Specifications

AIMS SKU A0011190

Brand Sutton Tools

Model Number M2201588

Barcode Number 9311963018836

Diameter (inch) 5/8

TPI 18

Drill Size (mm) 14.5

Group Code M220
Thread Form UNF
Material Tungsten Chrome Alloy (TCA)
Finish Bright
Lead Taper
Application N (for normal general purpose type materials)
Shank Form Square Shank
Max Cut Depth 1.5xD
Tap Type Straight Flute

Browse other products under

Imperial - Hand Taps

Browse other products by

Sutton Tools

"For my work on building my own antennas for HF/VHF/UHF I have to use the thread that is governed by mobile mounts that are available, using brass rod and sometimes stainless, these taps are the best I have found for cutting the thread that is needed with smooth precise action, I would highly recommend."

- John Carter
