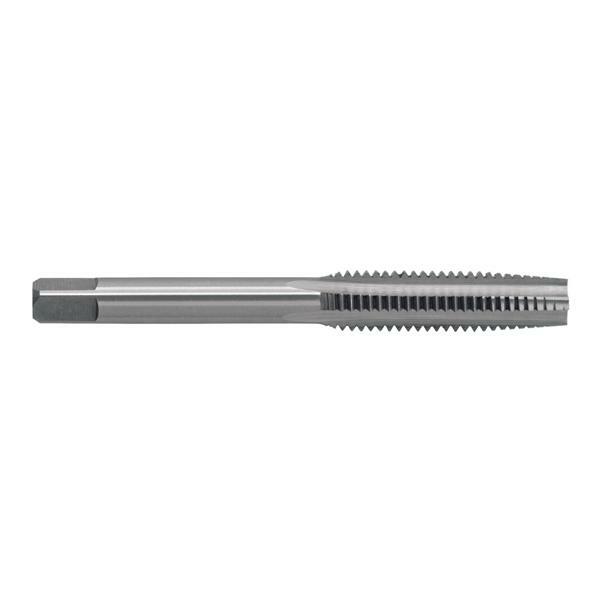

Sutton M2041206 Metric MF12 x 1.25 Hand Tap - Taper - Tungsten Chrome - Sutton Tools

Description

Descriptions

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
Taper lead: for starting a thread prior to using an intermediate or bottoming lead tap
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N (for normal general purpose type materials)
Material: Tungsten Chrome Alloy (TCA)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Square Shank
X: als
Type: Straight Flute
Thread Form: ISO Metric Fine (MF)
Lead: Taper

Specifications

AIMS SKU A0011055

Brand Sutton Tools

Model Number M2041206

Barcode Number 9311963029528

Pitch (mm) 1.25

Drill Size (mm) 10.8

Diameter Size (mm) MF12

Group Code M204
Thread Form ISO Metric Fine (MF)
Material Tungsten Chrome Alloy (TCA)
Finish Bright
Lead Taper
Application N (for normal general purpose type materials)
Shank Form Square Shank
Max Cut Depth 1.5xD
Tap Type Straight Flute
