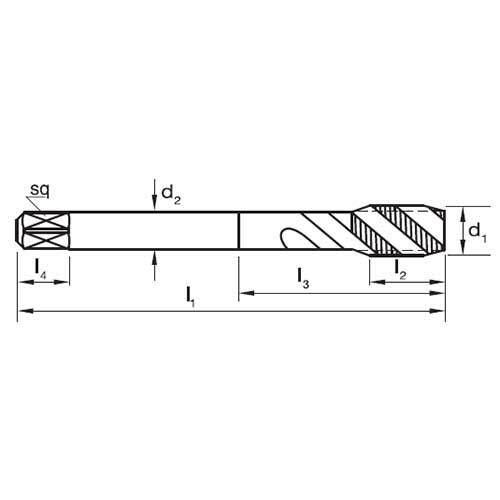

Sutton T699 Spiral Flute Tap R50 UNI Black Magic

• Universal high-performance tapping.
• PM-HSSE V3 offers superior tool life.
• Use in stainless steel and high strength steels up to 850N/mm2.
• Blind holes up to 3 x d1.
• Suitable for synchronous tapping in machine operations.

Specifications

• Material: PM-HSSE V3
• Surface Finish: Hardlube
• Sutton Designation: UNI
• Geometry: R50
• Chamfer: Form C / 2.5 x P
• Limit & Nut Tolerance: ISO 228

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
• Optimal for Stainless Steel - Austenitic-180HBOptimal for Stainless Steel - Duplex-250HB
• Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
• Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
• Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non-Heat Treatabl-75HB
