Description

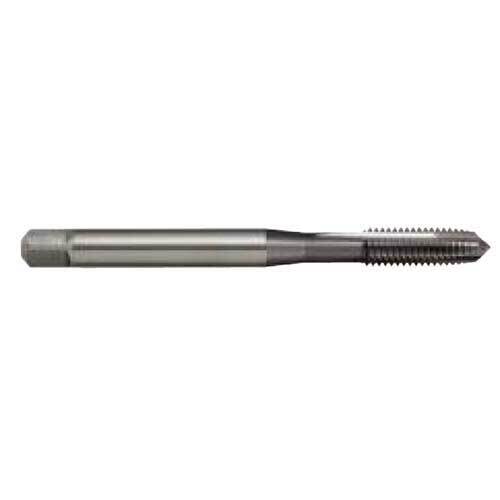

Sutton T687 Spiral Point (Gun) Tap - UNI - Black Magic

Universal high-performance tapping.
PM-HSSE V3 offers superior tool life.
Use in stainless steel and high strength steels up to 850N/mm2.
Through holes up to 3 x d1.
Suitable for synchronous tapping in machine operations.

Specifications

Designation: UNI
Material: PM-HSSE V3
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: A
x: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: M
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
Optimal for Steel - High alloy, cast & tool-200HB
Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
Optimal for Stainless Steel - Austenitic-180HB
Optimal for Stainless Steel - Duplex-250HB
Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatabl-75HB

Specifications

AIMS SKU A0131515

Brand Sutton Tools

Model Number T6870300

Barcode Number 9311963513584

Lead Form B / 4.5 x P

L1 (mm) 56

Square Size (mm) 2.7

Order Multiple 1

Limit 6HX

Pitch Size (mm) 0.5

Diameter Size d1 (mm) M3

Flute 3

Shank d2 (mm) 3.5

X als

Sutton Designation UNI

L4 (mm) 6

Drill Size (mm) 2.5

Nut Tolerance 6HX

L3 (mm) 18

Max Cut Depth 3xD

L2 (mm) 11

Shank Form A

Type Spiral Point Tap
System of Measurement DIN371
Thread Form Metric ISO Coarse (M)
Material PM-HSSE V3
Finish Hardlube
Item Type Spiral Point (Gun)
Group Code T687
