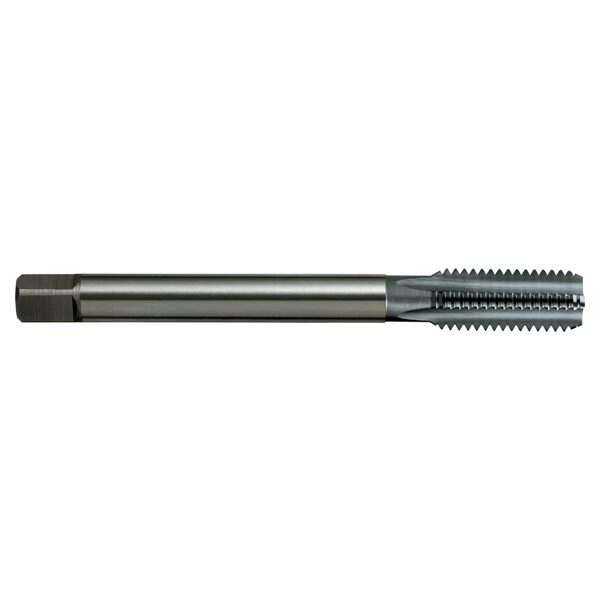

Sutton T671 Metric Straight Flute Tap - Carbide TiCN - Sutton Tools

Description

Features

VHM
for use in Al >10% Si & cast iron (GGG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GGG (for cast iron materials)
Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6H
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) – Pearlitic
Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Cast Iron - Chilled: Cast

Specifications

AIMS SKU A0015881

Brand Sutton Tools

Model Number T6711600

Barcode Number 9311963544502

Shank (mm) 12

L1 (mm) 110

Pitch (mm) 2

Drill Size (mm) 14.1

L2 (mm) 32

Square Size (mm) 9

Diameter (metric) M16

L4 (mm) 12

z 4

Group Code T671
System of Measurement DIN376
Thread Form ISO Metric Coarse (M)
Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
Finish Titanium Carbonitride (TiCN)
Lead Form C / 3 x P
Application GGG (for cast iron materials)
Nut Tolerance 6H
Max Cut Depth 3xD
Tap Type Straight Flute
Shank Form Reduced Shank (with square drive)
