Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

  • AIMS SKU A0015607
  • Brand Sutton Tools
  • Model Number T4600397
  • Barcode Number 9311963013343
  • Diameter (inch) 5/32
  • TPI 32

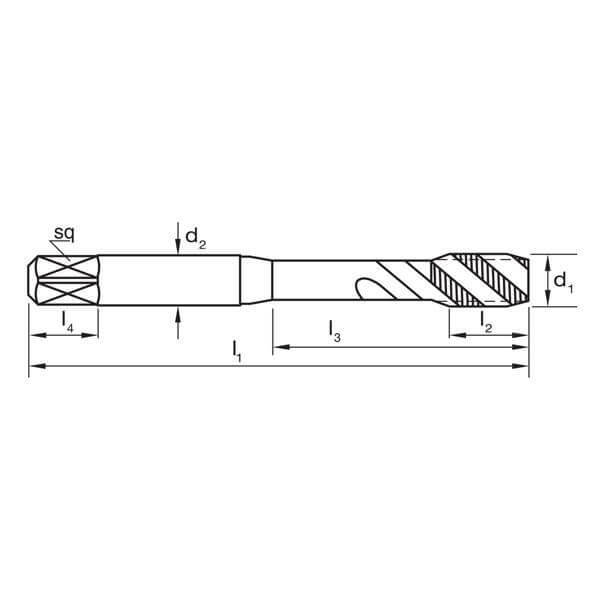

  • Shank (mm) 4
  • L1 (mm) 53
  • Square Size (mm) 3.15
  • Drill Size (mm) 3.2
  • L4 (mm) 6
  • z 3
  • L2 (mm) 7
  • L3 (mm) 17
  • Group Code T460
  • Thread Form British Standard Whitworth 55° (BSW)
  • System of Measurement ISO529
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Bright
  • Lead Form C / 3 x P
  • Helix Angle R40
  • Application N (for normal general purpose type materials)
  • Tap Type Spiral Flute
  • Shank Form Reinforced Shank (with square drive)
  • Nut Tolerance Z3 Medium
  • Max Cut Depth 2.5xD
SKU: A0015607

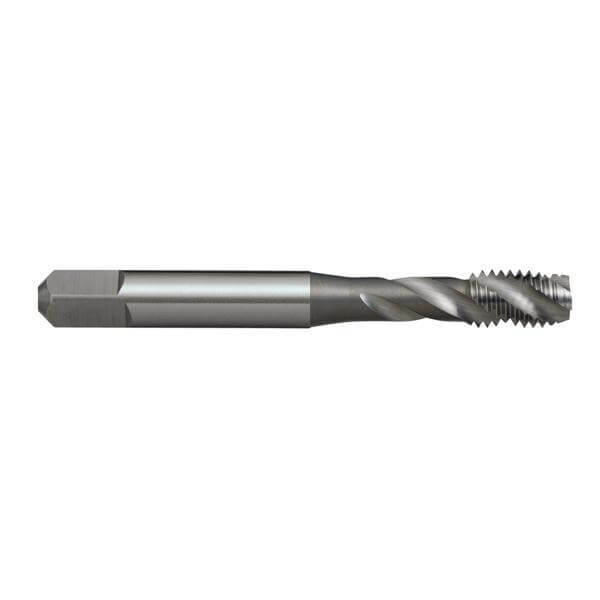

Sutton T4600397 BSW 5/32 x 32 Spiral Flute Tap - Bottoming - HSSE V3

Suttons Spiral Flute Taps - BSW

$39.84
RRP $59.22
SAVE $19.38 (33%)
