Description

Features

  • Form C / 3 x P General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: UNF
  • Lead: 2B

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications

  • AIMS SKU A0015431
  • Brand Sutton Tools
  • Model Number T4430483
  • Barcode Number 9311963066844
  • Diameter (inch) #10
  • TPI 32
  • Shank (mm) 5
  • L1 (mm) 58
  • Sq 4
  • Drill Size (mm) 4.1
  • L4 (mm) 7
  • z 3
  • L2 (mm) 11
  • L3 (mm) 22
  • Group Code T443
  • Thread Form UNF
  • System of Measurement ISO529
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Titanium Nitride (TiN)
  • Lead 2B
  • Helix Angle R40
  • Application N (for normal general purpose type materials)
  • Tap Type Spiral Flute
  • Shank Form Reinforced Shank (with square drive)
  • Max Cut Depth 2.5xD
SKU: A0015431

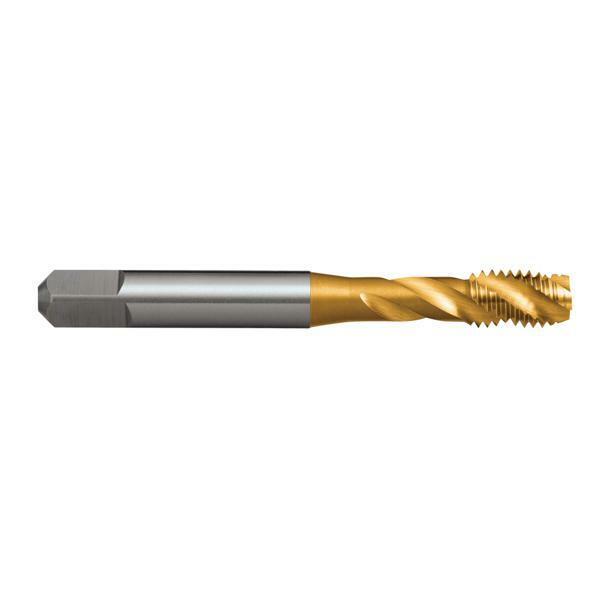

Sutton T4430483 UNF #10 x 32 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Suttons Spiral Flute Taps - UNF
