Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • AIMS SKU A0015262
  • Brand Sutton Tools
  • Model Number T4260794
  • Barcode Number 9311963357966
  • Diameter (inch) 5/16
  • TPI 18
  • Shank (mm) 8
  • L1 (mm) 72
  • Square Size (mm) 6.3
  • Drill Size (mm) 6.6
  • L4 (mm) 9
  • z 3
  • L2 (mm) 13
  • L3 (mm) 30
  • Group Code T426
  • Thread Form UNC
  • System of Measurement ISO529
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Steam Oxide (Blue)
  • Lead Form C / 3 x P
  • Helix Angle R40
  • Application N (for normal general purpose type materials)
  • Tap Type Spiral Flute
  • Shank Form Reinforced Shank (with square drive)
  • Nut Tolerance 2B
  • Max Cut Depth 2.5xD
SKU: A0015262

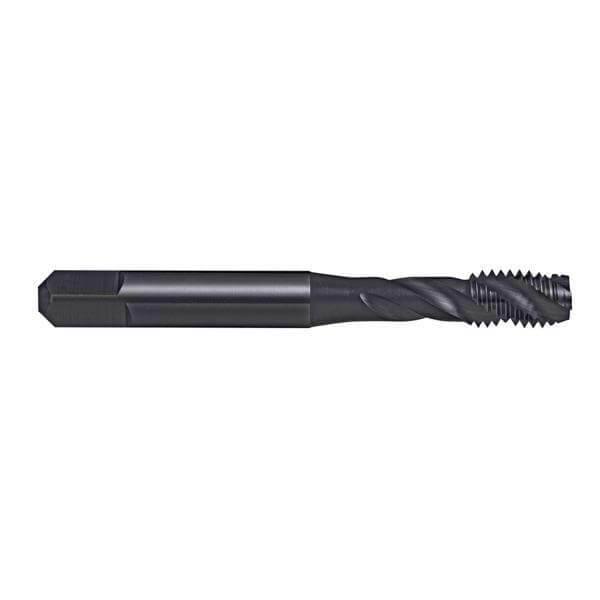

Sutton T4260794 UNC 5/16 x 18 Spiral Flute Tap - Bottoming - HSSE V3 Blue

Suttons Spiral Flute Taps - UNC

$34.28
RRP $50.95
SAVE $16.67 (33%)
