Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H LH
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • AIMS SKU A0014882
  • Brand Sutton Tools
  • Model Number T3910400
  • Barcode Number 9311963043807
  • Shank (mm) 4
  • L1 (mm) 53
  • Drill Size (mm) 3.3
  • L3 (mm) 18
  • Sq 3.15
  • Diameter (metric) M4
  • L2 (mm) 13
  • L4 (mm) 6
  • z 3
  • Group Code T391
  • System of Measurement ISO529
  • Thread Form ISO Metric Coarse (M)
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Lead Bottoming
  • Application N (for normal general purpose type materials)
  • Nut Tolerance ISO 2 / 6H LH
  • Max Cut Depth 1xD
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
SKU: A0014882

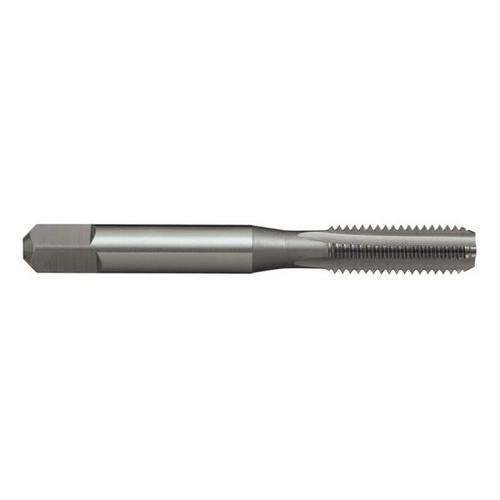

Sutton T3910400 M4 x 0.7 Straight Flute Tap - Bottoming - Left Hand - HSS

Suttons Straight Flute Taps - Left Hand - M - Bottoming

$45.57
RRP $67.75
SAVE $22.18 (33%)
