Specifications

AIMS SKU A0014576
Brand Sutton Tools
Model Number T3460805
Barcode Number 9311963541631

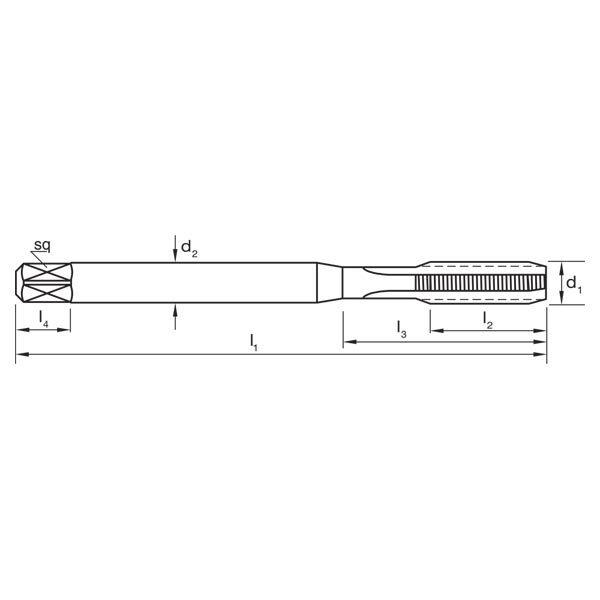

Shank (mm) 8
L1 (mm) 90
Drill Size (mm) 7
L3 (mm) 35
Square Size (mm) 6.2
Diameter (metric) MF8
L2 (mm) 22
L4 (mm) 9
z 4
• Group Code T346
• System of Measurement DIN371 / DIN376
• Thread Form ISO Metric Fine (MF)
• Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
• Finish Titanium Carbonitride (TiCN)
• Lead Form D / 4 x P
• Application VH (for very hard materials)
• Nut Tolerance 6HX
• Max Cut Depth 1.5xD
• Tap Type Straight Flute
• Shank Form Reinforced Shank (with square drive)
