Description

Features

  • For production tapping in die cast materials
  • PM-HSS Co for superior tool life
  • Form E for maximum thread depth in blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: DC
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form E / 1.5 x P

Applications

  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable

Specifications

  • AIMS SKU A0014547
  • Brand Sutton Tools
  • Model Number T3361400
  • Barcode Number 9311963508450
  • Shank (mm) 11
  • L1 (mm) 110
  • Pitch (mm) 2
  • Drill Size (mm) 12
  • L2 (mm) 30
  • Square Size (mm) 9
  • Diameter (metric) M14
  • L4 (mm) 12
  • z 4
  • Group Code T336
  • System of Measurement DIN376
  • Thread Form ISO Metric Coarse (M)
  • Material High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form E / 1.5 x P
  • Application DC
  • Nut Tolerance 6HX
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
SKU: A0014547

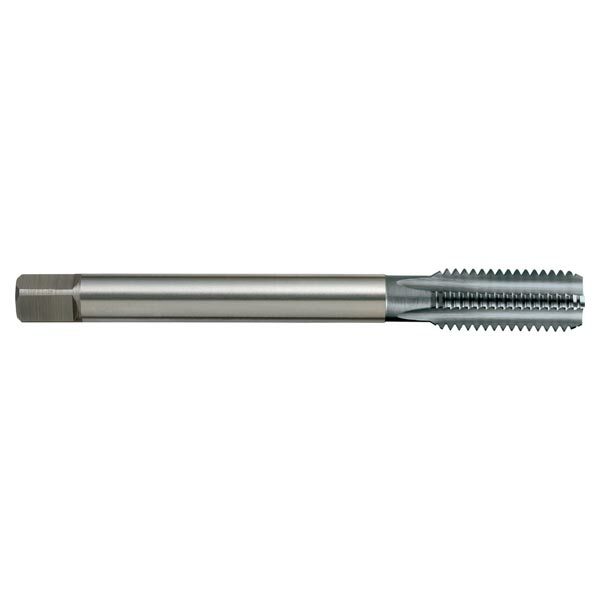

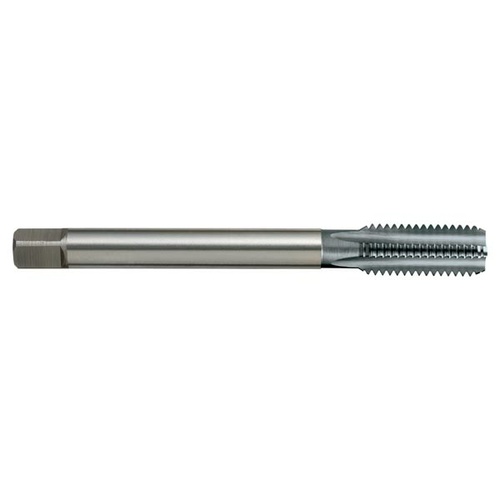

Sutton T3361400 Metric M14 x 2 Straight Flute Tap - Cobalt Steel TiCN

Suttons Straight Flute Taps - DC

$162.46
