Description

Features

  • XH, use in hardened steels 42-52 HRc
  • VH, use in hardened steels 50-60 HRc
  • Through & blind holes
  • Depths up to approx. 1.5 x d1

Specifications

  • Designation: VH (for very hard materials)
  • Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN371 / DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Hardened steel: Hardened & Tempered
  • Cast Iron: Hardened & Tempered

Specifications

  • AIMS SKU A0014287
  • Brand Sutton Tools
  • Model Number T2970500
  • Barcode Number 9311963541501

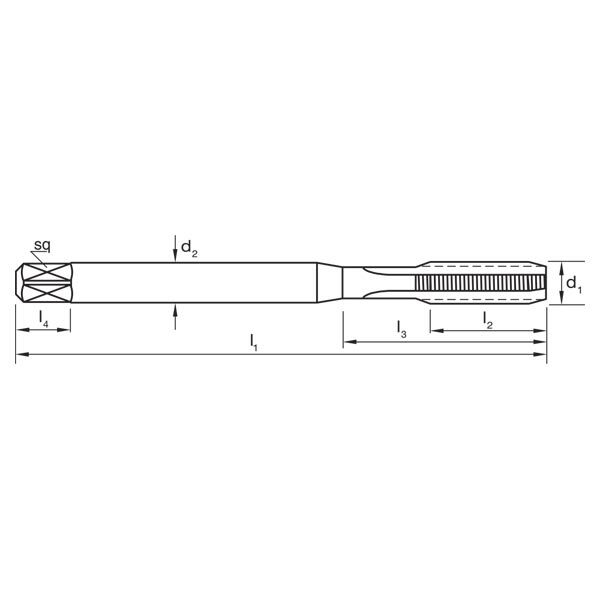

  • Shank (mm) 6
  • L1 (mm) 70
  • Drill Size (mm) 4.3
  • L3 (mm) 25
  • Square Size (mm) 4.9
  • Diameter (metric) M5
  • L2 (mm) 16
  • L4 (mm) 8
  • z 4
  • Group Code T297
  • System of Measurement DIN371 / DIN376
  • Thread Form ISO Metric Coarse (M)
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form D / 4 x P
  • Application VH (for very hard materials)
  • Nut Tolerance 6HX
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
SKU: A0014287

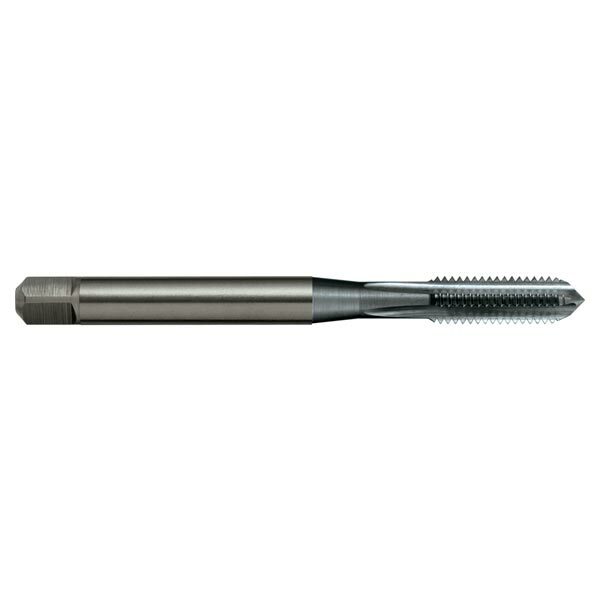

Sutton T2970500 Metric M5 x 0.8 Straight Flute Tap - Carbide TiCN

Suttons Straight Flute Taps - VH

$251.25
RRP $267.40
SAVE $16.15 (6%)
