Specifications

AIMS SKU A0014277
Brand Sutton Tools
Model Number T2960400
Barcode Number 9311963420356

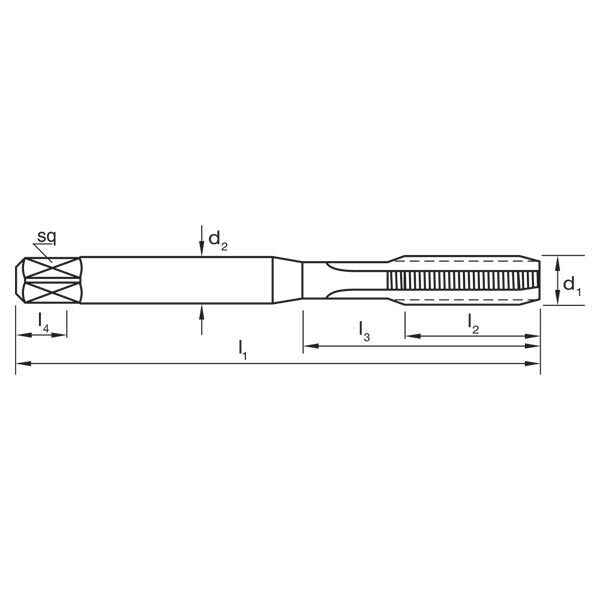

Shank (mm) 4.5
L1 (mm) 63
L2 (mm) 13
L3 (mm) 21
z 4
Diameter (metric) M4
Drill Size (mm) 3.4
L4 (mm) 6
Square Size (mm) 3.4
• Group Code T296
• System of Measurement DIN371 / DIN376
• Thread Form ISO Metric Coarse (M)
• Material Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
• Finish Titanium Carbonitride (TiCN)
• Lead Form C / 3 x P
• Application VH (for very hard materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1.5xD
• Tap Type Straight Flute
• Nut Tolerance 6HX
