Description

Features

  • Use in hardened steels 42-52 HRc
  • Through & blind holes
  • Depths up to 1.5 x d1

Specifications

  • Designation: XH (for extra hard materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: Sutton
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Pearlitic
  • Hardened steel:Hardened & Tempered
  • Cast Iron - Chilled: Cast

Specifications

  • AIMS SKU A0014260
  • Brand Sutton Tools
  • Model Number T2940500
  • Barcode Number 9311963420257
  • Shank (mm) 6
  • L1 (mm) 60
  • Drill Size (mm) 4.3
  • L3 (mm) 25
  • Square Size (mm) 4.9
  • Diameter (metric) M5
  • L2 (mm) 16
  • L4 (mm) 8
  • z 4
  • Group Code T294
  • System of Measurement Sutton
  • Thread Form ISO Metric Coarse (M)
  • Material High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form C / 3 x P
  • Application XH (for extra hard materials)
  • Nut Tolerance 6HX
  • Max Cut Depth 1.5xD
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
SKU: A0014260

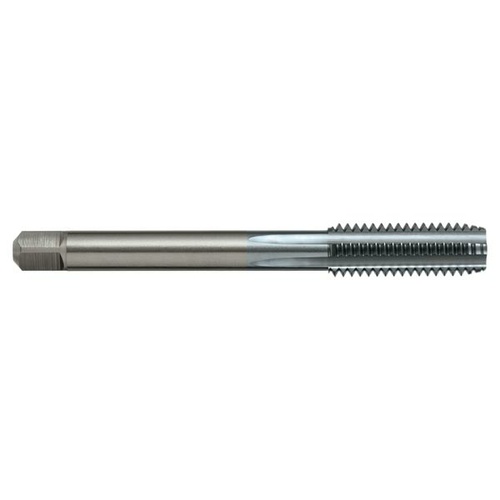

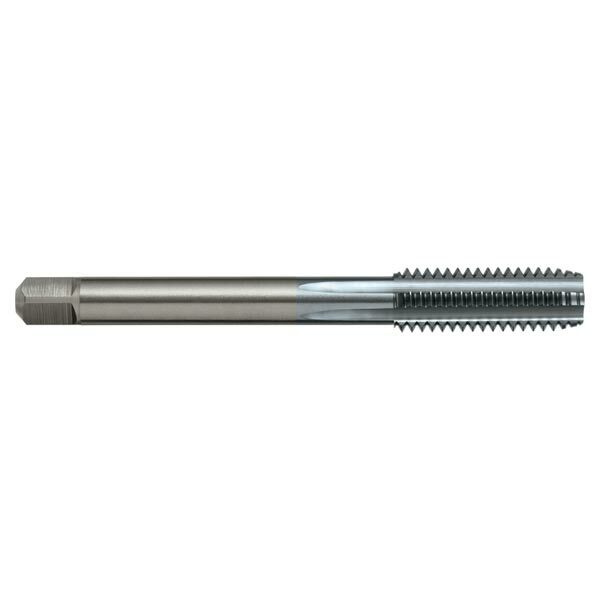

Sutton T2940500 Metric M5 x 0.8 Straight Flute Tap - 11% Cobalt Steel TiCN

Suttons Straight Flute Taps - XH
