Specifications

AIMS SKU A0014238
Brand Sutton Tools
Model Number T2910600
Barcode Number 9311963124346

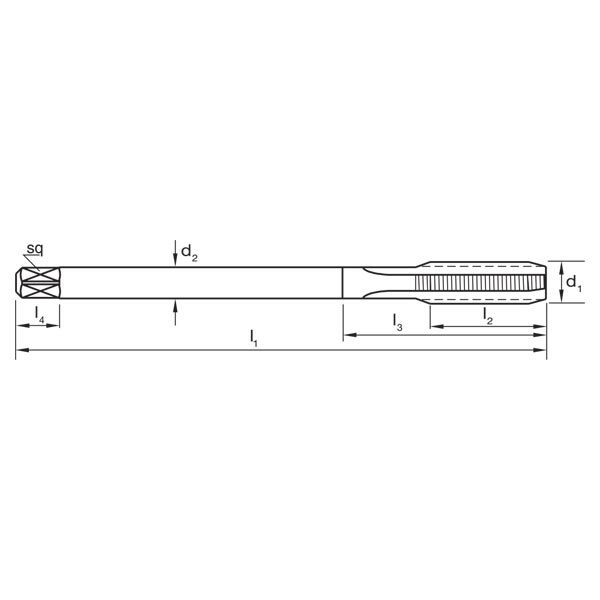

Shank (mm) 4.5
L1 (mm) 80
Pitch (mm) 1
Drill Size (mm) 5
L2 (mm) 19
Square Size (mm) 3.4
Diameter (metric) M6
L4 (mm) 6
z 4
• Group Code T291
• System of Measurement DIN376
• Thread Form ISO Metric Coarse (M)
• Material Premium Grade High Speed Steel (HSSE-V3)
• Finish Plasma Nitride (Ni) + Steam Oxide (Blue)
• Lead Form C / 3 x P
• Application GG (for cast iron)
• Nut Tolerance 6HX
• Max Cut Depth 3xD
• Tap Type Straight Flute
• Shank Form Reduced Shank (with square drive)
