Description

Features

  • Suitable for harder short chipping materials up to 42 HRc
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: NH
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Aluminium Nitride (TiAIN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Annealed
  • Stainless Steel - Precipitation Hardening
  • Cast Iron, Malleable – Ferritic
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

  • AIMS SKU A0013232
  • Brand Sutton Tools
  • Model Number T1630403
  • Barcode Number 9311963413358

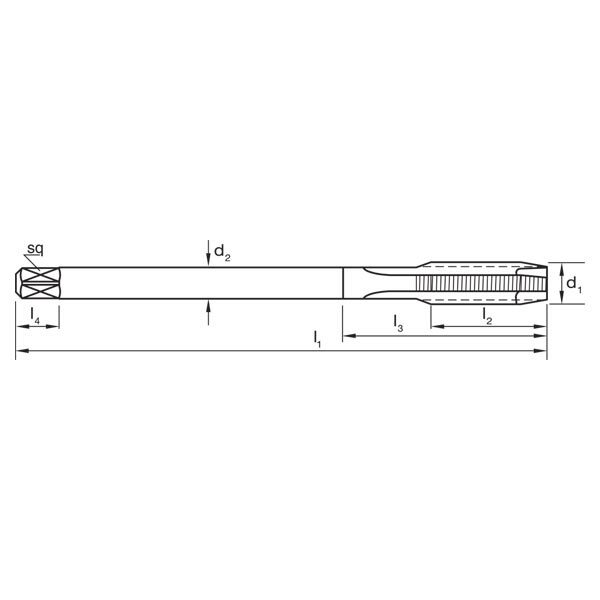

  • Shank (mm) 2.8
  • L1 (mm) 63
  • Pitch (mm) 0.5
  • Drill Size (mm) 3.5
  • L2 (mm) 10
  • Square Size (mm) 2.1
  • Diameter (metric) MF4
  • L4 (mm) 5
  • z 3
  • Group Code T163
  • System of Measurement DIN374
  • Thread Form ISO Metric Fine (MF)
  • Material Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Lead Form B / 4.5 x P
  • Application NH
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth 3xD
  • Tap Type Spiral Point (Gun)
  • Shank Form Reduced Shank (with square drive)
SKU: A0013232

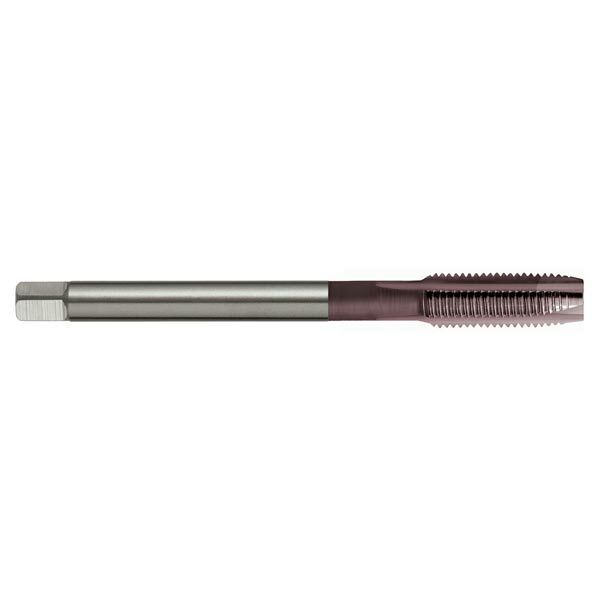

Sutton T1630403 Metric MF4 x 0.5 Spiral Point Tap - HSSE V3 TiAIN

Suttons Spiral Point (Gun) Taps - NH
