Description

Features

  • Suitable for harder short chipping materials up to 45 HRc
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: H (for hard materials forming short chips)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: ru
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Hardened & Tempered
  • Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic
  • Cast Iron, Grey (GG) – Pearlitic
  • Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
  • Cast Iron, Malleable – Ferritic/Pearlitic
  • Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
  • Titanium & Titanium alloys - Alpha alloys
  • Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
  • Titanium & Titanium alloys - Alpha / Beta alloys:  Age Hardened
  • Hardened steel: Hardened & Tempered
  • Cast Iron - Chilled: Cast

Specifications

  • AIMS SKU A0013074
  • Brand Sutton Tools
  • Model Number T1480600
  • Barcode Number 9311963420158
  • Shank (mm) 6
  • L1 (mm) 80
  • Drill Size (mm) 5
  • L3 (mm) 30
  • Square Size (mm) 4.9
  • Diameter (metric) M6
  • L2 (mm) 19
  • L4 (mm) 8
  • z 3
  • Group Code T148
  • System of Measurement DIN371
  • Thread Form ISO Metric Coarse (M)
  • Material High Speed Steel Cobalt (PM-HSS Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Lead Form B / 4.5 x P
  • Application H (for hard materials forming short chips)
  • Nut Tolerance 6HX
  • Max Cut Depth 3xD
  • Tap Type Spiral Point (Gun)
  • Shank Form Reinforced Shank (with square drive)
SKU: A0013074

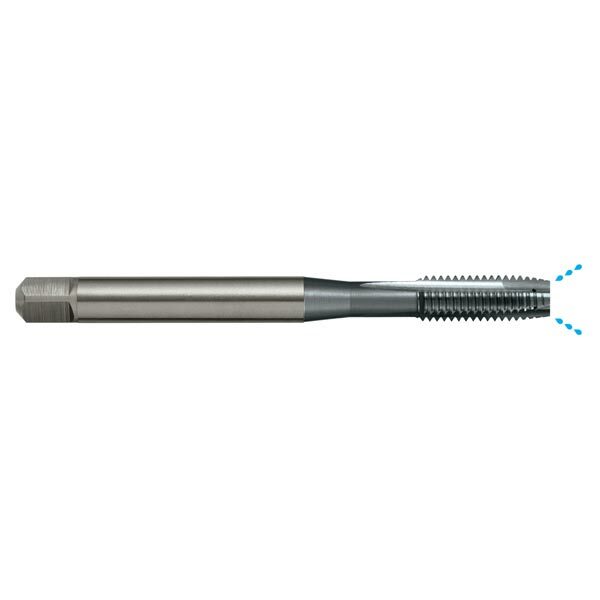

Sutton T1480600 Metric M6 x 1 Spiral Point Tap - Cobalt Steel TiCN

Suttons Spiral Point (Gun) Taps - H - IK

$146.73
RRP $156.17
SAVE $9.44 (6%)

Choose a different size/variant

Calculate Shipping

Browse other products under

Metric - Spiral Point Taps

Browse other products by

Sutton Tools
