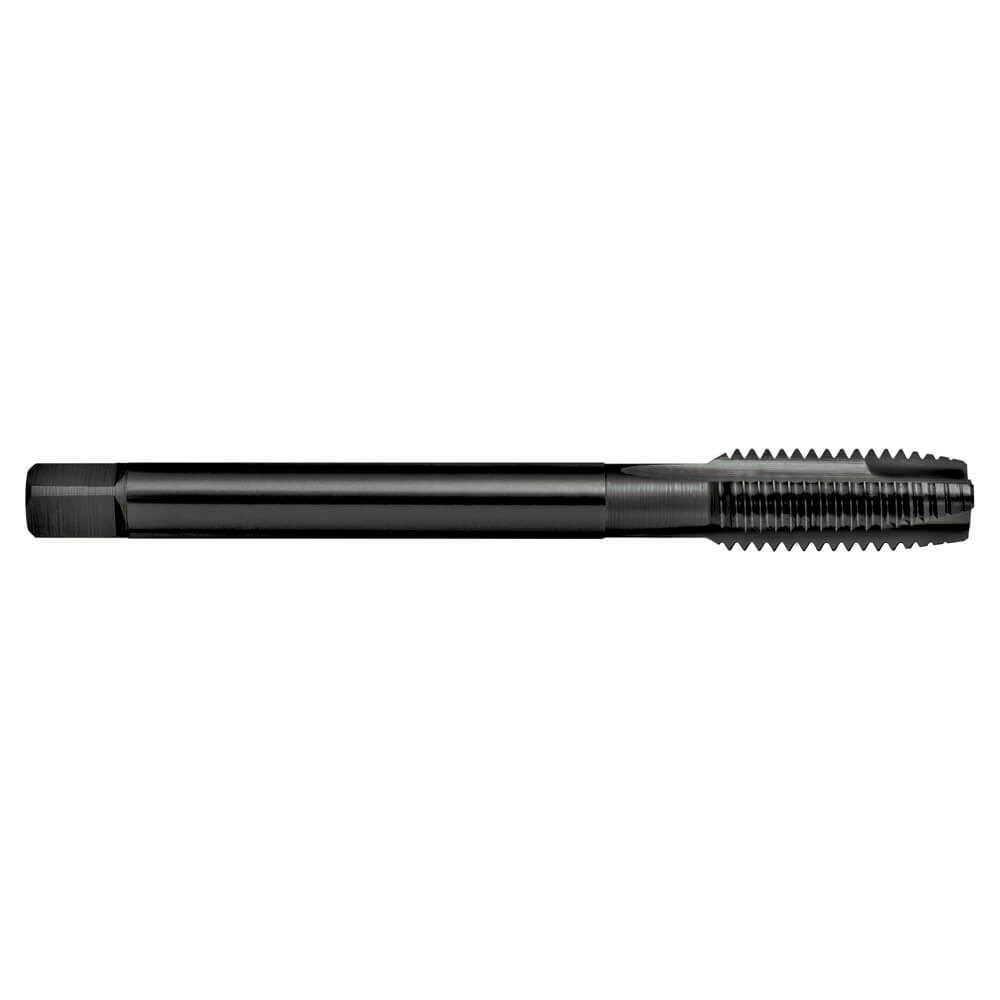

Sutton T145 Metric Fine Spiral Point Tap - Premium HSS - Sutton Tools

Description

Features

General purpose use, materials up to approx. 1000 N/mm2
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

AIMS SKU A0013058

Brand Sutton Tools

Model Number T1451200

Barcode Number 9311963398488

Shank (mm) 2.2

L1 (mm) 56

Pitch (mm) 0.35

Drill Size (mm) 2.65

L2 (mm) 8

Diameter (metric) MF3

z 3

Group Code T145
System of Measurement DIN374
Thread Form ISO Metric Fine (MF)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form B / 4.5 x P
Application N (for normal general purpose type materials)
Nut Tolerance ISO 2 / 6H
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Shank Form Reduced Shank (with square drive)
