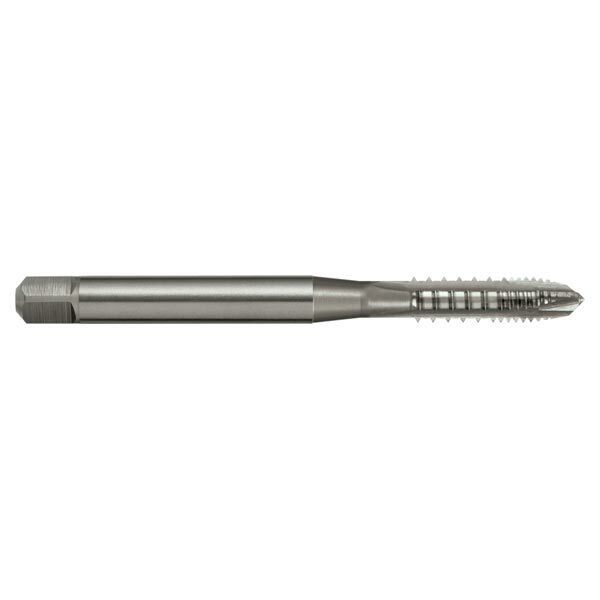

Sutton T128 Metric Spiral Point Tap - Premium HSS - Sutton Tools

Description

Features

Interrupted threads allow greater lubricant flow and reduce friction
Use in soft elastic materials
For long-chipping materials
Through holes up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications

AIMS SKU A0013009

Brand Sutton Tools

Model Number T1281000

Barcode Number 9311963398167

Shank (mm) 10

L1 (mm) 100

L2 (mm) 24

L3 (mm) 39

z 3

Diameter (metric) M10

Drill Size (mm) 8.5

L4 (mm) 11

Square Size (mm) 8

Group Code T128
System of Measurement DIN371
Thread Form ISO Metric Coarse (M)
Material Premium Grade High Speed Steel (HSSE-V3)
Finish Bright
Lead Form B / 4.5 x P
Application W (for soft materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance ISO 2 / 6H
