Description

Features

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

  • AIMS SKU A0012800
  • Brand Sutton Tools
  • Model Number T1000350
  • Barcode Number 9311963385785

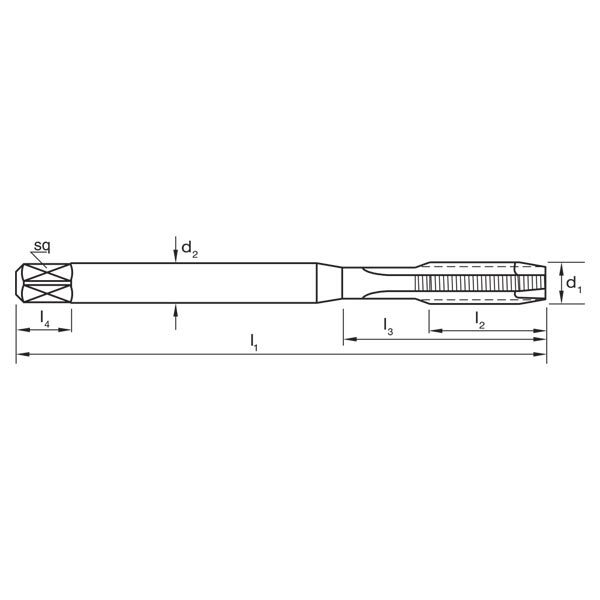

  • Shank (mm) 4
  • L1 (mm) 56
  • Drill Size (mm) 2.9
  • L3 (mm) 20
  • Sq 3
  • Diameter (metric) M3.5
  • L2 (mm) 13
  • L4 (mm) 6
  • z 3
  • Group Code T100
  • System of Measurement DIN371
  • Thread Form ISO Metric Coarse (M)
  • Material Premium Grade High Speed Steel (HSSE-V3)
  • Finish Bright
  • Lead Form B / 4.5 x P
  • Application N (for normal general purpose type materials)
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth 3xD
  • Tap Type Spiral Point (Gun)
  • Shank Form Reinforced Shank (with square drive)
SKU: A0012800

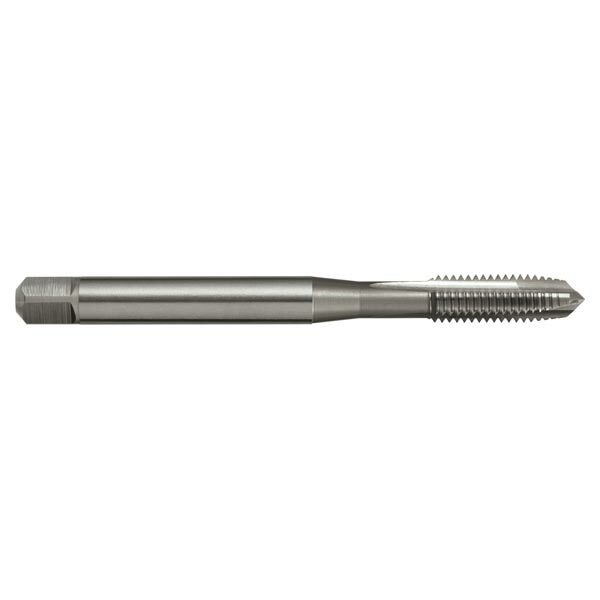

Sutton T1000350 Metric M3.5 x 0.6 Spiral Point Tap - HSSE V3

Suttons Spiral Point (Gun) Taps - N

$31.80
RRP $47.28
SAVE $15.48 (33%)
5/5 based on 1 review.
