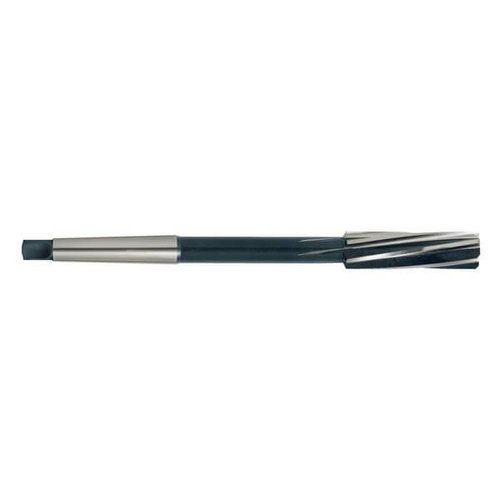

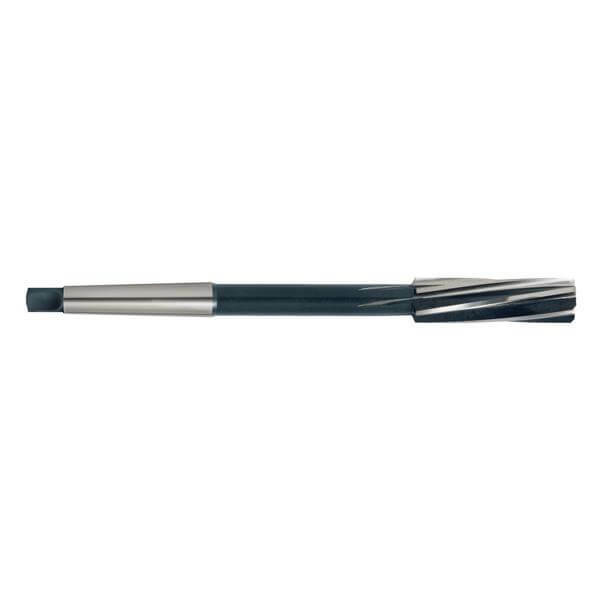

Sutton R1013900 39mm #4 Morse Taper Reamer (Machine) DIN208 HSS - Sutton Tools

Description

Sutton Tools Machine Reamers

The R101 is a machine reamer and would be used with a taper shank arbor.
Used mainly in machine shops/Engineering shops.

Features

Machine use
Suitable for toolroom & workshop use
Produces clean, accurate holes, to an H7 tolerance

Specifications

Designation: N
Material: High-Speed Steel
Finish: Bright
Helix Angle: L10
Type: Machine
Standard: DIN 208

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Cast Iron, Grey (GG) - Ferritic / Pearlitic

Specifications

AIMS SKU A0012229

Brand Sutton Tools

Model Number R1013900

Barcode Number 9311963127293

Morse Taper #4

Reamer Size (mm) 39

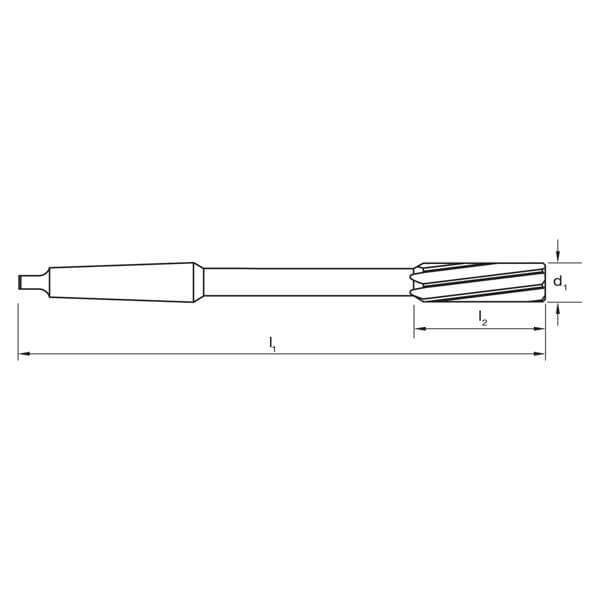

L1 (mm) 329

L2 (mm) 81

D1 (mm) 39

z 12

Group Code R101
Barcode 9311963007410
Type Morse Taper Shank Machine Reamer
System of Measurement DIN 208,Metric
Material High Speed Steel (HSS)
Finish Bright
Helix Angle L10
