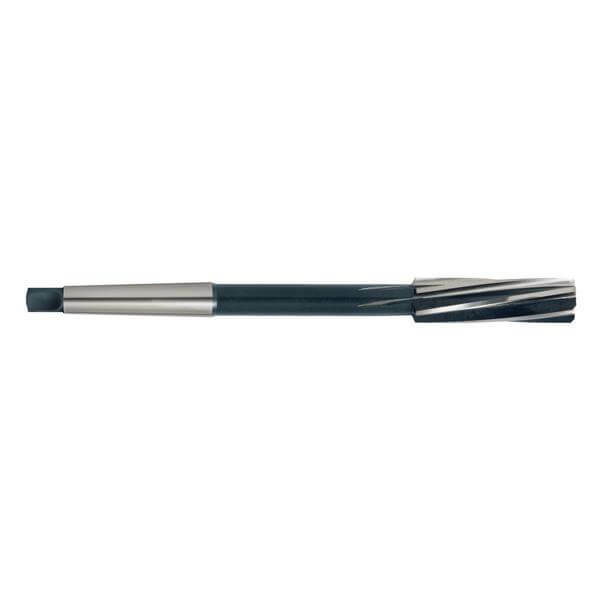

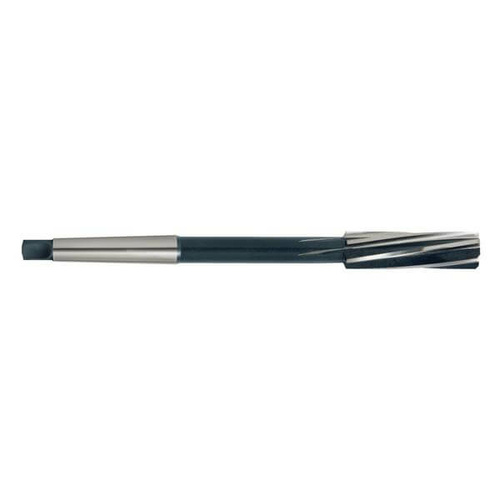

Sutton R1011111 11.11mm #1 Morse Taper Reamer (Machine) ISO521 HSS - Sutton Tools

Description

Sutton Tools Machine Reamers

The R101 is a machine reamer and would be used with a taper shank arbor.
Used mainly in machine shops/Engineering shops.

Features

Machine use
Suitable for toolroom & workshop use
Produces clean, accurate holes, to an H7 tolerance

Specifications

Designation: N
Material: High-Speed Steel
Finish: Bright
Helix Angle: L10
Type: Machine
Standard: DIN 208

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Cast Iron, Grey (GG) - Ferritic / Pearlitic

Specifications

AIMS SKU A0012146

Brand Sutton Tools

Model Number R1011111

Barcode Number 9311963015064

Morse Taper #1

Reamer Size (mm) 11.11

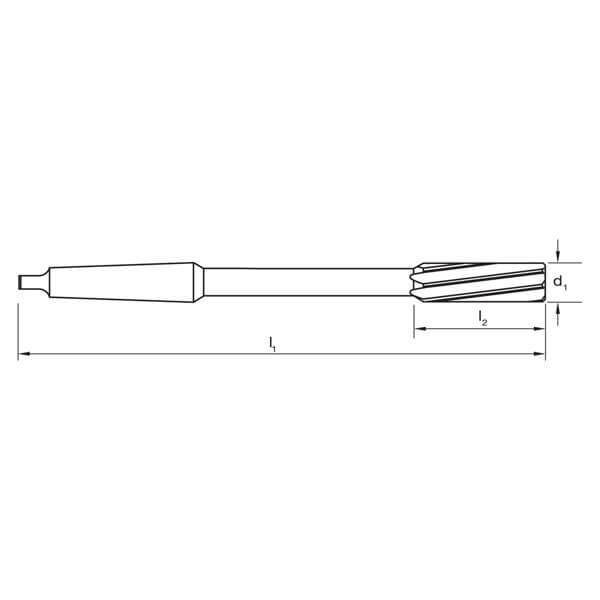

L1 (mm) 175

L2 (mm) 41

D1 (mm) 11.112

z 6

Group Code R101
Barcode 9311963007410
Type Morse Taper Shank Machine Reamer
System of Measurement DIN 208,Metric
Material High Speed Steel (HSS)
Finish Bright
Helix Angle L10
