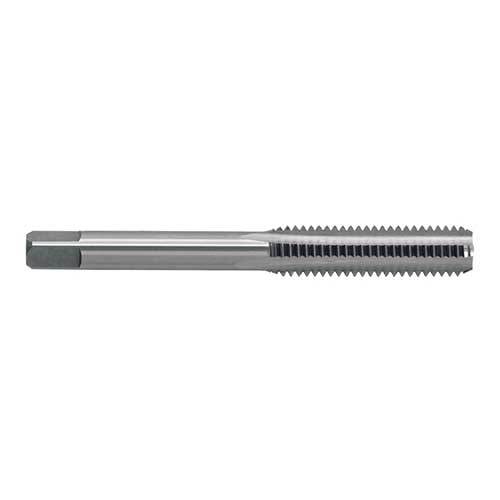

Sutton M2023600 Metric M36 x 4 Hand Tap - Bottoming - Tungsten Chrome - Sutton Tools

Description

Sutton M202 Hand Tap - M - Bottoming

Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.

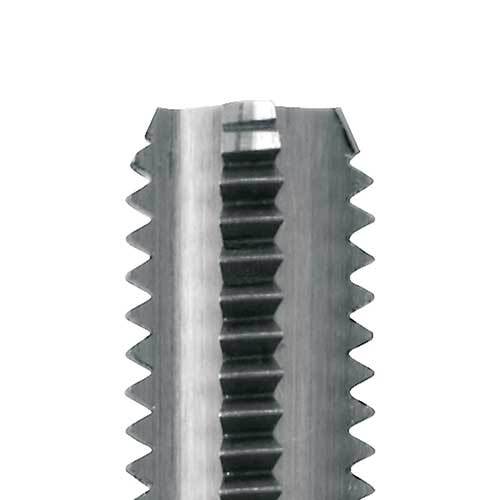

Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

Straight Flutes suitable for through-hole tapping up to 1-1/2 x diameter
Bottoming lead: used after a taper lead tap and are suitable for creating threads close to the bottom of blind holes
Square shank for use with a suitable tap wrench to drive the tap
Made from tungsten chrome alloy
Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

Designation: N
Material: TCA
Finish: Brt
Max Cut Depth: 1.5xD
Shank Form: A
x: als
Type: Straight Flute
Standard: Sutton
Thread Form: M
Lead: Bottoming

Applications

Optimal for PVC Plastic
Optimal for Leather
Optimal for Rubber
Optimal for Carbon Fibre

Specifications

AIMS SKU A0131274

Brand Sutton Tools

Model Number M2023600

Barcode Number 9311963050645

Shank Form A

Maximum Cut Depth 1.5xD

Drill Size (mm) 32

Sutton Designation N

X als

Pitch Size (mm) 4

Diameter Size (mm) M36

Order Multiple 1

Type Hand Tap
Thread Form Metric ISO Coarse (M)
Material Tungsten Chrome Alloy (TCA)
Finish Bright (Brt)
Lead Bottoming
Item Type Straight Flute
Group Code M202
