Description
Description

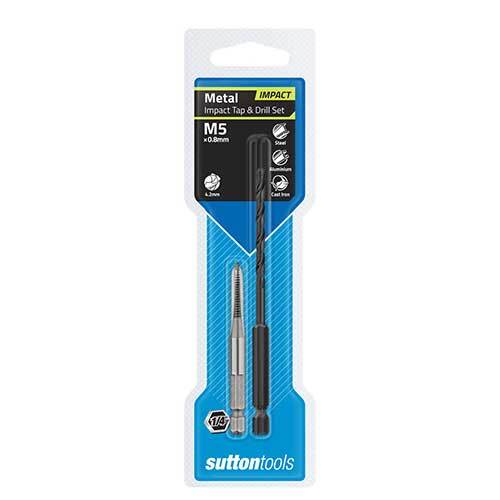

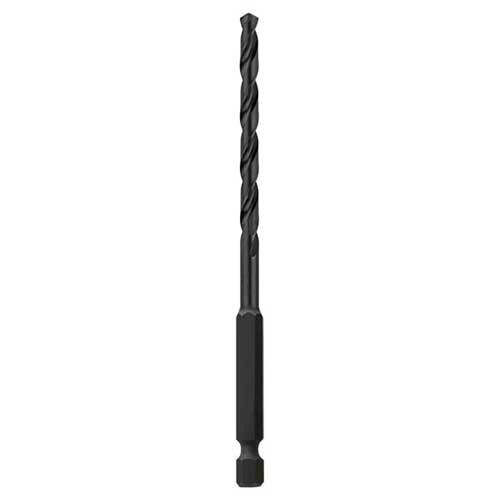

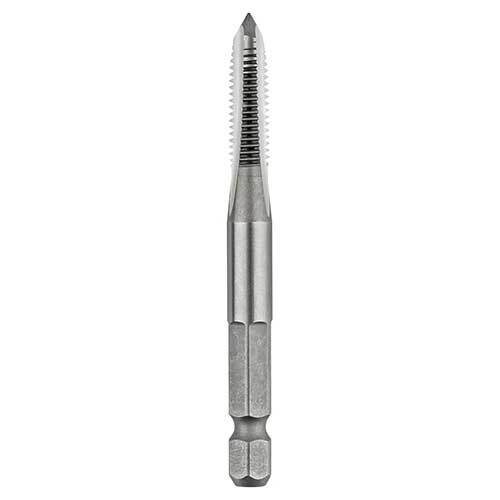

Sutton M105 Impact Tap - M - Tap & Drill Set
- Sutton Tools Impact Taps are specifically developed for use with the high-torque output of an impact driver. Suitable for steel, aluminium, brass, cast iron, plastic, and nylon.
- Impact taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.
- Tapping with an impact driver is approximately 20 times faster than hand tapping – only three seconds to tap a hole.
- Not suitable for precision, safety, or critical threads.
- For tapping up to 1-1/2 x diameter.
- *Drill not included for sizes M10 & M12
Specifications
Specifications
Specifications
- Designation: N
- Material: TCA
- Finish: Brt
- Max Cut Depth: 1.5xD
- Shank Form: A
- x: als
- Type: Straight Flute
- Standard: Sutton
- Thread Form: M
- Nut Tolerance: ISO 2 / 6H
- Lead: Intermediate
Applications
Applications
Features & Benefits
Features & Benefits
Features
- 20X faster – 3 seconds to tap a hole
- 1/4" hex shank suits impact drivers
- Straight Flutes suitable for through-hole tapping up to 1-1/2 x diameter
- Intermediate lead suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton M105 Impact Tap - M - Tap & Drill Set
Sutton M105 Impact Tap - M - Tap & Drill Set
SKU: A0131204
Type: Impact Tap & Drill Set
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton M105 Impact Tap by Sutton Tools is a Impact Tap & Drill Set made from tungsten chrome alloy. It delivers 20X faster operation with 3 seconds to tap a hole and is suitable for repair work.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Sutton M105 Impact Tap - M - Tap & Drill Set
- Sutton Tools Impact Taps are specifically developed for use with the high-torque output of an impact driver. Suitable for steel, aluminium, brass, cast iron, plastic, and nylon.
- Impact taps are ideal for routine maintenance, repair work, and for rethreading where high accuracy and tolerance thread is not critical.
- Tapping with an impact driver is approximately 20 times faster than hand tapping – only three seconds to tap a hole.
- Not suitable for precision, safety, or critical threads.
- For tapping up to 1-1/2 x diameter.
- *Drill not included for sizes M10 & M12
Specifications
Specifications
Specifications
- Designation: N
- Material: TCA
- Finish: Brt
- Max Cut Depth: 1.5xD
- Shank Form: A
- x: als
- Type: Straight Flute
- Standard: Sutton
- Thread Form: M
- Nut Tolerance: ISO 2 / 6H
- Lead: Intermediate
Applications
Applications
Features & Benefits
Features & Benefits
Features
- 20X faster – 3 seconds to tap a hole
- 1/4" hex shank suits impact drivers
- Straight Flutes suitable for through-hole tapping up to 1-1/2 x diameter
- Intermediate lead suitable for through holes or blind holes where the thread does not need to go right to the bottom of the hole
- Made from tungsten chrome alloy
- Bright finish for general purpose applications, non-ferrous metals & plastics
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton M105 Impact Tap - M - Tap & Drill Set
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton M105 Impact Tap by Sutton Tools is a Impact Tap & Drill Set made from tungsten chrome alloy. It delivers 20X faster operation with 3 seconds to tap a hole and is suitable for repair work. |
Regular price
From $36.83
Sale price
From $36.83
Regular price
Unit price
/per
| Sutton Tools | Impact Tap & Drill Set |
Nut Tolerance
ISO 2 / 6H
Pitch Size (mm)
0.5,0.7,0.8,1,1.25
Diameter Size (mm)

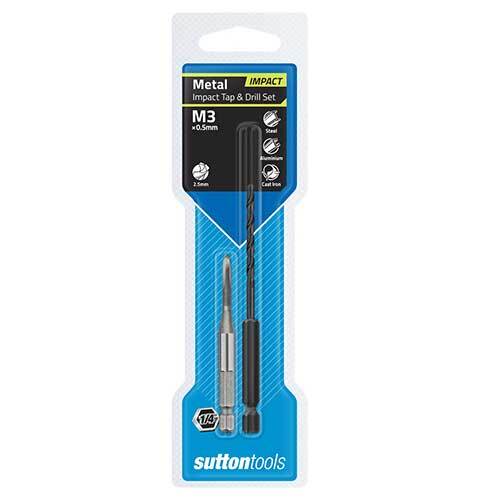

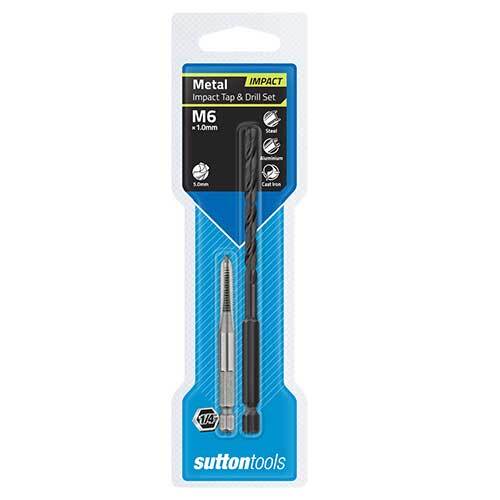

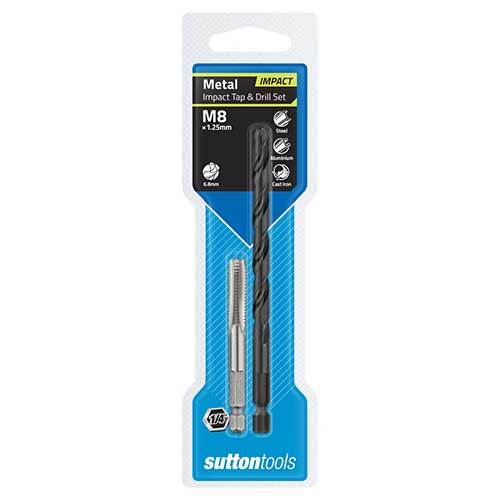

M3,M4,M5,M6,M8
|
Choose your option
Sutton M105 Impact Tap - M - Tap & Drill Set
Sutton M105 Impact Tap - M - Tap & Drill Set
SKU: A0131204
Type: Impact Tap & Drill Set
Available
The Sutton M105 Impact Tap by Sutton Tools is a Impact Tap & Drill Set made from tungsten chrome alloy. It delivers 20X faster operation with 3 seconds to tap a hole and is suitable for repair work.
