Description

Description

  • For precision milling of slots & cavities

Features

  • 2 Flute Slot Drill R30 N
  • Suitable for materials up to 1600 N/mm2

Specifications

  • Designation: N
  • Material: VHM
  • Finish: Bright
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

  • AIMS SKU A0010107
  • Brand Sutton Tools
  • Model Number E6001600
  • Barcode Number 9311963509419

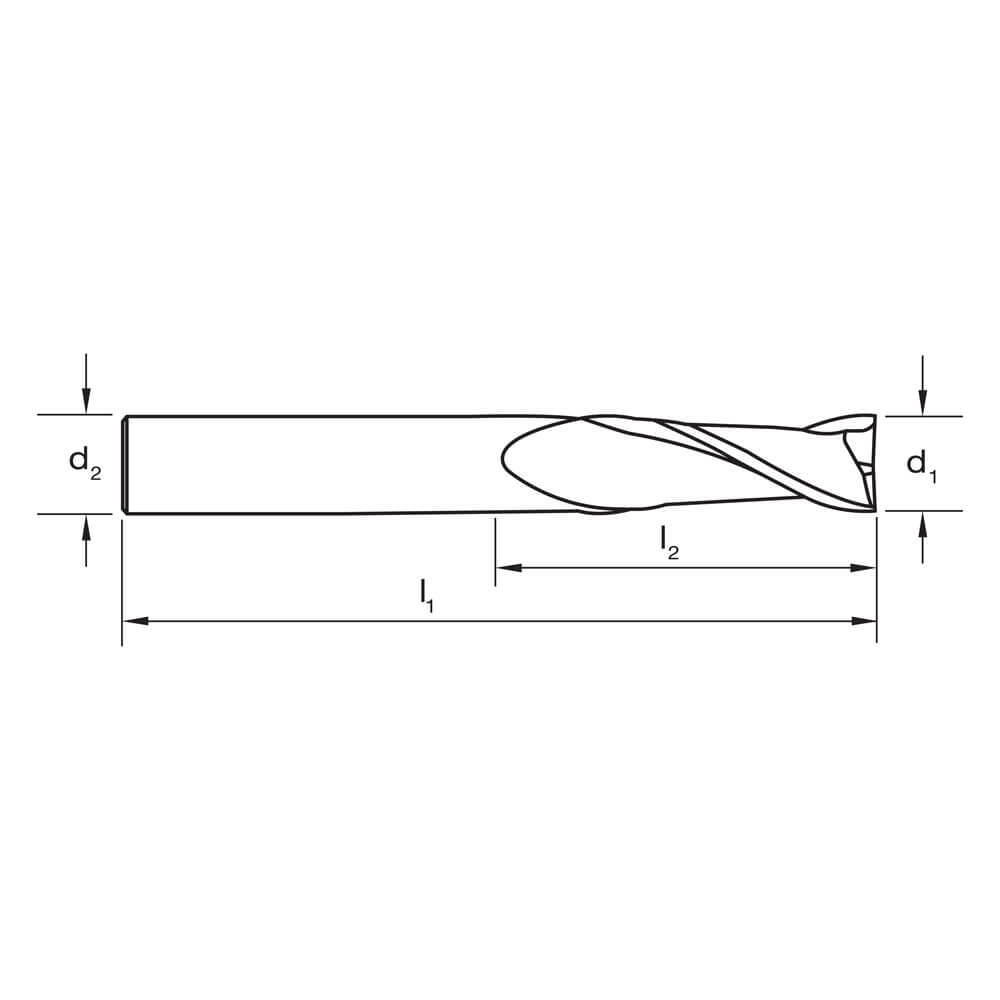

  • Cutting Tip (mm) 16
  • Overall Length (mm) 89
  • Shank (mm) 16
  • Flute Length (mm) 32
  • Group Code E600
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Bright
  • Flutes 2 Flute
  • Profile Square End
  • Reach Regular
  • Helix Angle R30
  • Shank Form HA
  • Shank Tolerance h6
  • Point Tolerance h10
  • Item Type N (finishing)
  • Rake Angle 12
SKU: A0010107 On Sale

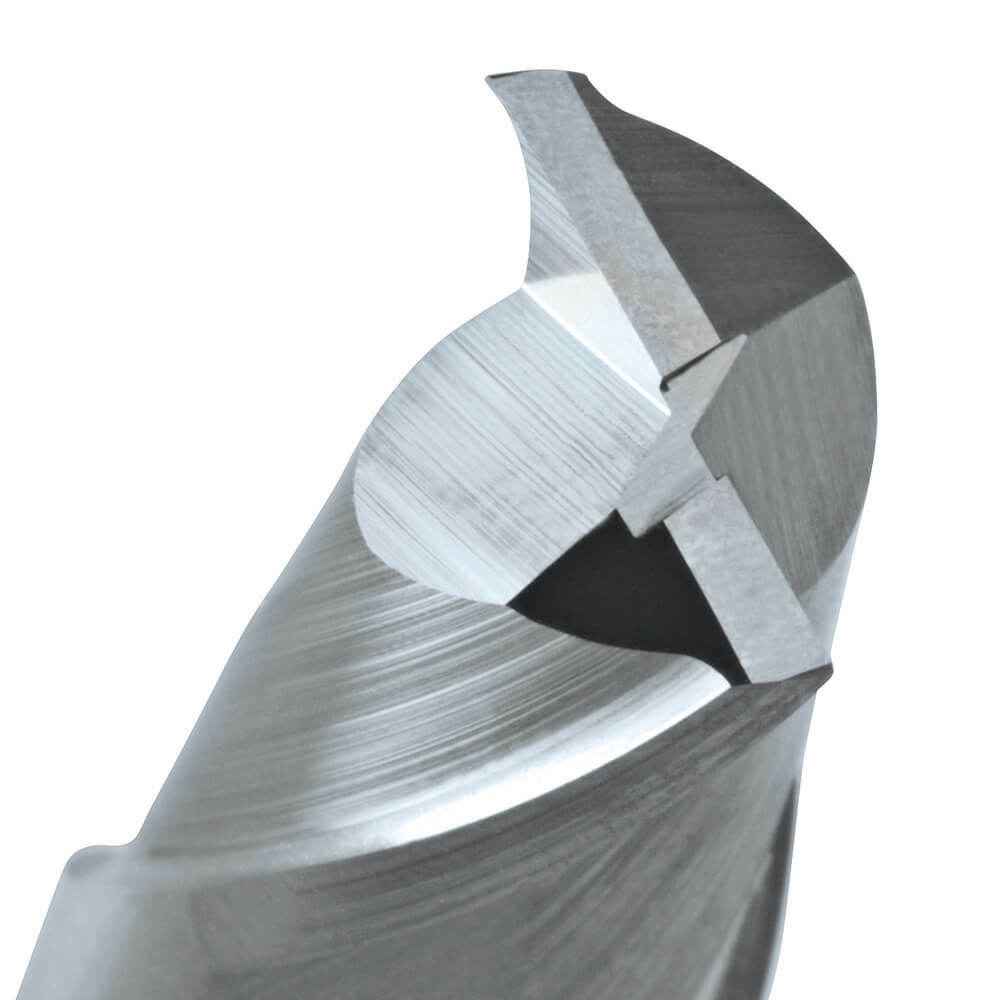

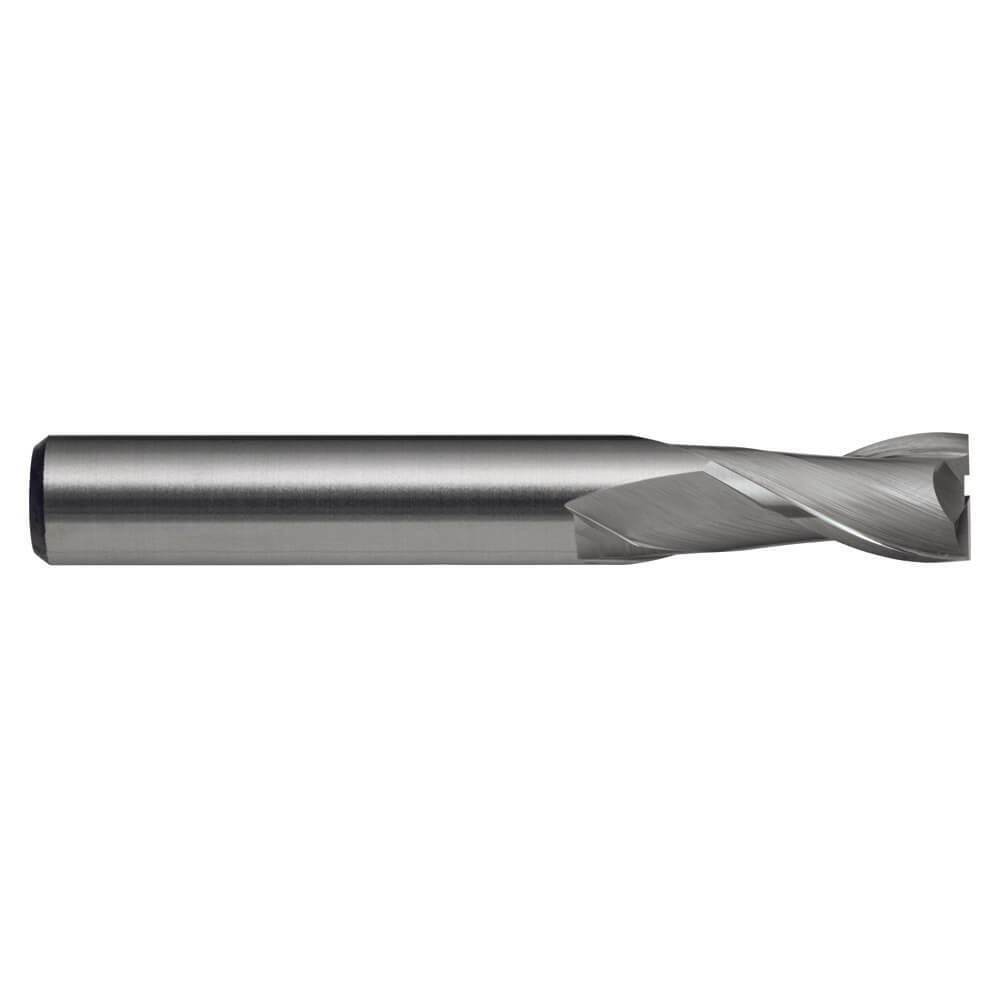

Sutton E6001600 16mm x 16mm 2 Flute Slot Drill - Carbide VHM - Regular

Sutton 2 Flute Slot Drills - R30 N - Regular - Tecline

$159.04
$198.80
