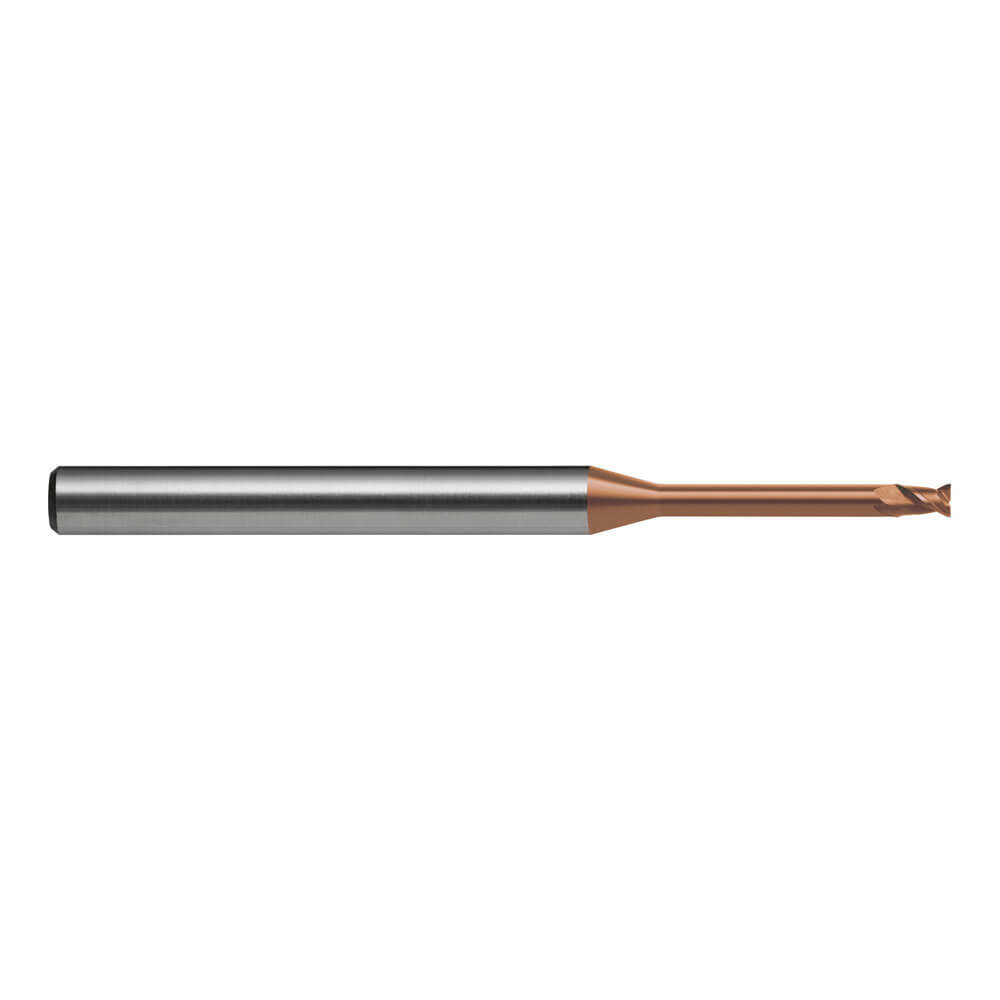

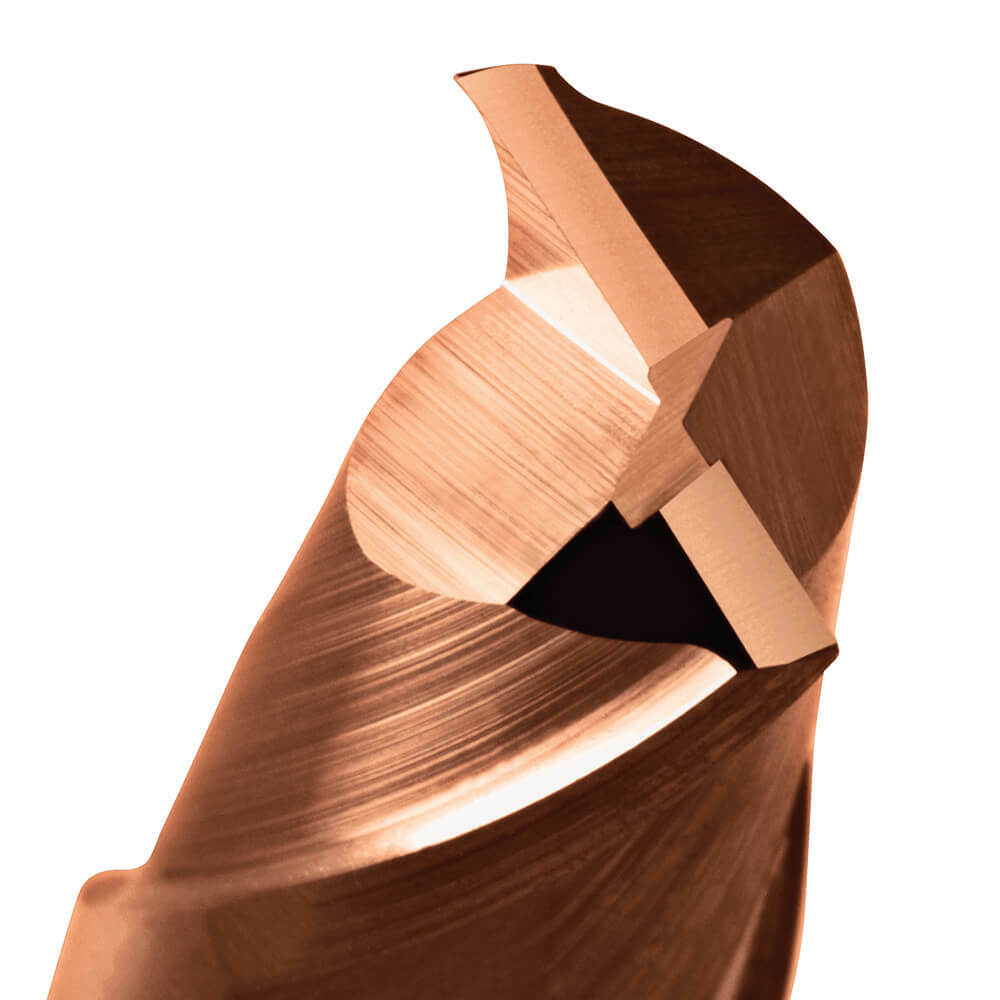

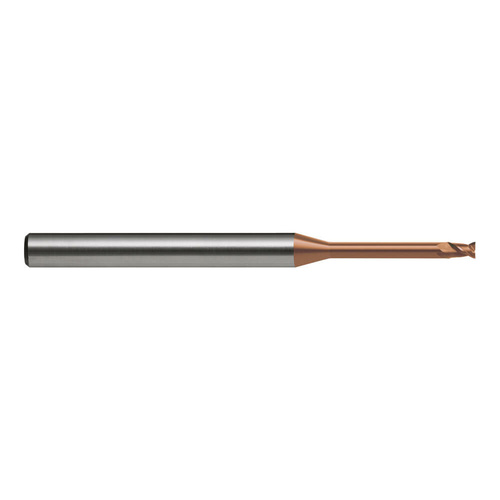

Sutton E5800101 1 x 4mm 2 Flute Square End Micro Endmill VHM Ultra TiSiN - Sutton Tools

Description

Descriptions

For precision milling of cavities
Micro Endmill 2 Flute

Features

Suitable for materials up to 35-52 HRC
TiSiN for high speed machining

Specifications

Designation: NH
Material: VHM
Finish: TiSiN
Shank Form: HA
Helix Angle: R40
Point Tolerance: 0 / -0.020
Shank Tolerance: h6
Point Form: Square End
Type: N (finishing)
Rake Angle: 10-12
Standard: Sutton

Applications

Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
Optimal for Steel - High alloy, cast & tool- 325 HB
Optimal for Stainless Steel - Precipitation Hardening – 250 HB
Optimal for High temperature alloys - Fe based – 280 HB
Optimal for High temperature alloys - Ni / Co based – 350 HB
Optimal for High temperature alloys - Ni / Co based – 320 HB
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys
Optimal for Hardened Steel – 45 HRC

Specifications

AIMS SKU A0009989

Brand Sutton Tools

Model Number E5800101

Barcode Number 9311963592152

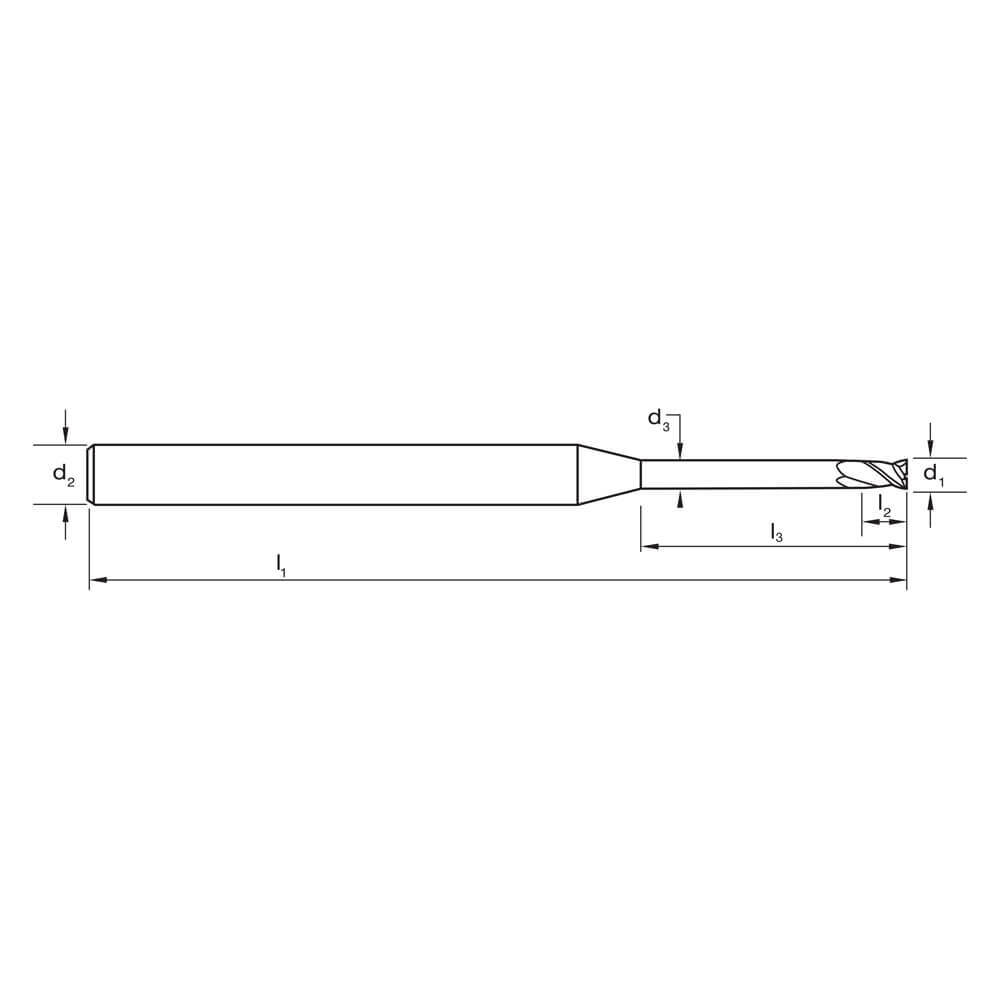

Cutting Tip (mm) 1

Overall Length (mm) 50

Shank (mm) 4

Flute Length (mm) 1.5

D3 (mm) 0.95

L3 (mm) 6

Group Code E580
System of Measurement Metric
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Slicon Nitride (TiSiN)
Flutes 2 Flute
Profile Square End
Reach Long Reach
Helix Angle R40
Shank Form HA
Shank Tolerance h6
Point Tolerance 0 / -0.020
Item Type N (finishing)
Rake Angle 10-12
