Description

Descriptions

  • Optimized geometry for soft materials
  • CrN for copper and non-ferrous materials

Features

  • VHM-ULTRA grade of carbide for high performance

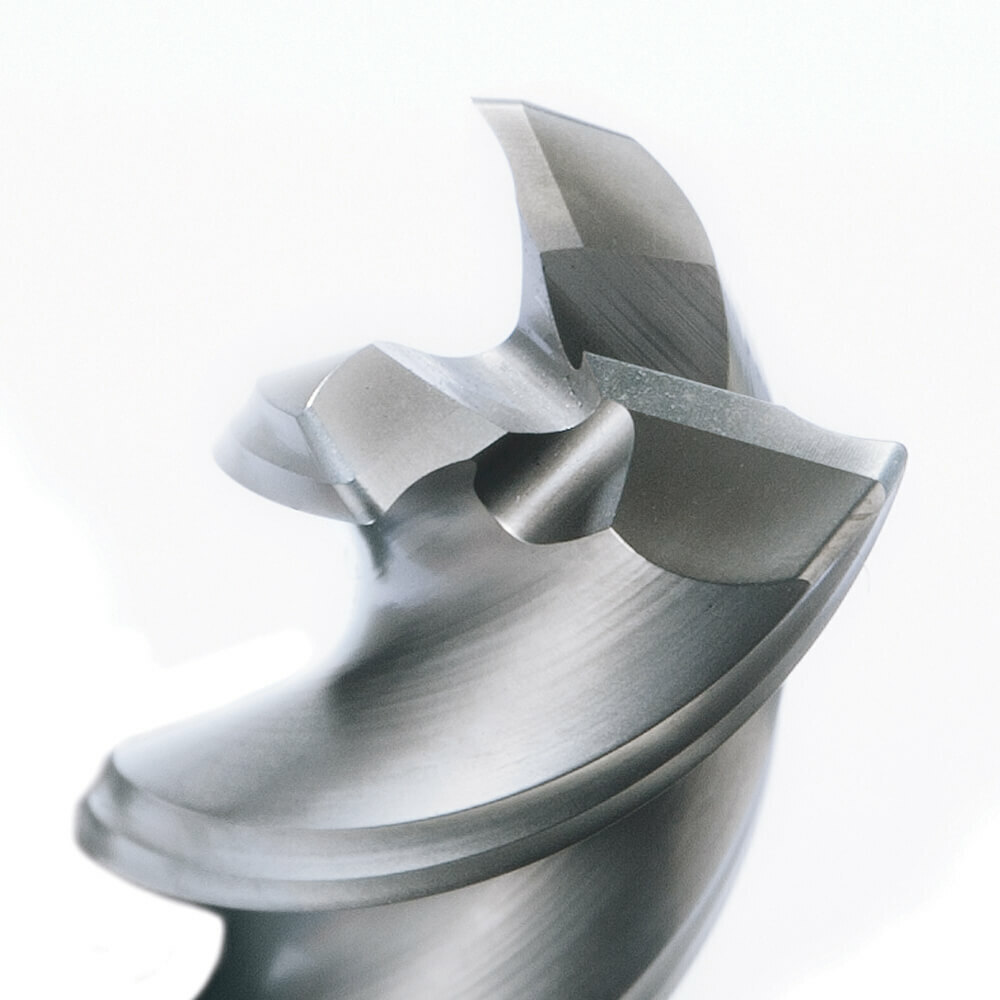

  • 45/46/44° variable flute helix for chatter free milling

Specifications

  • Designation: Al
  • Material: VHM-ULTRA
  • Finish: CrN
  • Shank Form: HA
  • Helix Angle: R45/46/44
  • Point Tolerance: k10
  • Shank Tolerance: h5
  • Point Form: 45° Corner Chamfer
  • Type: N (finishing)
  • Rake Angle: 15
  • Standard: Sutton

Applications

  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable – 130 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

  • AIMS SKU A0009360
  • Brand Sutton Tools
  • Model Number E4020800
  • Barcode Number 9311963582504

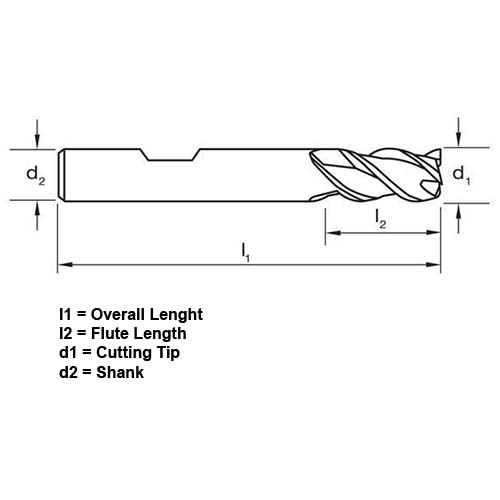

  • Cutting Tip (mm) 8
  • Overall Length (mm) 68
  • Shank (mm) 8
  • Flute Length (mm) 9
  • D3 (mm) 7
  • Rad 0.2
  • L3 (mm) 30
  • Group Code E402
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Chromium Nitride (CrN)
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Long Reach
  • Helix Angle R45/46/44
  • Shank Form HA
  • Shank Tolerance h5
  • Point Tolerance k10
  • Item Type N (finishing)
  • Rake Angle 15
SKU: A0009360

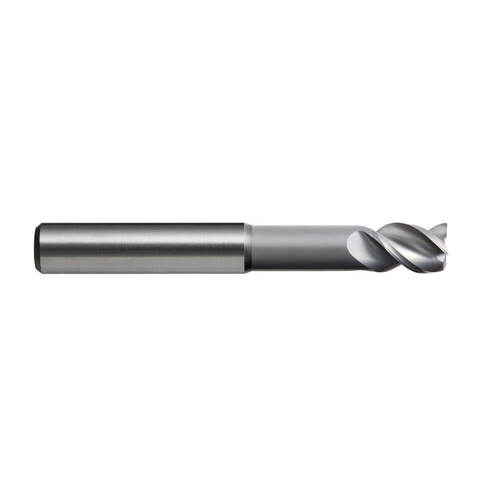

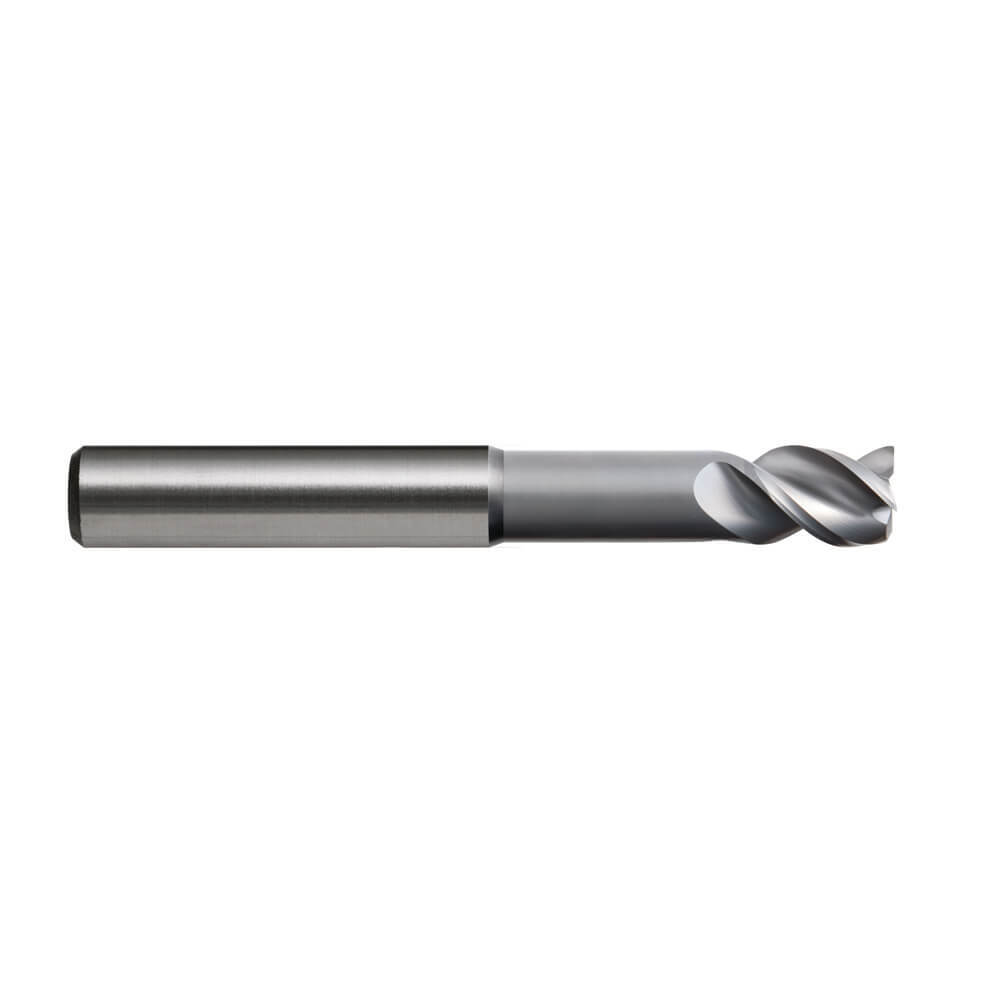

Sutton E4020800 8mm x 8mm 3 Flute Endmill - Carbide VHM Ultra CrN - Long

Sutton 3 Flute Endmills - R45/46/44 Al - Long - Harmony

$64.50
