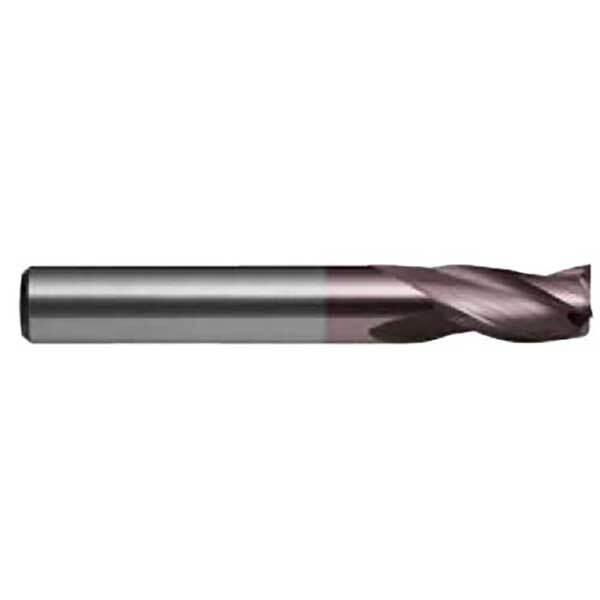

Sutton E6110250 2.5 x 38mm 3 Flute Endmill Carbide TiAlN Tecline - Sutton Tools

Description

3 Flute Endmill R30 N Regular Tecline

For precision milling of slots & cavities.
For precision universal milling application.
Suitable for materials up to 1600 N/mm2.
TiAlN for longer tool life.

Specifications

Material: VHM
Finish: TiAlN
Shank Form: HA
Helix Angle: R30
Shank Tolerance: h6

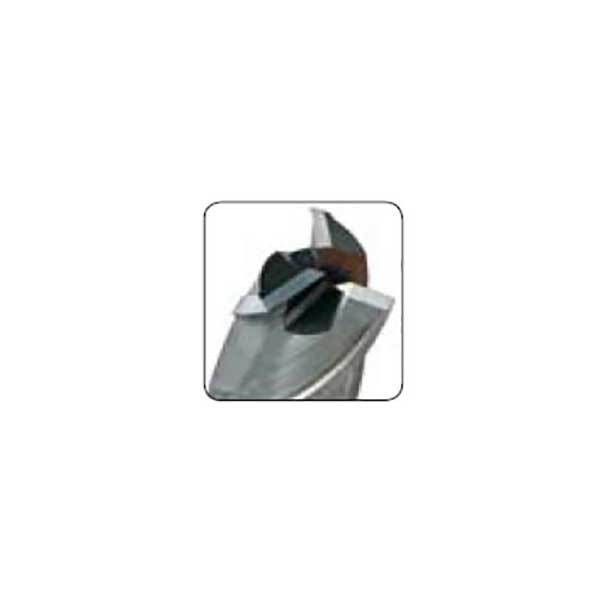

Point Form: Ballnose
Sutton Designation: N

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
Optimal for Steel - High alloy, cast & tool-200HB

Specifications

AIMS SKU A0129621

Brand Sutton Tools

Model Number E6110250

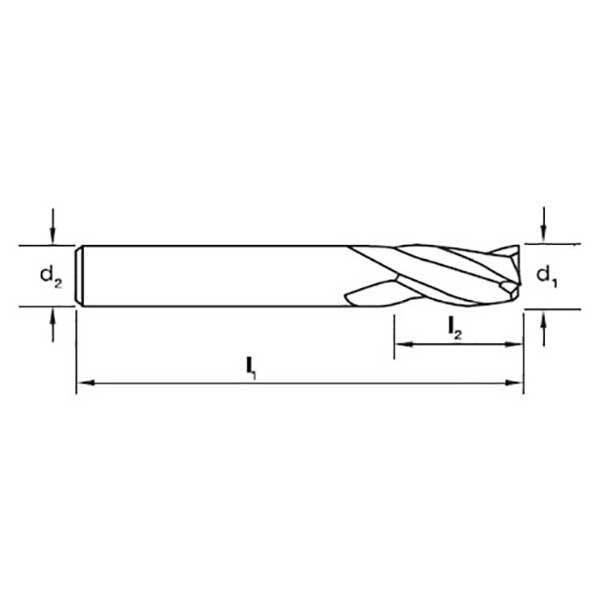

Cutting Tip (mm) 2.5

Overall Length (mm) 38

Shank (mm) 3

Flute Length (mm) 9.5

Shank Form HA

Shank Tolerance h6

Product Group B0214

Sutton Designation N

Geometry R30

Type Endmill Tecline
Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
Finish Titanium Aluminium Nitride (TiAIN)
Flutes 3
Group Code E611
