Description
Description
4 Flute Endmills - R35/38 UNI - Regular - Harmony
- Endmill, Regular, 4 Flute, R35/38, Harmony for high performance
- 35/38º variable flute helix for chatter-free milling
Specifications
Specifications
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R35/38
- Point Tolerance: e8
- Shank Tolerance: h6

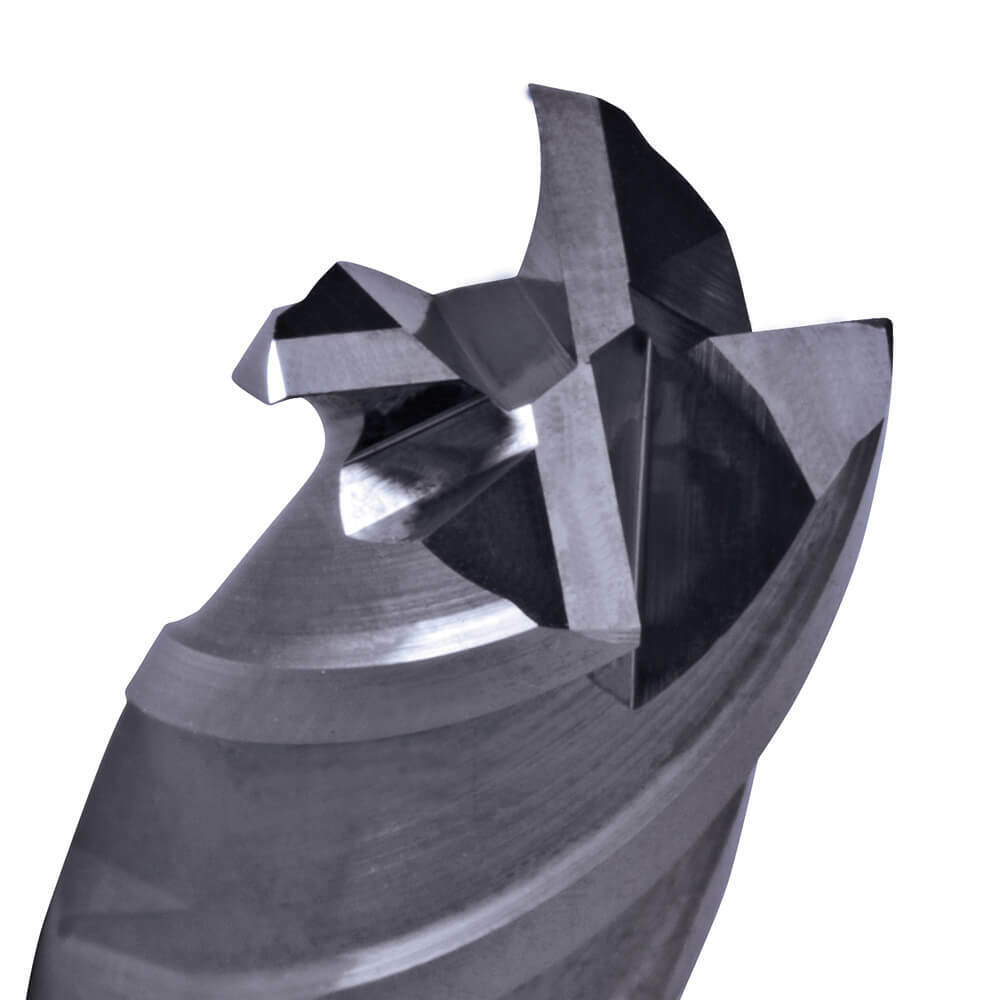

- Point Form: 45° Corner Radius
- Type: N (finishing)
- Rake Angle: 6
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
