Description
Description
Descriptions
- Ideal design for hard machining
- 4 Flute Endmill R50-VH for high performance
Specifications
Specifications

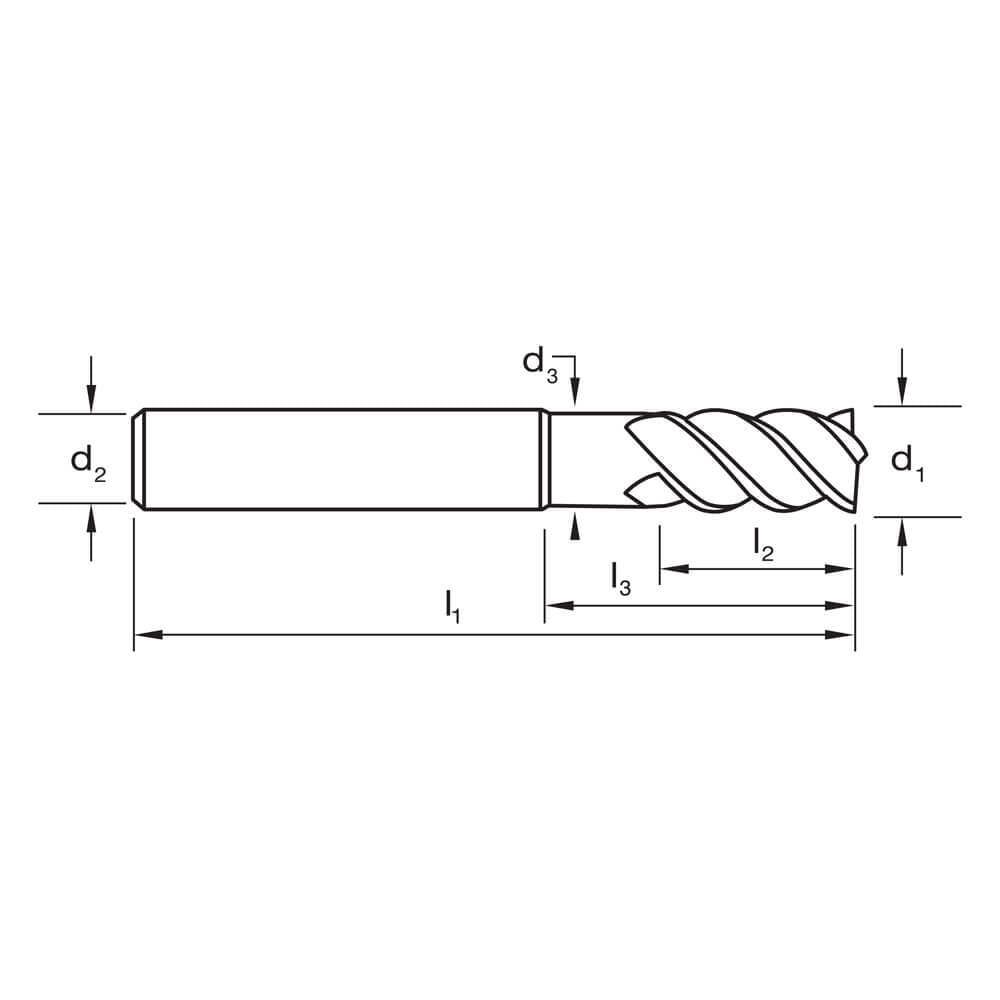

Dimensions
- d1 (mm): 6
- d2 (mm): 6
- d3 (mm): 5.5
- l1 (mm): 57
- l2 (mm): 13
- l3 (mm): 21
- Quantity: 1
Specifications
- Designation: VH
- Material: VHM-ULTRA
- Finish: Aldura
- Shank Form: HA
- Helix Angle: R50
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: 45° Corner Radius
- Type: N (finishing)
- Rake Angle: -14
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Hardened Steel – 55 HRC
- Optimal for Hardened Steel – 58 HRC
- Optimal for Hardened Steel – 62 HRC
- Optimal for Cast Iron – 55 HRC
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- Suitable for materials up to 63 HRC
- Dual stepped core for optimal stability
- Aldura for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

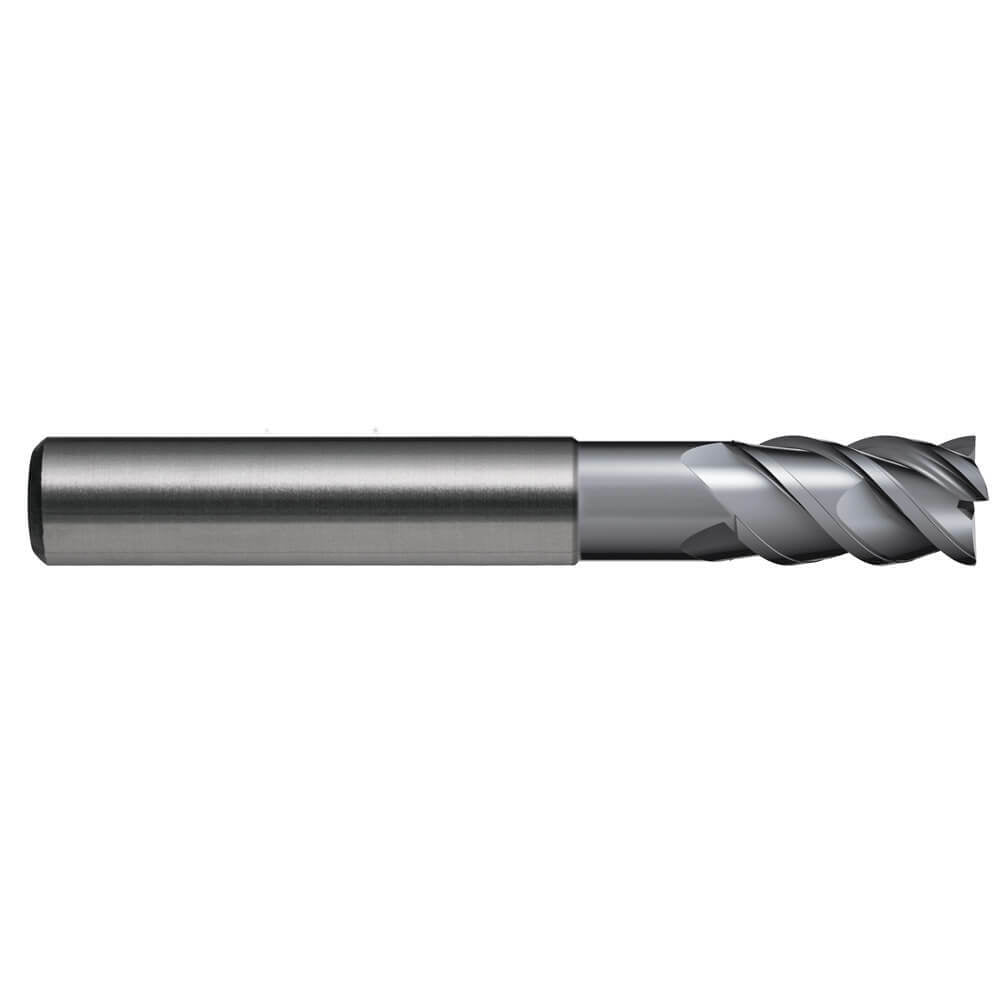

Sutton E566 Metric 4 Flute Endmill - VHM Ultra Aldura - Regular
Sutton E566 Metric 4 Flute Endmill - VHM Ultra Aldura - Regular
SKU: A0009918
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E566 Metric 4 Flute Endmill excels in hard machining tasks. It utilises a VHM-ULTRA grade of carbide, suitable for materials up to 63 HRC. Its dual stepped core and Aldura finish enhance stability and tool longevity.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Descriptions
- Ideal design for hard machining
- 4 Flute Endmill R50-VH for high performance
Specifications
Specifications
Dimensions
- d1 (mm): 6
- d2 (mm): 6
- d3 (mm): 5.5
- l1 (mm): 57
- l2 (mm): 13
- l3 (mm): 21
- Quantity: 1
Specifications
- Designation: VH
- Material: VHM-ULTRA
- Finish: Aldura
- Shank Form: HA
- Helix Angle: R50
- Point Tolerance: h10
- Shank Tolerance: h6
- Point Form: 45° Corner Radius
- Type: N (finishing)
- Rake Angle: -14
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Hardened Steel – 55 HRC
- Optimal for Hardened Steel – 58 HRC
- Optimal for Hardened Steel – 62 HRC
- Optimal for Cast Iron – 55 HRC
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- Suitable for materials up to 63 HRC
- Dual stepped core for optimal stability
- Aldura for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton E566 Metric 4 Flute Endmill - VHM Ultra Aldura - Regular
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton E566 Metric 4 Flute Endmill excels in hard machining tasks. It utilises a VHM-ULTRA grade of carbide, suitable for materials up to 63 HRC. Its dual stepped core and Aldura finish enhance stability and tool longevity. |
Regular price
From $59.51
Sale price
From $59.51
Regular price
Unit price
/per
| Sutton Tools |
Overall Length (mm)
57,63,72,83,92,104
Cutting Tip (mm)
6,8,10,12,14,16,20
|
Choose your option
Sutton E566 Metric 4 Flute Endmill - VHM Ultra Aldura - Regular
Sutton E566 Metric 4 Flute Endmill - VHM Ultra Aldura - Regular
SKU: A0009918
Hurry up, only 7 items left in stock.
The Sutton E566 Metric 4 Flute Endmill excels in hard machining tasks. It utilises a VHM-ULTRA grade of carbide, suitable for materials up to 63 HRC. Its dual stepped core and Aldura finish enhance stability and tool longevity.
