Description

Descriptions

  • Ideal design for hard machining
  • 4 Flute Endmill R50-VH for high performance

Features

  • VHM-ULTRA grade of carbide for high performance
  • Suitable for materials up to 63 HRC
  • Dual stepped core for optimal stability
  • Aldura for longer tool life

Specifications

  • Designation: VH
  • Material: VHM-ULTRA
  • Finish: Aldura
  • Shank Form: HA
  • Helix Angle: R50
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: 45° Corner Radius
  • Type: N (finishing)
  • Rake Angle: -14
  • Standard: DIN6527L

Applications

  • Optimal for Hardened Steel – 55 HRC
  • Optimal for Hardened Steel – 58 HRC
  • Optimal for Hardened Steel – 62 HRC
  • Optimal for Cast Iron – 55 HRC

Specifications

  • AIMS SKU A0009918
  • Brand Sutton Tools
  • Model Number E5660600
  • Barcode Number 9311963545530
  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 13
  • D3 (mm) 5.5
  • L3 (mm) 21
  • Group Code E566
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aldura
  • Flutes 4 Flute
  • Profile Corner Radius
  • Helix Angle R50
  • Item Type N (finishing)
  • Shank Form HA
  • Point Tolerance h10
  • Rake Angle 14
  • Shank Tolerance h6
SKU: A0009918

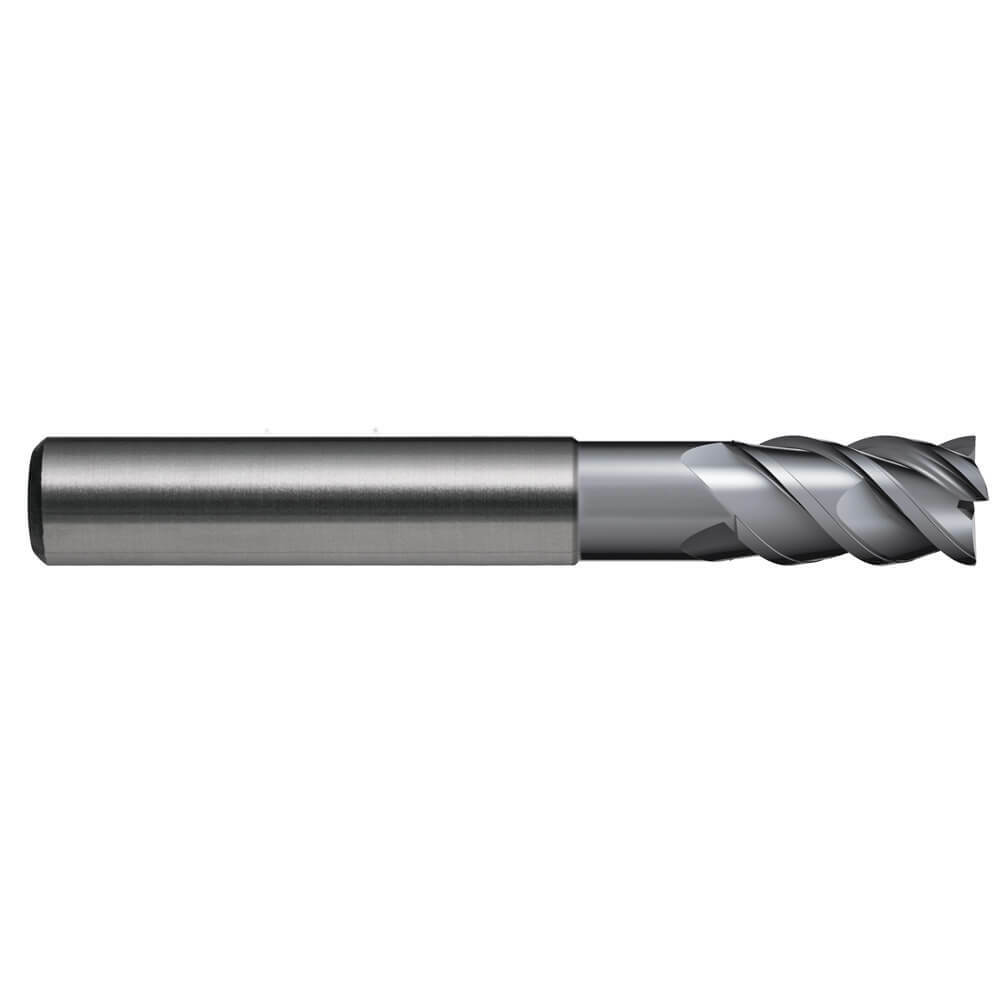

Sutton E5660600 6mm x 6mm 4 Flute Endmill - VHM Ultra Aldura - Regular

Sutton 4 Flute Endmills - R50 VH - Regular - Harmony DUO

$53.83
