Description

Description

  • For roughing applications

Features

  • NR geometry allows for heavy cuts
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: N
  • Material: VHM
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: js14
  • Shank Tolerance: h6
  • Point Form: 45° Corner Chamfer
  • Type: NR (coarse pitch)
  • Rake Angle: 8
  • Standard: DIN6527L

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

  • AIMS SKU A0009801
  • Brand Sutton Tools
  • Model Number E5470500
  • Barcode Number 9311963504681

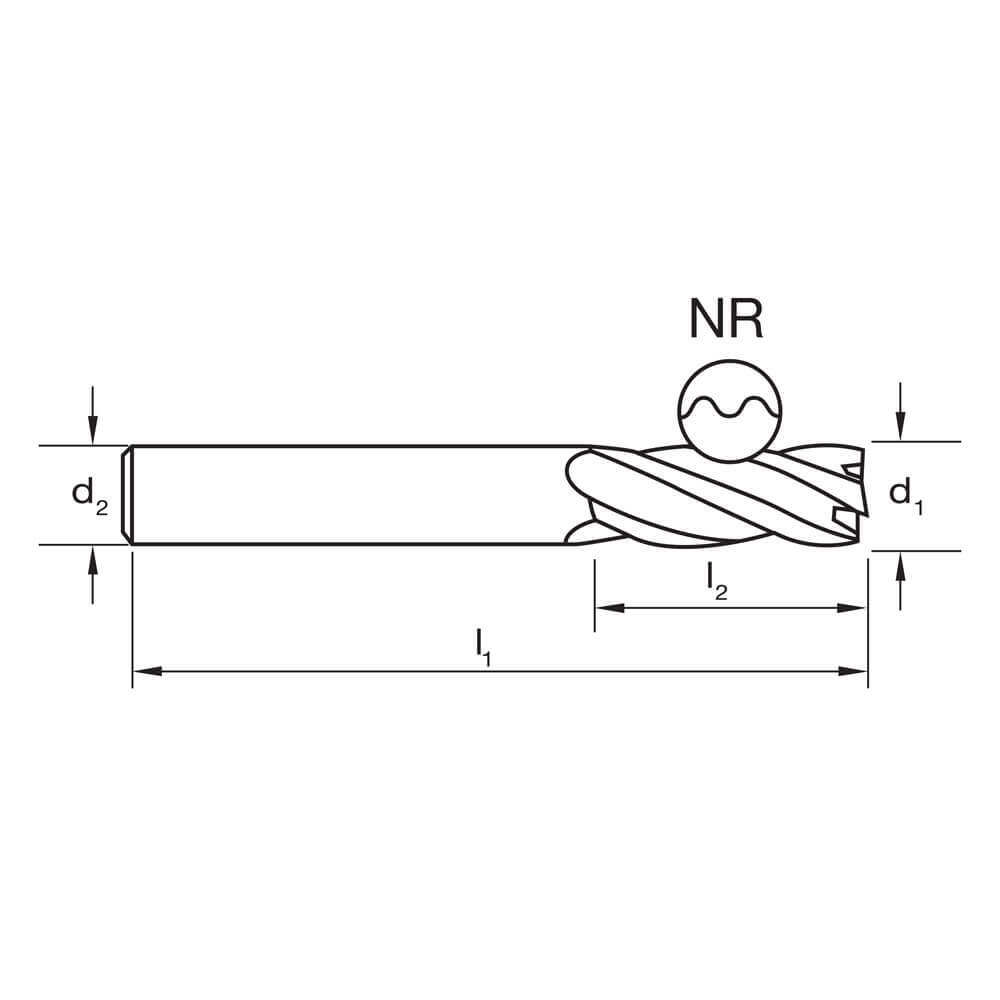

  • Cutting Tip (mm) 5
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 13
  • No. Of Flutes 3
  • Group Code E547
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Helix Angle R30
  • Item Type NR (coarse pitch)
  • Shank Form HA
  • Point Tolerance js14
  • Rake Angle 8
  • Shank Tolerance h6
SKU: A0009801

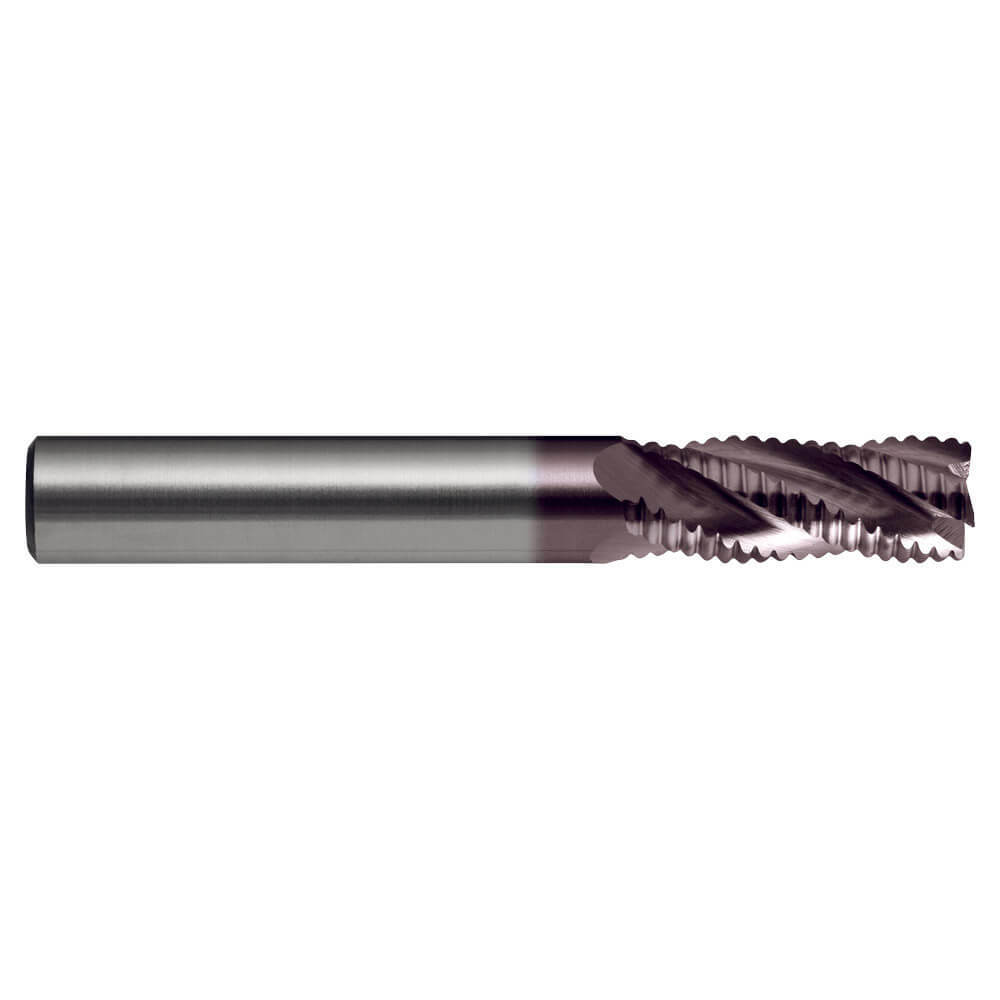

Sutton E5470500 5 x 6mm 3 Flute Roughing Endmill - Carbide AlCrN Regular

Roughers - NR (normal) - R30 N - Regular - Tecline

$59.26
