Description

Description

  • Universal use for slotting and finishing with the one tool

Features

  • Endmill, 3 Flute, R30 N, Short
  • Suitable for materials up to 1600 N/mm2

Specifications

  • Designation: N
  • Material: VHM
  • Finish: AlCrN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: DIN6527L

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic – 240 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Specifications

  • AIMS SKU A0009706
  • Brand Sutton Tools
  • Model Number E5150300
  • Barcode Number 9311963501994

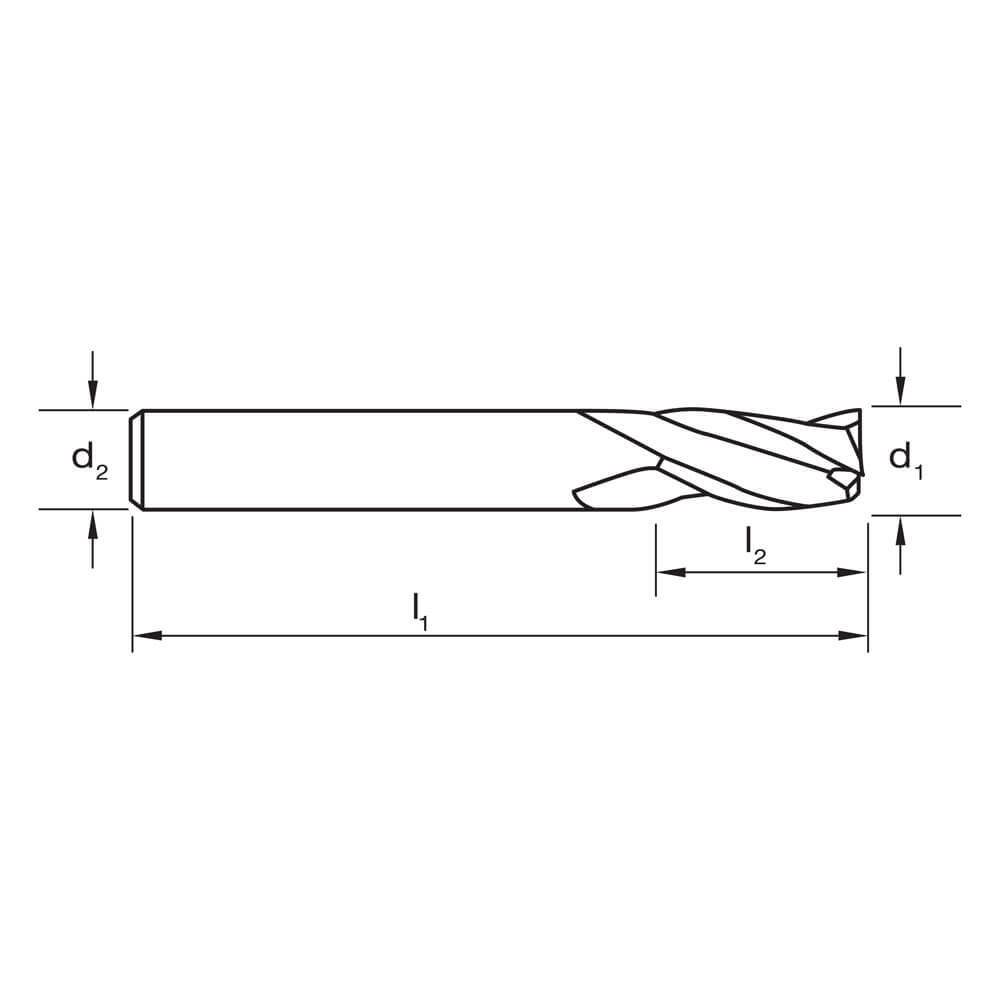

  • Cutting Tip (mm) 3
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 7
  • Group Code E515
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 3 Flute
  • Profile Square End
  • Reach Long
  • Helix Angle R30
  • Point Tolerance h10
  • Rake Angle 12
  • Shank Tolerance h6
  • Item Type N (finishing)
  • Shank Form HA
SKU: A0009706

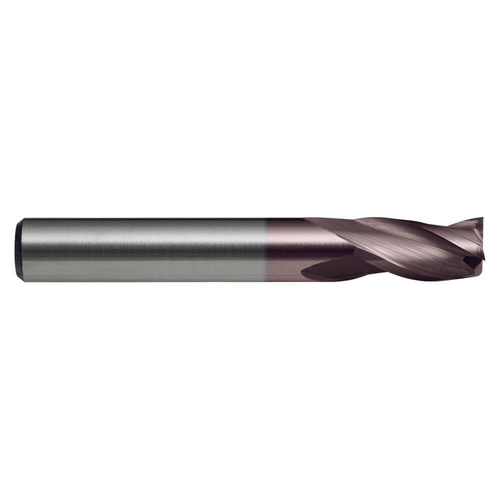

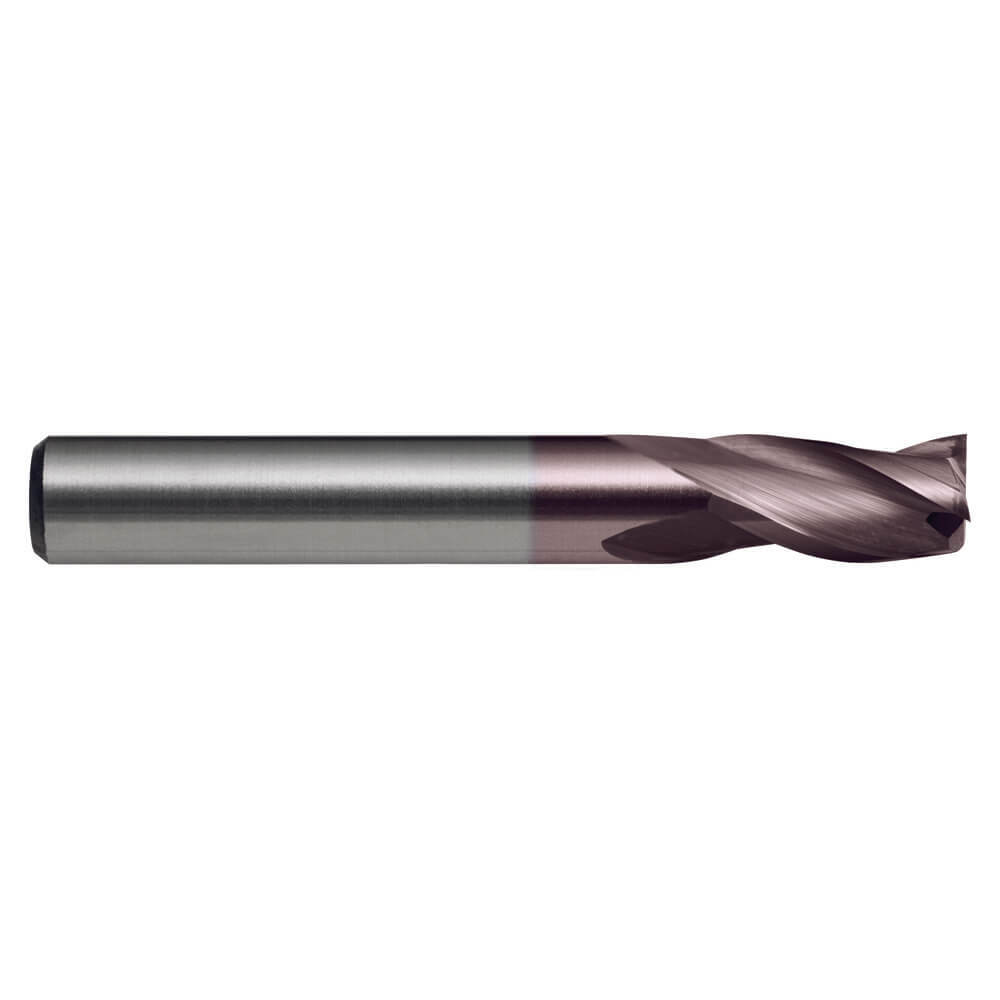

Sutton E5150300 3mm x 6mm 3 Flute Endmill - Carbide VHM AlCrN - Regular

Sutton 3 Flute Endmills - R30 N - Regular - Tecline
