Description

Sutton E480 3 Flute Carbide Endmill - Harmony

  • VHM-ULTRA grade of carbide for high performance.

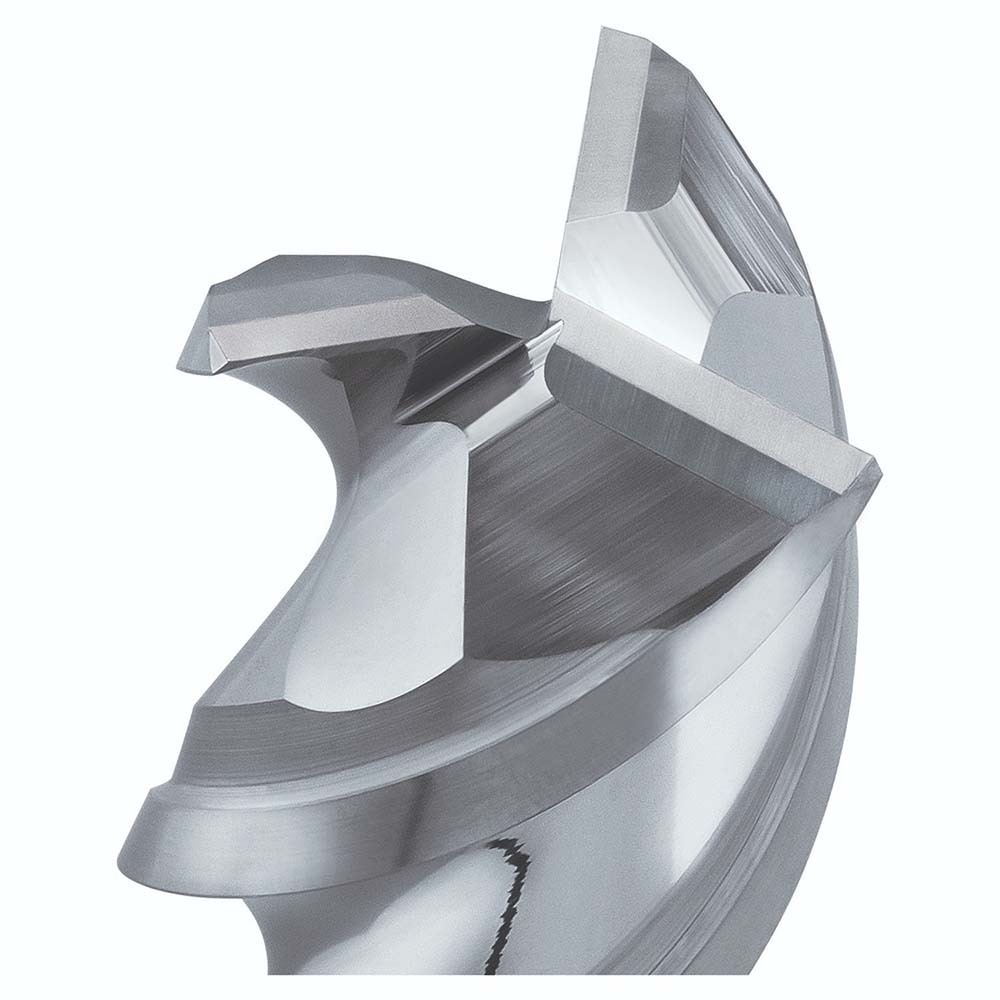

  • Variable flute helix for chatter free milling.
  • Optimised geometry for soft materials.

Specifications

  • Material: VHM-ULTRA
  • Surface Finish: Brt
  • Sutton Designation: Al
  • Geometry: R45/46/44
  • Shank Form (DIN 6535): HA
  • Shank Tolerance: h5

Specifications

  • AIMS SKU A0182960
  • Brand Sutton Tools
  • Model Number E4800600
  • Barcode Number 9311963632537

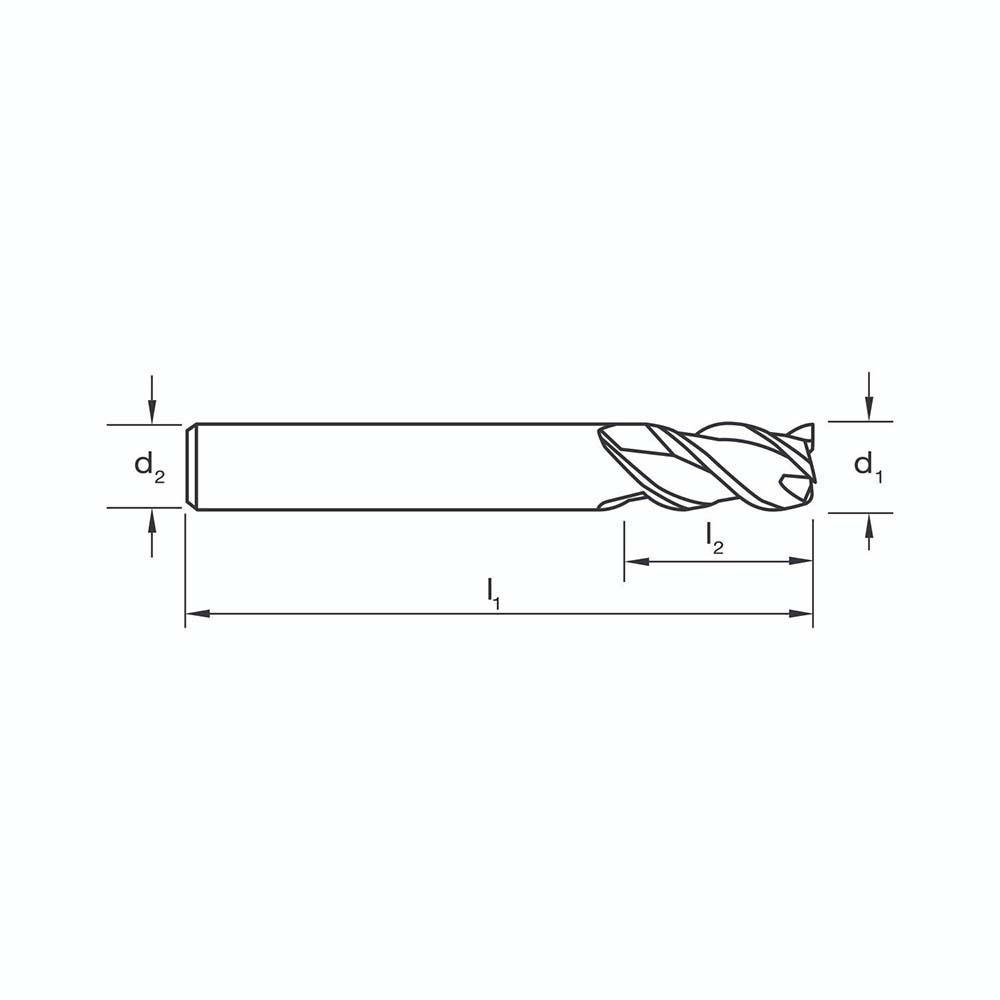

  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • D2 (mm) 6
  • L1 (mm) 57
  • Size 6 x 57mm
  • L2 (mm) 13
  • D3 (mm) 5.1
  • L3 (mm) 21
  • Chamfer 0.08/0.12 x 45°
  • d1 6mm
  • Type Endmill
SKU: A0182960

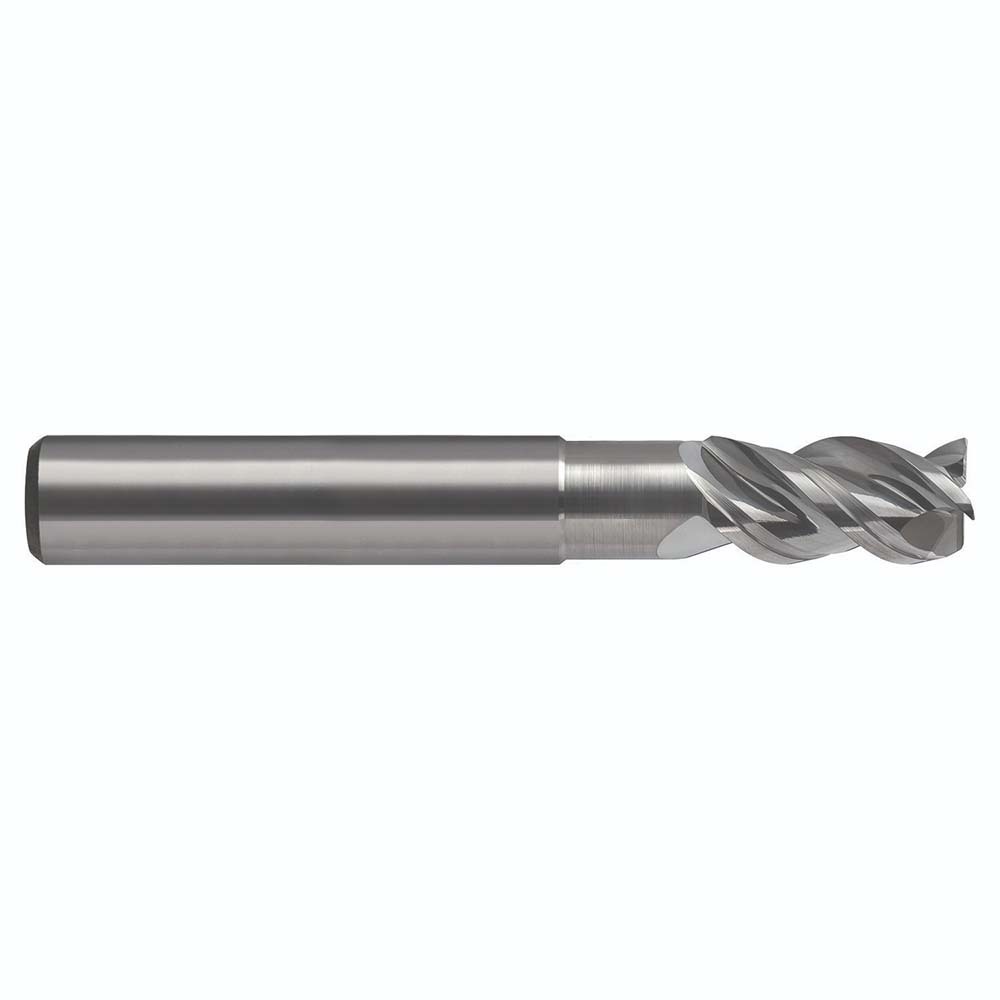

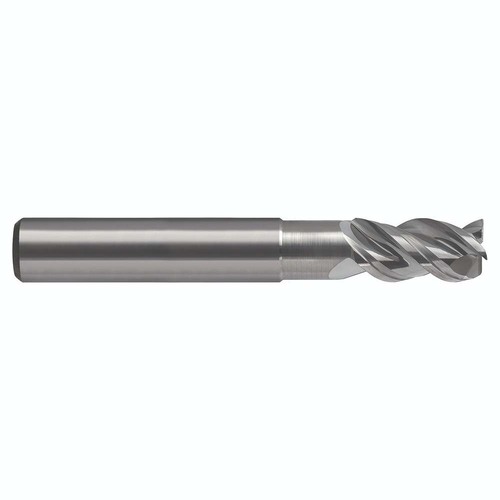

Sutton E4800600 6 x 57mm 3 Flute Carbide Endmill Bright

Sutton E480 - 3 Flute Carbide Endmill - Harmony

$41.50
