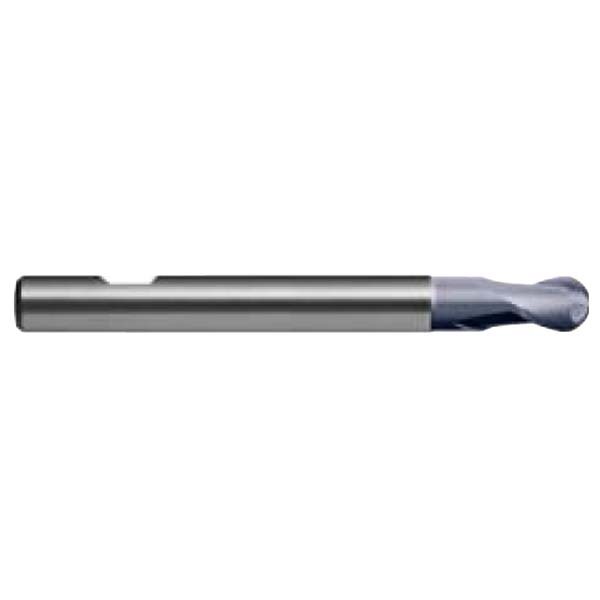

2 Flute Ball Nose Slot Drill - R30 UNI - Long Reach

• For profile & contour milling in long-reach applications

Features

• VHM-ULTRA grade of carbide for high performance
• Suitable for materials up to 1600 N/mm2
• AlCrN for longer tool life

Specifications

• Designation: UNI
• Material: VHM-ULTRA
• Finish: AlCrN
• Shank Form: HB
• Helix Angle: R30
• Shank Tolerance: h5

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-350HB
• Optimal for Steel - High alloy, cast & tool-200HBOptimal for Steel - High alloy, cast & tool-325HB
• Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
• Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
• Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
• Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
• Optimal for Cast Iron, Malleable - Ferritic-130HB
• Optimal for Cast Iron, Malleable - Pearlitic-230HB
• Optimal for High-temperature alloys - Fe based-280HB
• Optimal for High-temperature alloys - Ni / Co-based-250HB
• Optimal for High-temperature alloys - Ni / Co-based-350HB
• Optimal for High-temperature alloys - Ni / Co-based-350HB
• Optimal for High-temperature alloys - Ni / Co-based-320HB
• Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
• Optimal for Titanium & Titanium alloys - Beta alloys
