Description

Descriptions

  • Optimized geometry for stainless steels
  • Universal use for slotting and finishing with the one tool

Features

  • Endmill, 3 Flute, R55/54/56-VA, Long, Harmony for high performance
  • 55/54/56° variable flute helix for chatter free milling
  • Helica for superior wear resistance in stainless steel

Specifications

  • Designation: VA
  • Material: VHM-ULTRA
  • Finish: Helica
  • Shank Form: HA
  • Helix Angle: R55/54/56
  • Point Tolerance: e8
  • Shank Tolerance: h5
  • Point Form: 45° Corner Chamfer
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: DIN6527L

Applications

  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for High temperature alloys - Fe based – 280 HB
  • Optimal for High temperature alloys - Ni / Co based – 350 HB
  • Optimal for High temperature alloys - Ni / Co based – 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys

Specifications

  • AIMS SKU A0009392
  • Brand Sutton Tools
  • Model Number E4100300
  • Barcode Number 9311963552323
  • Cutting Tip (mm) 3
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 8
  • D3 (mm) 2.8
  • L3 (mm) 14
  • Group Code E410
  • System of Measurement DIN6527L,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Helica
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Long
  • Helix Angle R55/54/56
  • Point Tolerance e8
  • Rake Angle 12
  • Shank Tolerance h5
  • Item Type N (finishing)
  • Shank Form HA
SKU: A0009392

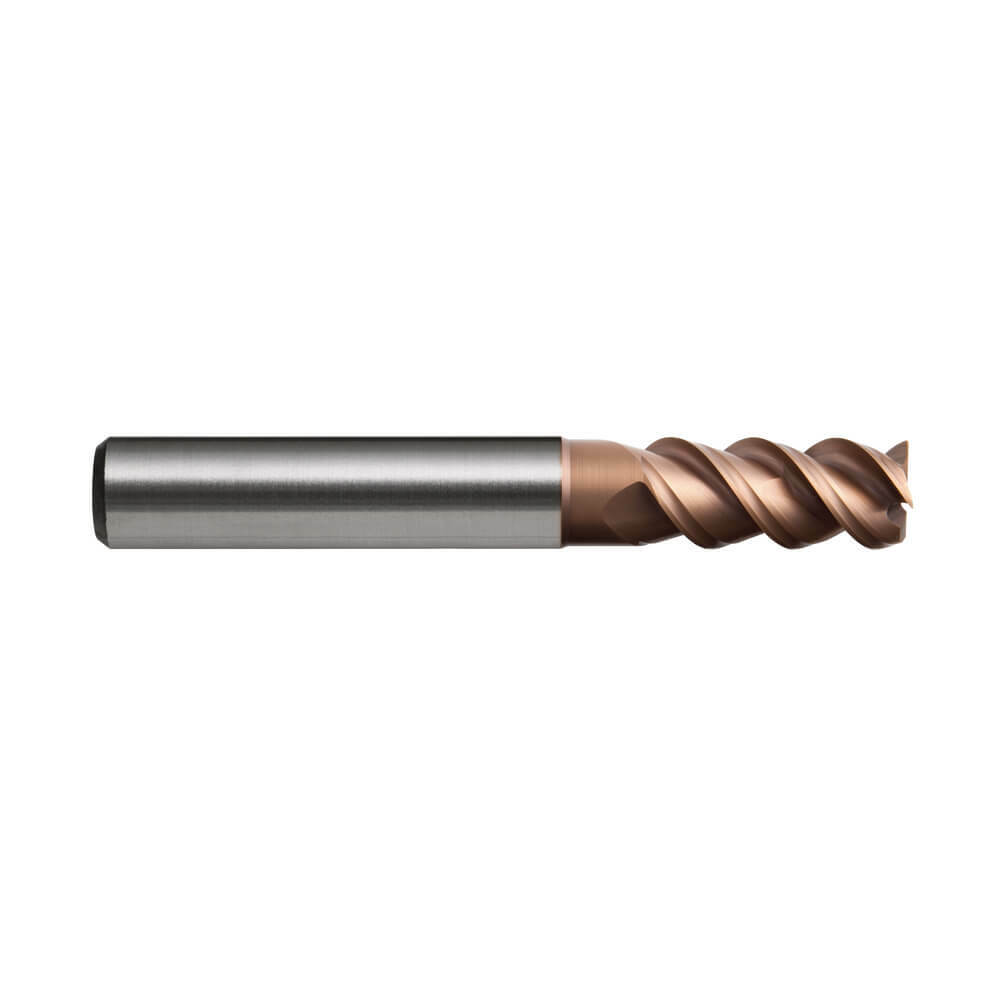

Sutton E4100300 3 x 6mm 3 Flute Endmill Carbide VHM Ultra Helica Regular

3 Flute Endmills - R55/54/56 VA - Regular - Harmony
