Description

Description

  • For long-reach finish milling applications

Features

  • 4 Flute Endmill R30 N
  • Suitable for materials up to 1300 N/mm2

Specifications

  • Designation: N
  • Material: VHM
  • Finish: TiAIN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6

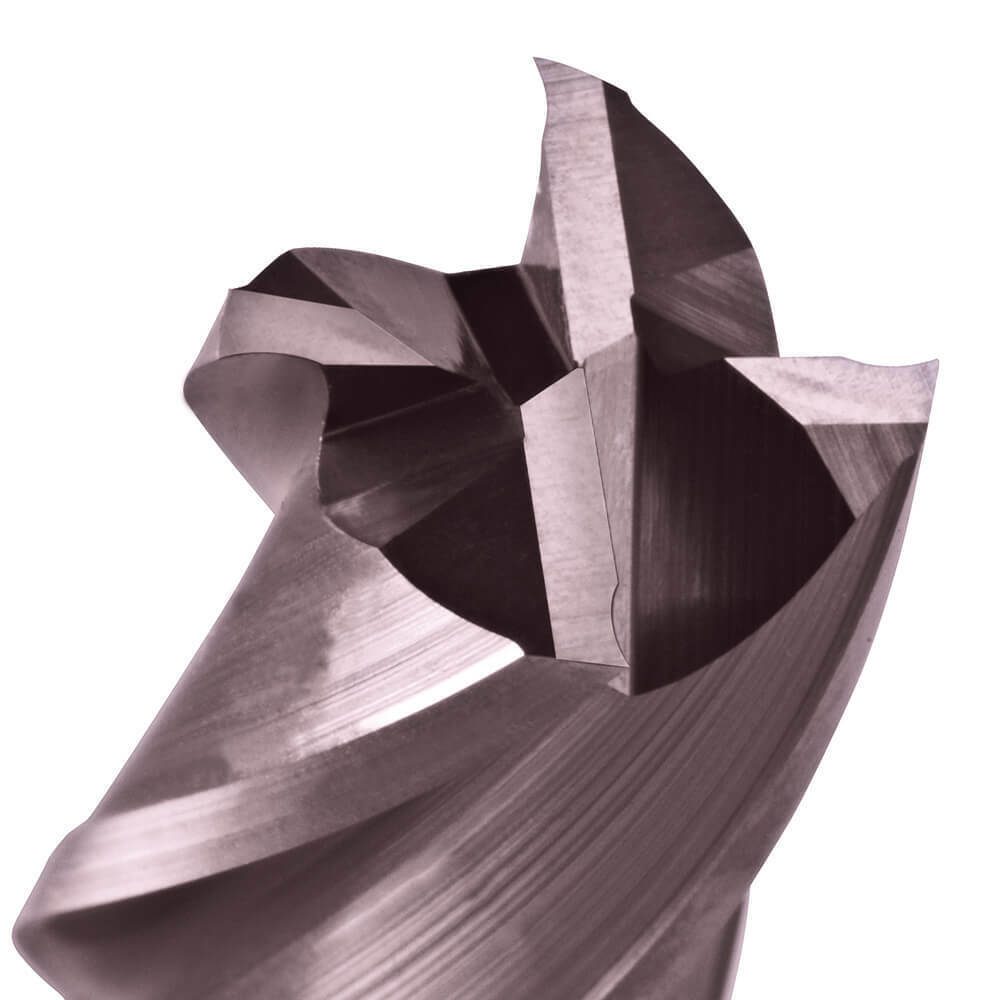

  • Point Form: Square End
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic – 200 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable - Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic – 230 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Cast Iron – Chilled – 400 HB

Specifications

  • AIMS SKU A0009273
  • Brand Sutton Tools
  • Model Number E3400300
  • Barcode Number 9311963436272

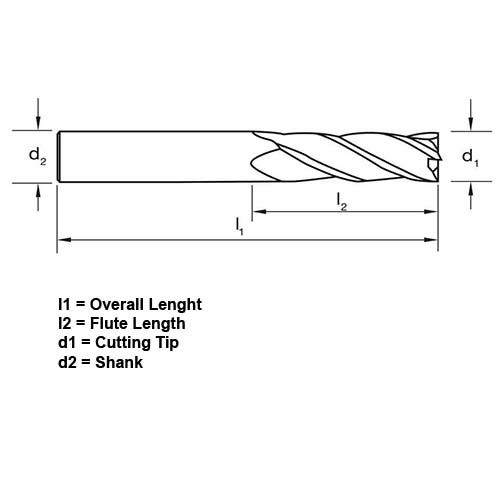

  • Cutting Tip (mm) 3
  • Overall Length (mm) 60
  • Shank (mm) 3
  • Flute Length (mm) 19
  • Group Code E340
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 4 Flute
  • Profile Square End
  • Reach Long
  • Helix Angle R30
  • Point Tolerance h10
  • Rake Angle 12
  • Shank Tolerance h6
  • Item Type N (finishing)
  • Shank Form HA
SKU: A0009273

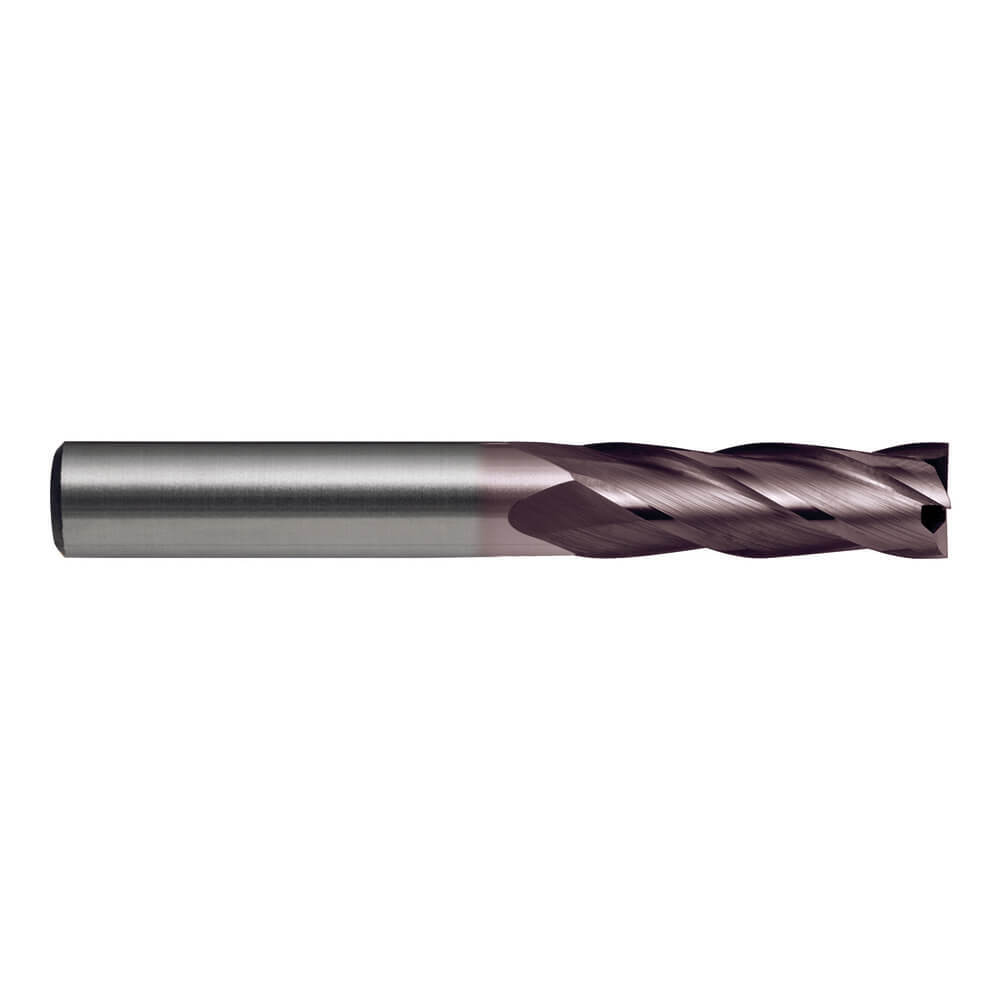

Sutton E3400300 3 x 3mm 4 Flute Endmill - Carbide VHM - AlCrN - Long

Sutton Tools 4 Flute Endmills - R30 N - Long - Tecline
