Description

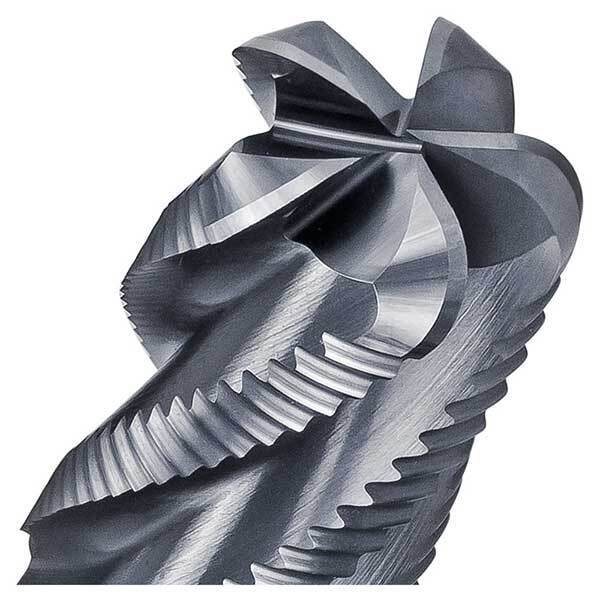

Sutton Rougher - HR (fine) - R30 VA - Corner Radius

  • SPM HSS with 11% Co, particulary suited to roughing or slotting of Titanium Alloy – TiAl6V4(DIN) / T-A6V (AFNOR) / AMS R56400 (UNS).

Features

  • Rougher, HR (fine) R30 VA, Regular offers superior performance
  • For roughing applications
  • HR geometry allows for heavy cuts, in stainless steel
  • Suitable for materials up to 1400 N/mm2
  • Particularly suitable for vdi grades 37.x

Specifications

  • Designation: VA
  • Material: SPM
  • Finish: AlCrN
  • Shank Form: B
  • Helix Angle: R30
  • Point Tolerance: js14
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: HR (fine pitch)
  • Standard: DIN844K

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C) - 300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements - 275HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements - 300HB
  • Optimal for Steel - High alloy, cast & tool - 200HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic - 240HB
  • Optimal for Stainless Steel - Austenitic - 180HB
  • Optimal for Stainless Steel - Duplex - 250HB

Specifications

  • AIMS SKU A0131118
  • Brand Sutton Tools
  • Model Number E2552040
  • Barcode Number 9311963613451

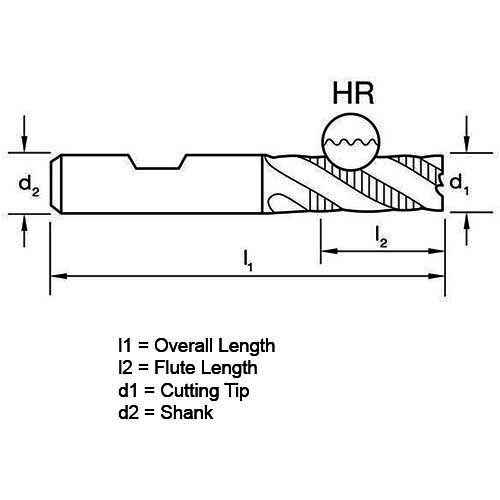

  • Cutting Tip (mm) 20
  • Overall Length (mm) 104
  • Shank (mm) 20
  • Flute Length (mm) 38
  • Helix Angle R30
  • Flute 5
  • Rad 4
  • Point Form Corner Radius
  • Sutton Designation VA
  • Point Tolerance js14
  • Shank Form B
  • Shank Tolerance h6
  • Type Rougher Endmill
  • System of Measurement DIN844K
  • Material SPM
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Group Code E255
  • Item Type HR (fine pitch)
SKU: A0131118

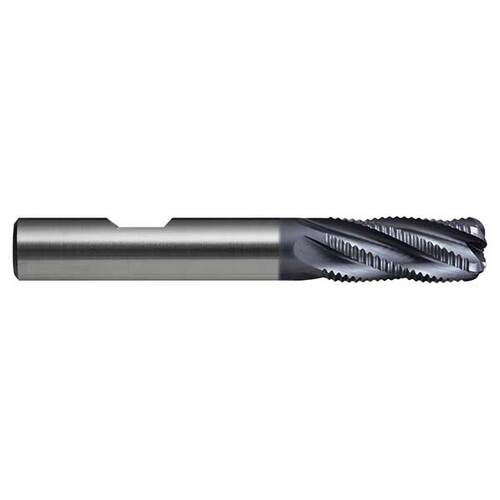

Sutton E2552040 20 x 104mm 5 Flute Corner Radius Roughing Endmill 4° - AlCrN

Sutton Rougher - HR (fine) - R30 VA - Corner Radius

$354.52
