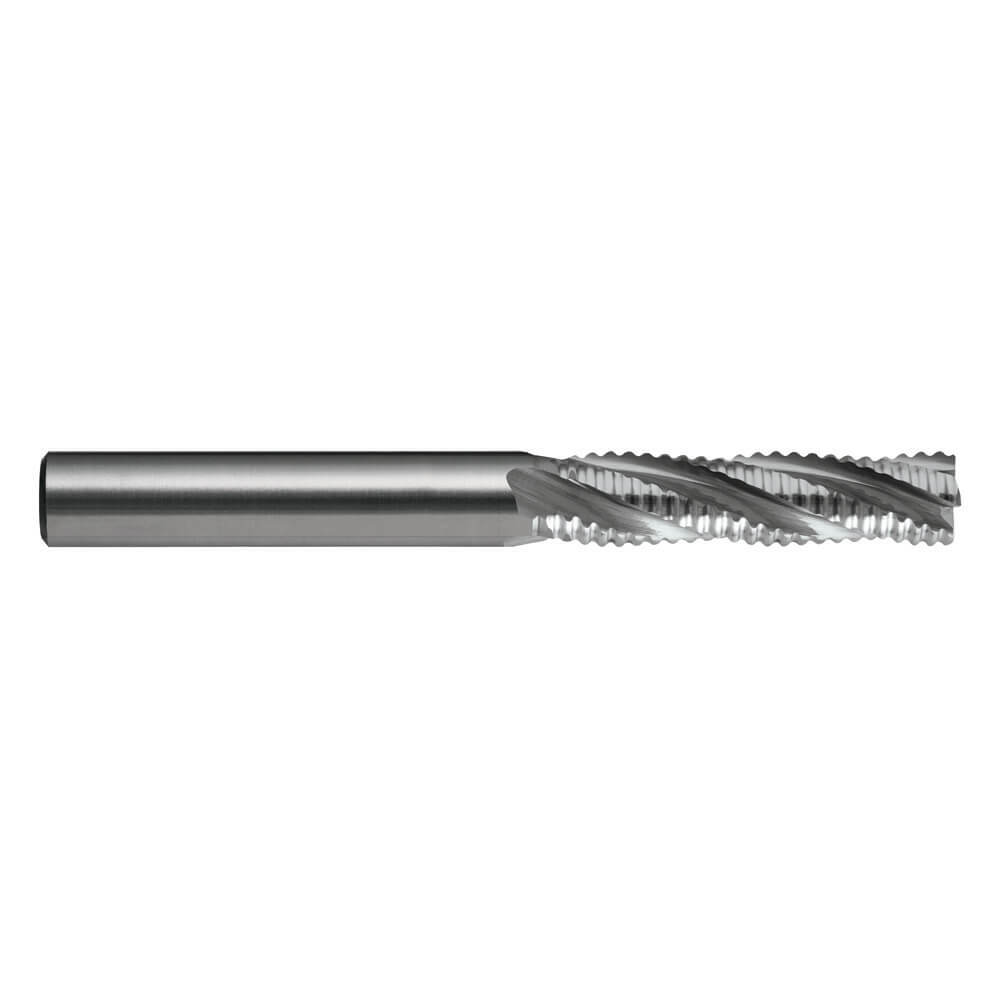

Sutton E1461270 1/2" x 1/2" 4 Flute Roughing Endmill - 8% Cobalt - Long

Description

Descriptions

For roughing applications
NR geometry allows for heavy cuts

Features

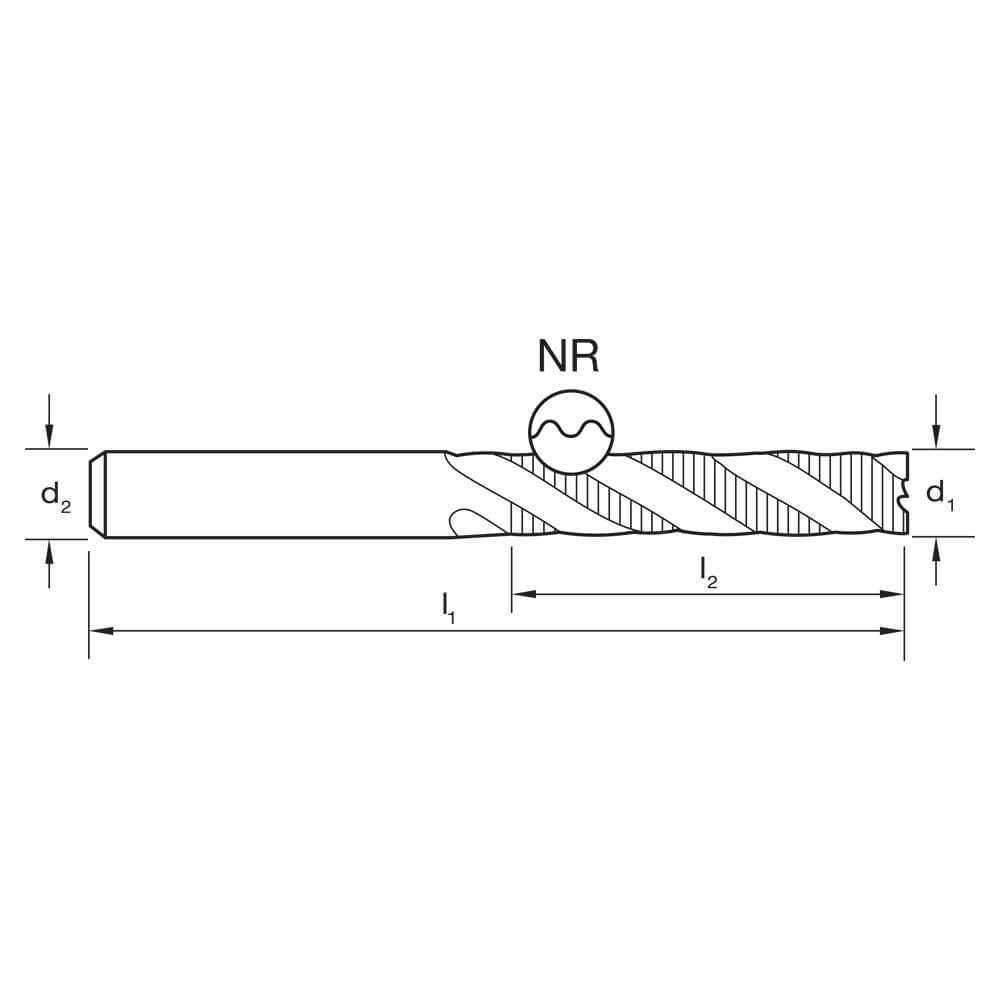

NR (normal) Rougher R30 WN
Suitable for materials up to 1000 N/mm2

Specifications

Designation: WN
Material: High Speed Steel Cobalt-8
Finish: Bright
Shank Form: A
Helix Angle: R30
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: NR (normal roughing)
Standard: DIN 844L

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB

Specifications

AIMS SKU A0008980

Brand Sutton Tools

Model Number E1461270

Barcode Number 9311963141183

Cutting Tip (inch) 1/2

Overall Length (inch) 4 5/16

Shank (inch) 1/2

Flute Length (inch) 2 1/16

No. Of Flutes 4

Group Code E146
System of Measurement DIN 844L,Imperial
Material High Speed Steel Cobalt (HSSE Co8%)
Finish Bright
Flutes 4 Flute
Profile 45 degree Corner Chamfer
Reach Regular
Helix Angle R30
Point Tolerance js14
Shank Tolerance h6
Item Type NR (normal roughing)
Shank Form A
