Description

Descriptions

  • For roughing applications
  • NR geometry allows for heavy cuts

Features

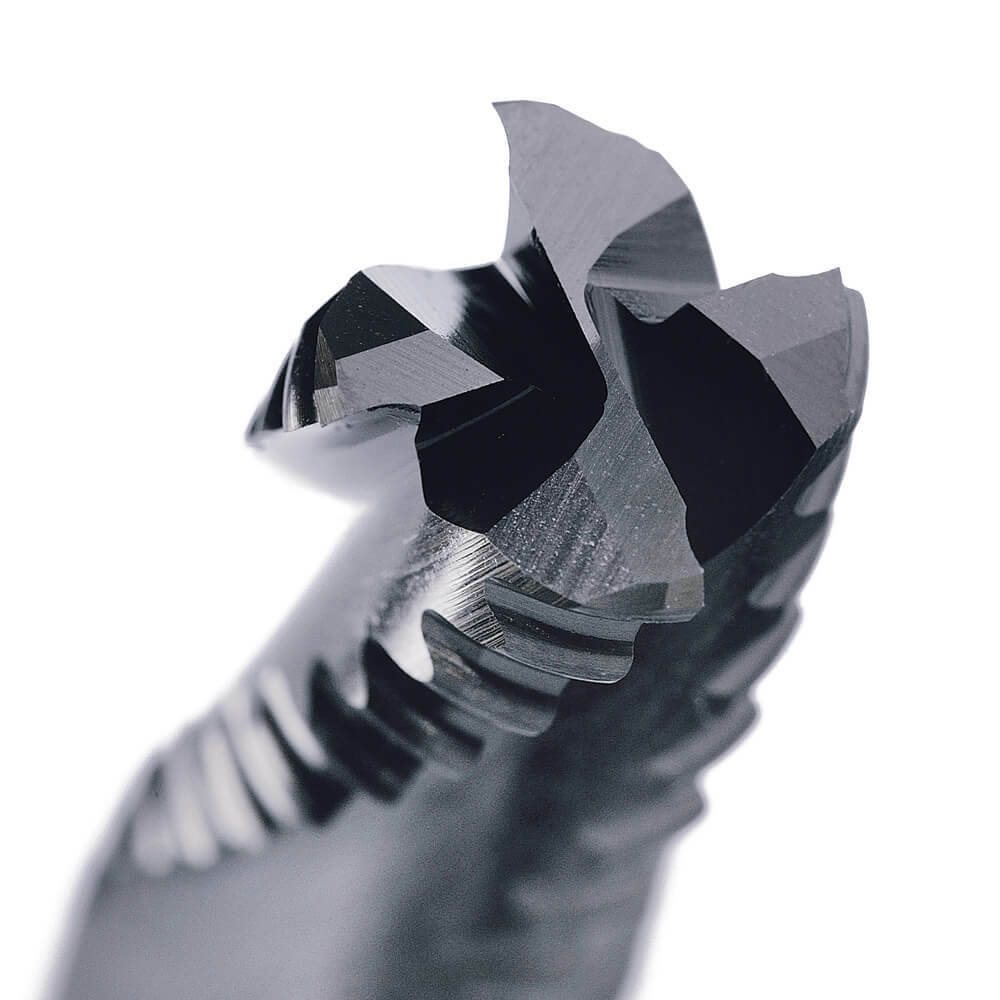

  • NR (normal) Rougher R30 WN
  • Suitable for materials up to 1000 N/mm2
  • TiCN for longer tool life

Specifications

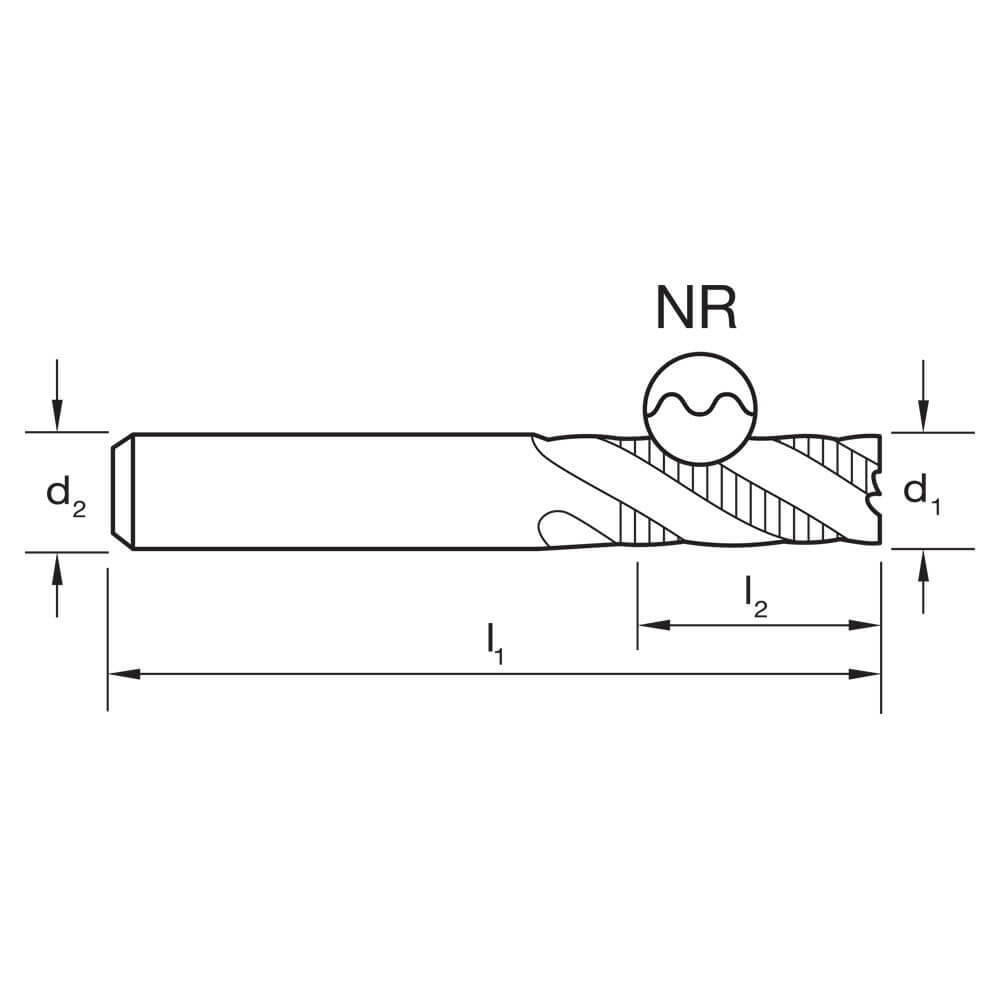

  • Designation: WN
  • Material: High Speed Steel Cobalt-8
  • Finish: TiCN
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: js14
  • Shank Tolerance: h6
  • Point Form: 45° Corner Chamfer
  • Type: NR (coarse pitch)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB

Specifications

  • AIMS SKU A0008963
  • Brand Sutton Tools
  • Model Number E1430600
  • Barcode Number 9311963195919
  • Cutting Tip (mm) 6
  • Overall Length (mm) 60
  • Shank (mm) 10
  • Flute Length (mm) 15
  • No. Of Flutes 3
  • Group Code E143
  • System of Measurement JIS,Metric
  • Material High Speed Steel Cobalt (HSSE Co8%)
  • Finish Titanium Carbonitride (TiCN)
  • Flutes 3 Flute
  • Profile 45 degree Corner Chamfer
  • Reach Regular
  • Helix Angle R30
  • Point Tolerance js14
  • Shank Tolerance h6
  • Item Type NR (coarse pitch)
  • Shank Form A
SKU: A0008963

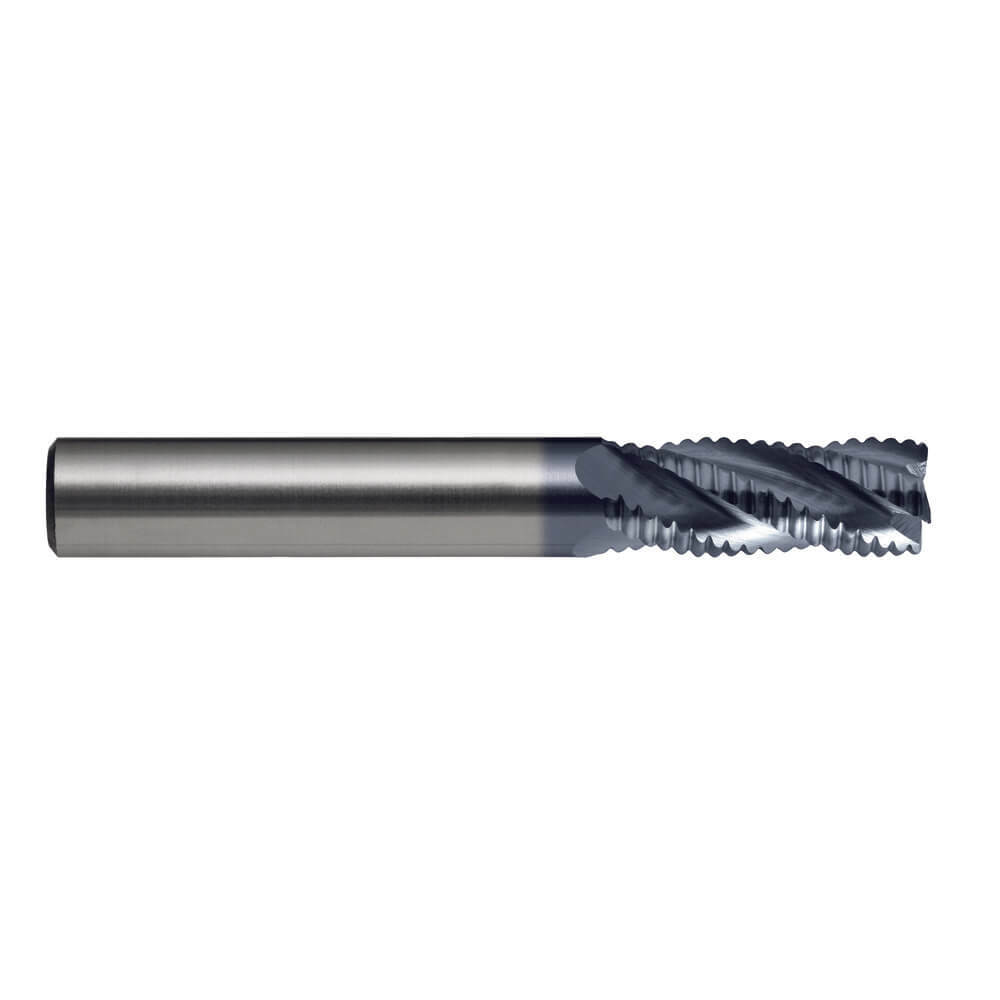

Sutton E1430600 6 x 10mm 3 Flute Roughing Endmill 8% Cobalt TiCN Regular

Sutton Tools Roughers - NR (Normal) - R30 WN - Regular

$116.73
