Description

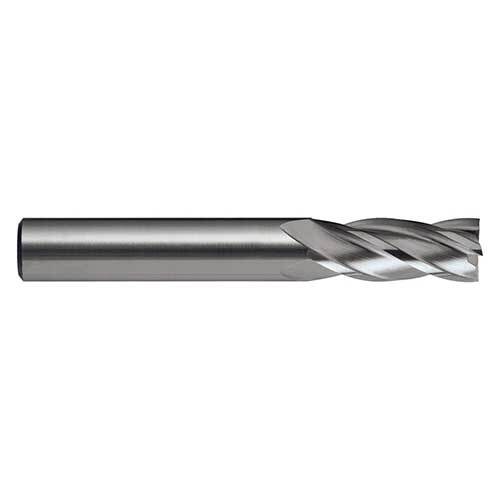

Sutton Tools 4 Flute Endmill - R30 N - Regular

  • For precision finish milling applications

Features

  • 4 Flute Endmill R30 N
  • Suitable for materials up to 1000 N/mm2

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: k9
  • Shank Tolerance: h6

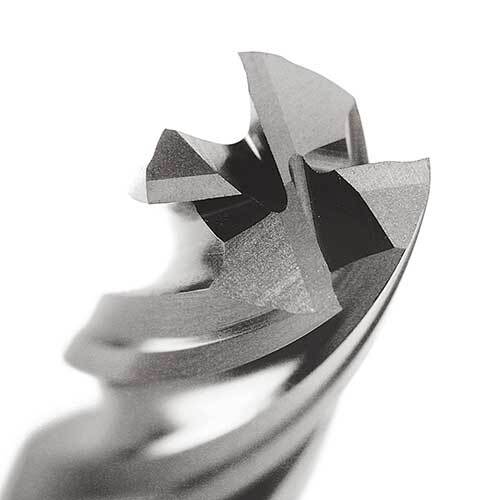

  • Point Form: Square End
  • Type: N (finishing)
  • Standard: JIS

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB

Specifications

  • AIMS SKU A0131809
  • Brand Sutton Tools
  • Model Number E1252223
  • Barcode Number 9311963144368
  • Type Endmill
  • Designation N
  • System of Measurement JIS
  • Material High Speed Steel Cobalt (HSSE Co8%)

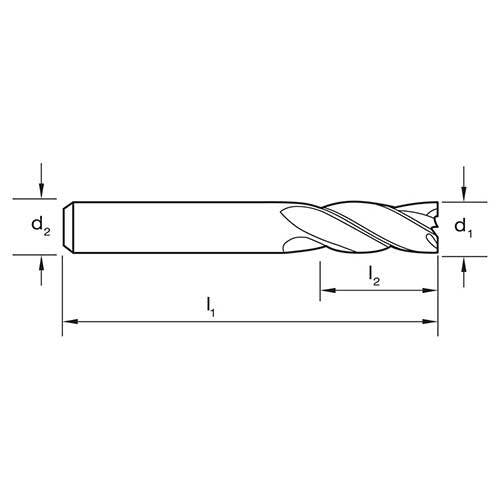

  • Cutting Tip (inch) 7/8
  • Overall Length (inch) 4-5/16
  • Overall Length (mm) 110
  • Shank (inch) 3/4
  • Flute Length (inch) 1-3/4
  • Flute Length (mm) 44.5
  • Helix Angle R30
  • Shank Tolerance h6
  • Shank Form A
  • Flute 4
  • Point Form Square End
  • Group Code E125
  • Item Type N (finishing)
  • Point Tolerance k9
  • Surface Finish Bright (Brt)
SKU: A0131809

Sutton E1252223 7/8 x 4-5/16" 4 Flute Endmill - 8% Cobalt Steel - Regular

Sutton Tools 4 Flute Endmill - R30 N - Regular

$258.01
RRP $325.58
SAVE $67.57 (21%)
