Description

Descriptions

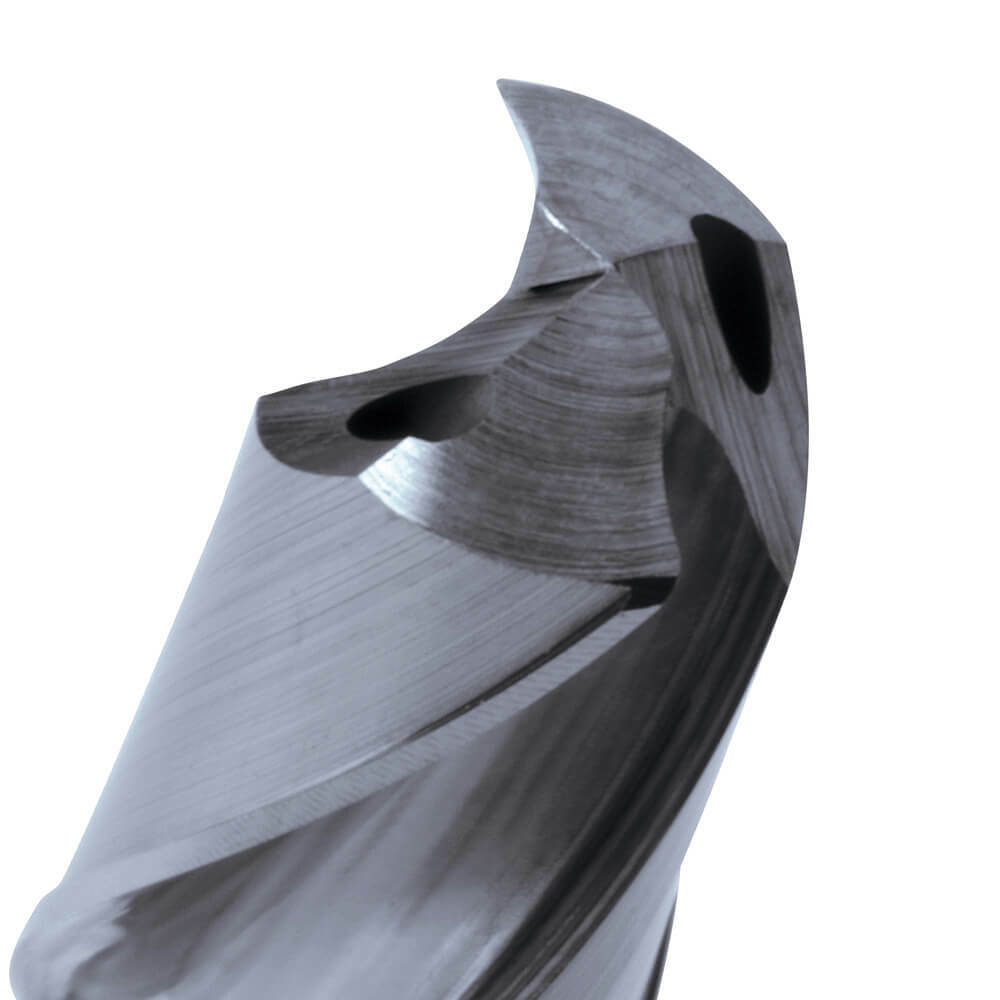

  • 5xD Drill R30 N
  • Suitable for materials up to 1400N/mm2

Features

  • Strong core
  • Micro geometry & surface conditioning for optimal chip control
  • AlCrN for maximum tool life

Specifications

  • Designation: N
  • Material: VHM
  • Finish: AlCrN
  • Maximum Cut Depth: 5XD
  • Shank Form: HA
  • Helix Angle: R30 - IK
  • X: ru
  • Point Tolerance: m7
  • Shank Tolerance: h6
  • Point Type: 140° Form C
  • Cutting Edges: ul
  • Standard: DIN 6537

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast – Martensitic- 240 HB
  • Optimal for Stainless Steel - Precipitation Hardening – 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) – Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) – Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable - Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Hardened Steel – 45 HRC
  • Optimal for Cast Iron - Chilled- 400 HB
SKU: A0007729

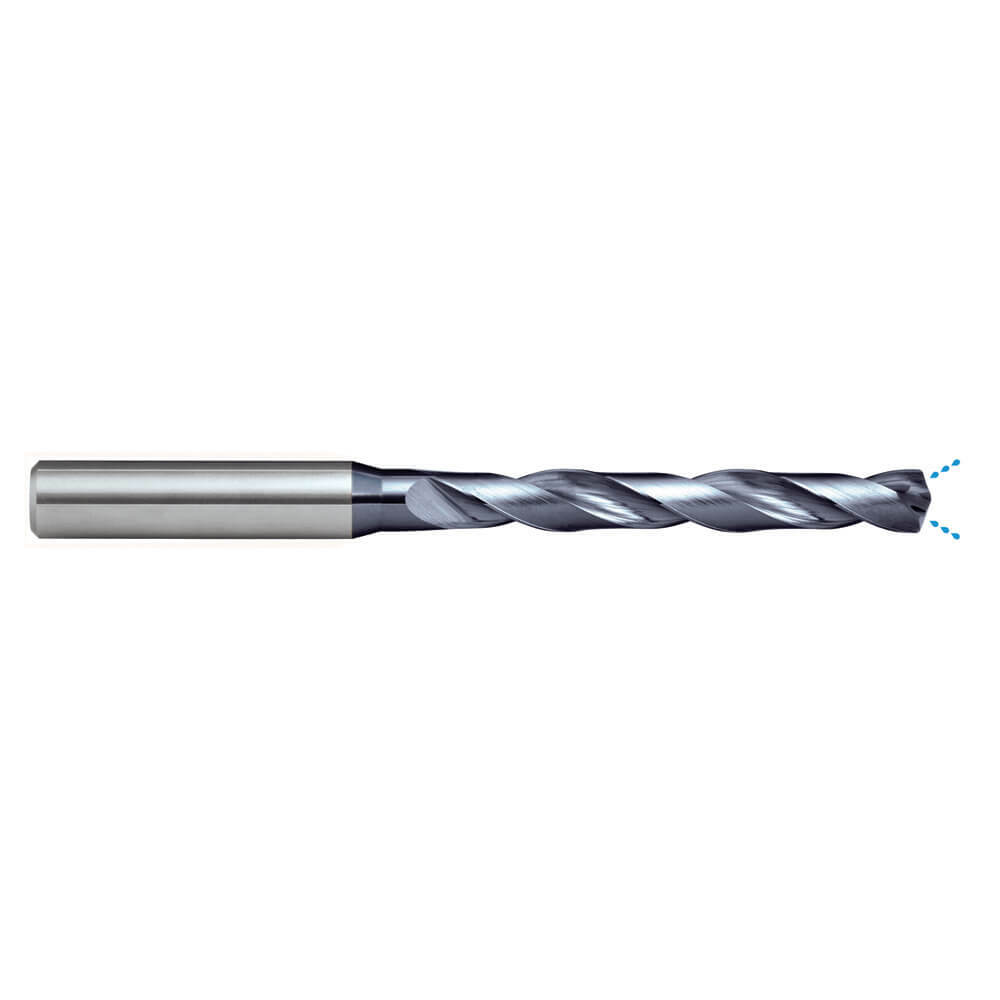

Sutton D3321180 11.8mm Carbide Drill Bit - 5xD - R30 N IK - VHM - AlCrN

Sutton Tools Carbide Bits - 5xD - R30 N - IK

$220.52

How it works.

Make 4 payments of $55.13 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0007729
  • Brand Sutton Tools
  • Model Number D3321180
  • Barcode Number 9311963467108

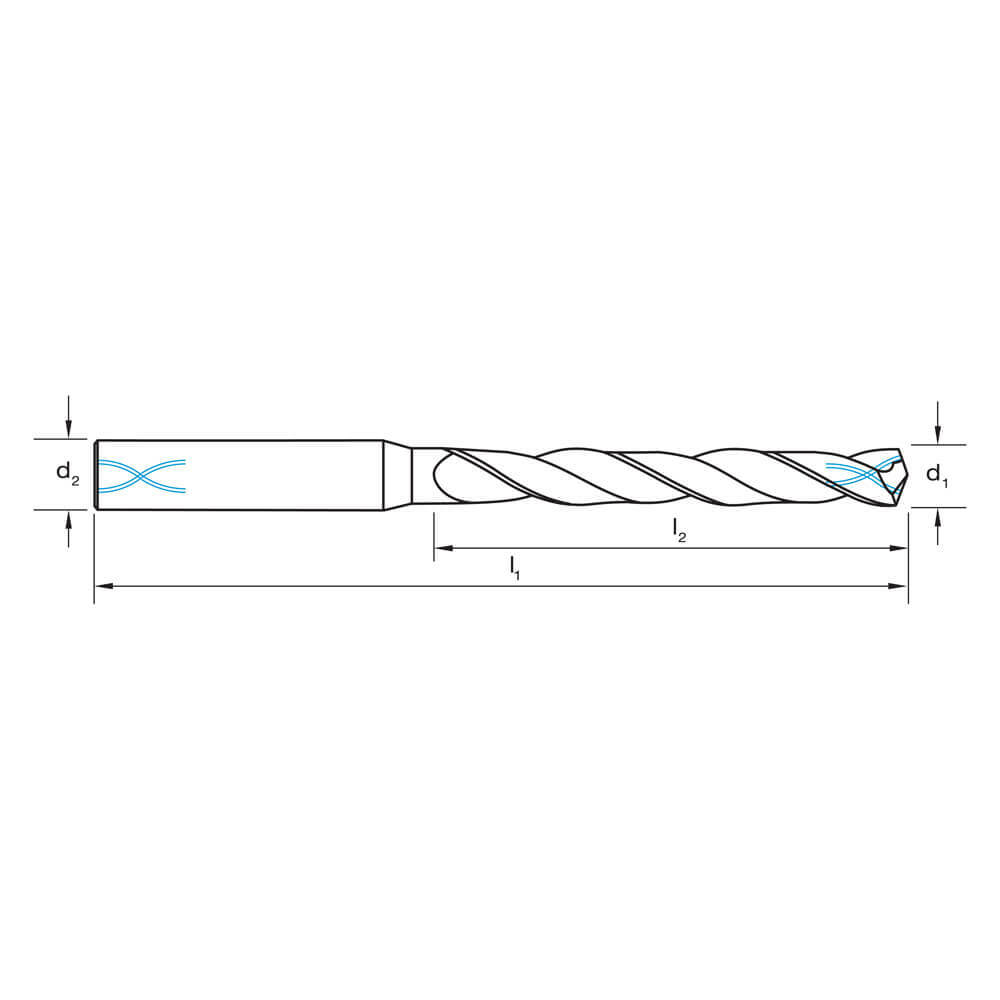

  • Thread Diameter (mm) 11.8
  • Overall Length (mm) 118
  • Shank (mm) 12
  • Flute Length (mm) 71
  • Group Code D332
  • Type Carbide Drill Bit
  • System of Measurement DIN 6537,Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Helix Angle R30 - IK
  • Shank Tolerance h6
  • Shank Form HA
  • Maximum Cut Depth 5XD
  • Point Tolerance m7
  • Point Form 140 Form C
