Description

Descriptions

  • Rigid twist drill

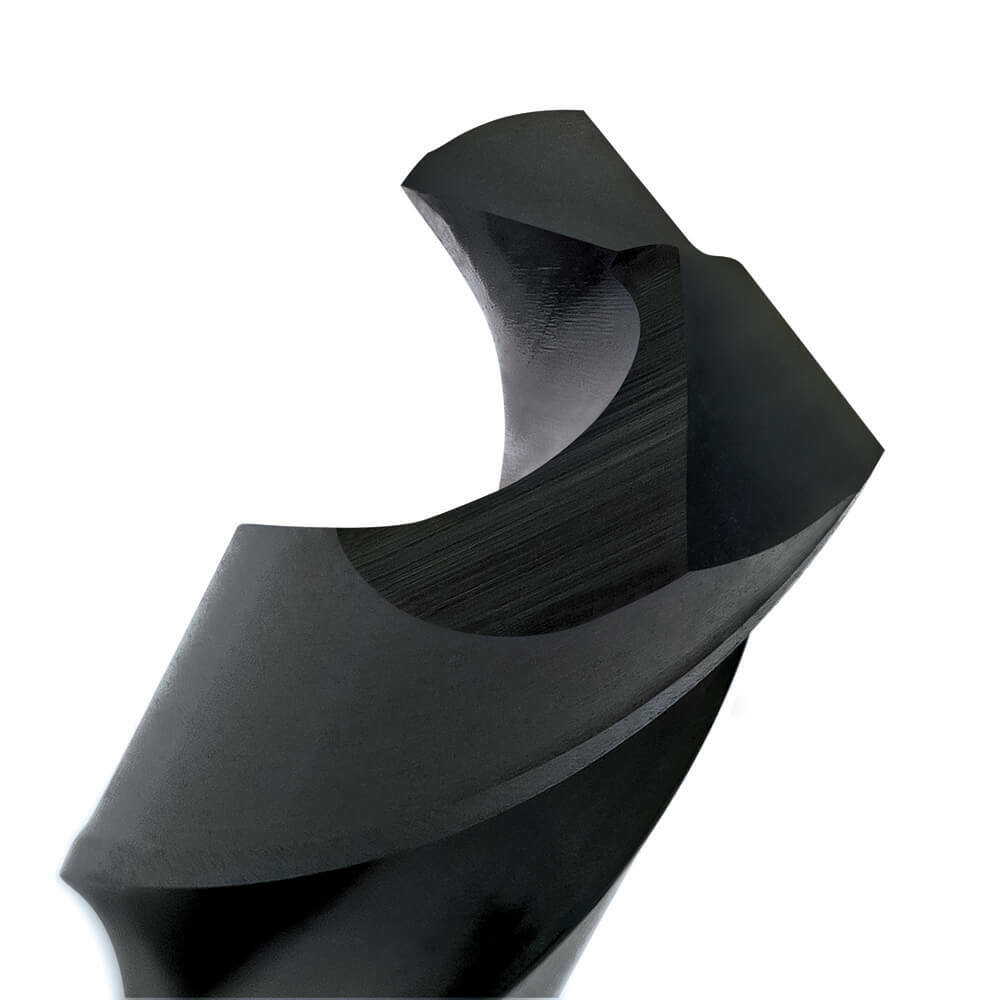

  • Self-centering point geometry

Features

  • Stub Drill Blu
  • For use in automatic lathes & hand drilling machines

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blu
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form C > 3mm
  • Cutting Edges: ul
  • Standard: DIN 1897

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB

Specifications

  • AIMS SKU A0006485
  • Brand Sutton Tools
  • Model Number D1860160
  • Barcode Number 9311963506029

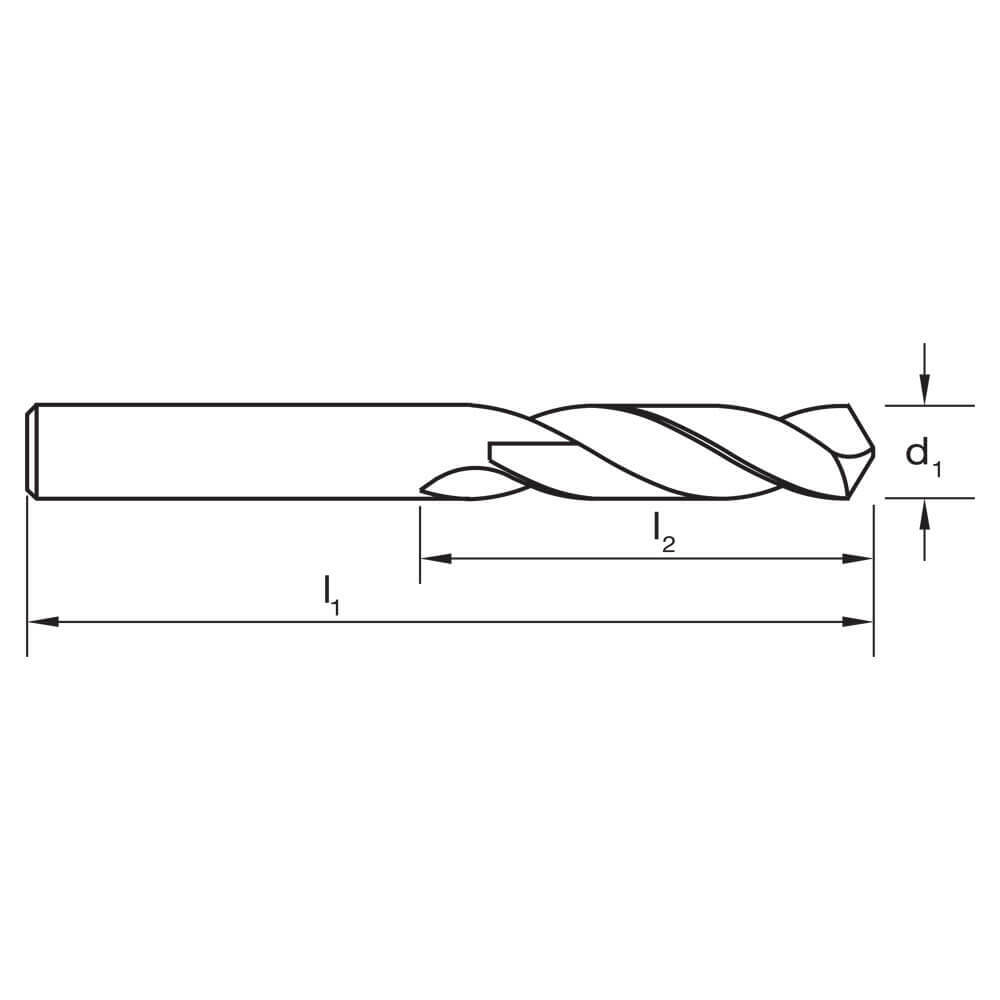

  • Thread Diameter (mm) 1.6
  • Overall Length (mm) 34
  • Flute Length (mm) 10
  • Group Code D186
  • Type Stub Drill Bit
  • System of Measurement DIN 1897,Metric
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Shank Form A
  • Point Angle 118
  • Point Form Form C > 3mm
  • Maximum Cut Depth 3XD
  • Point Tolerance h8
SKU: A0006485

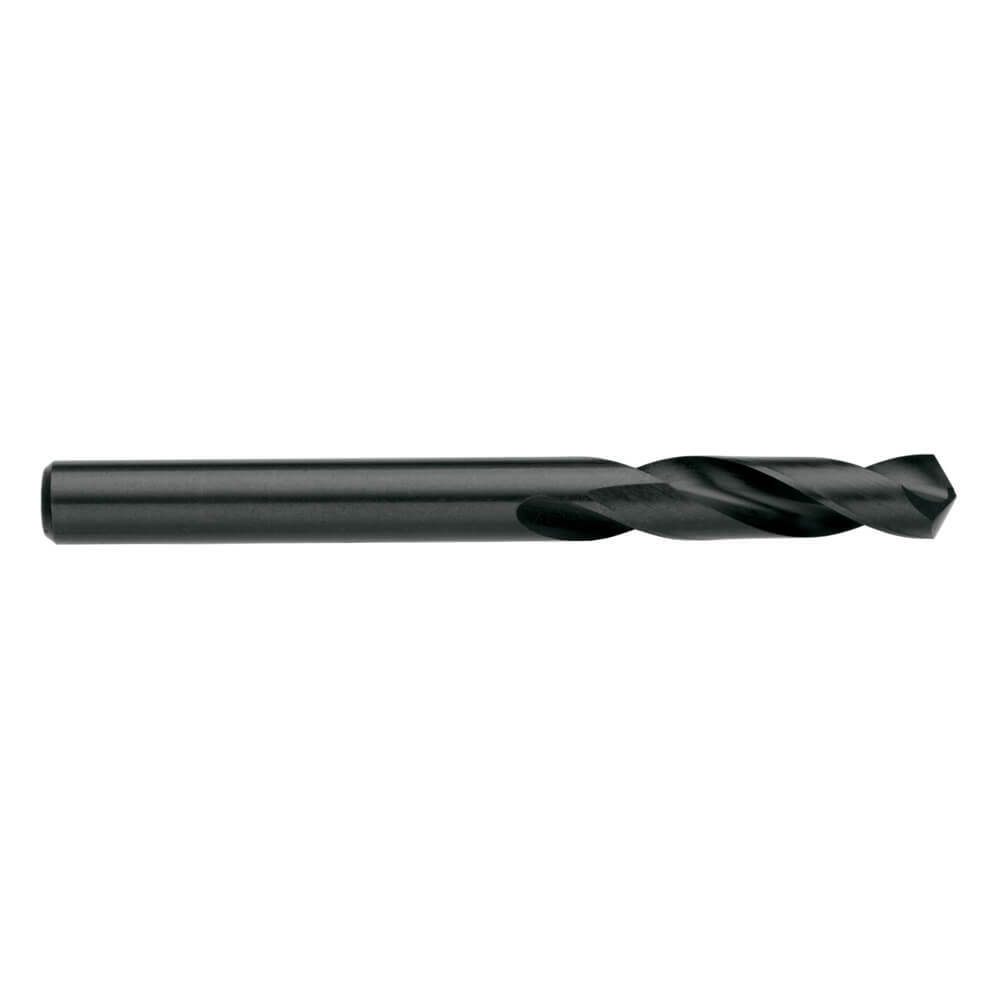

Sutton D1860160 1.6mm Stub Drill Bit - DIN1897 - HSS Blue - Pack of 10

Sutton Tools Stub Drill Bits - Blue Bullet

$30.46
RRP $49.39
SAVE $18.93 (38%)
